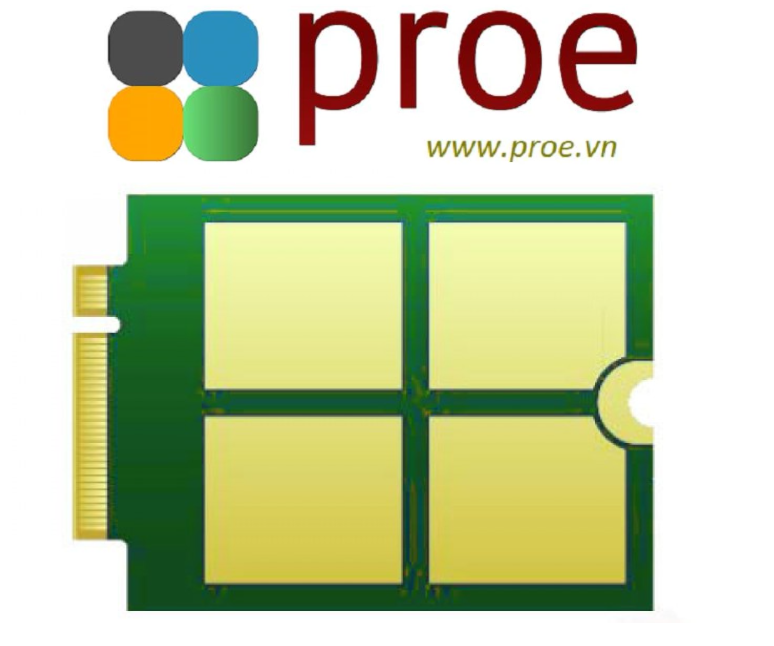

SIM8202X-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

PACKAGE CONTENT

Weight: 0.008 kg

This is an M.2 module without antenna or base board, we also provide the ready-made expansion board for easy evaluation: SIM8202G-M2 5G HAT

1. SIM8202G-M2 x1

SIM8202X-M2 SIMCom Original 5G Module, M.2 Form Factor, High Throughput Data Communication

SIM8202X-M2 SERIES

5G Module, Four Antennas Support

The SIM8202X-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.

It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.

The SIM8202X-M2 adopts M.2 form factor, TYPE 3042-S3-B. AT commands of SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes the investments of customers and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Product Advantages

• Standard M.2 interface.
• High throughput data communication.
• AT commands of the SIM8202X-M2 are compatible with SIM7912G/SIM8200X-M2 series modules

Specifications
