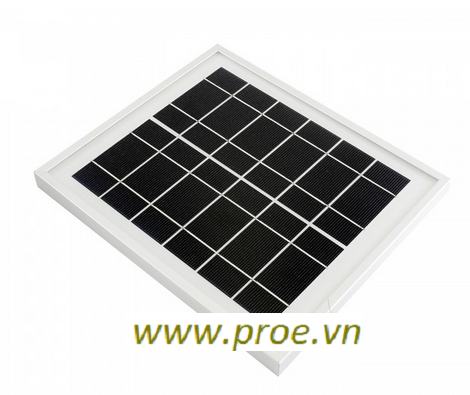

Solar Panel (6V 5W)

Specifications

• Solar cell type: 156 monocrystalline cell
• Surface: toughened glass
• Frame material: anodic oxidation aluminum alloy
• Back board material: 0.25mm PET
• Power: 5.0W ± 5%
• Operating voltage: 6.0V ± 5%
• Operating current: 833mA ± 5% (max)
• Open circuit voltage: 7.2V ± 5%
• Short circuit current: 916mA ± 5%
• For use with: Solar Power Manager

Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

Application Example

A simple solar power supply system:

Dimension
