5G/4G/3G module designed for Jetson Nano, multi mode multi band, Options for 5G Module

Wiki: www.waveshare.com/wiki/SIM8202G-M2_5G_for_Jetson_Nano
           www.waveshare.com/wiki/RM520N-GL_5G_for_Jetson_Nano

PACKAGE CONTENT

Weight: 0.296 kg

SIM8202G-M2 5G for Jetson Nano

1. SIMXXXX-M2 4G/5G module base x1
2. SIM8202G-M2 x1
3. 5G External Antenna x4
4. GPS antenna x1
5. USB3.0 dual plug cable x1
6. USB 3.0 Adapter (C) x1
7. Heatsink x1
8. Screws pack x1
9. OPTIONS Power adapter 5V 3A x1
10. Black acrylic panel x1

RM520N-GL 5G for Jetson Nano

1. SIMXXXX-M2 4G/5G module base x1
2. RM520N-GL x1
3. 5G External Antenna x4
4. GPS antenna x1
5. USB3.0 dual plug cable x1
6. USB 3.0 Adapter (C) x1
7. Heatsink x1
8. Screws pack x1
9. OPTIONS Power adapter 5V 3A x1
10. Black acrylic panel x1

DESCRIPTION

5G/4G/3G Module Designed For Jetson Nano, Multi Mode Multi Band, Options For 5G Module

5G/4G/3G MODULE FOR JETSON NANO

Options For SIM8202G-M2 / RM520N-GL 5G Module

Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage

This 5G/4G/3G Jetson Nano communication module provides options for SIMCom 5G module SIM8202G-M2 and Quectel 5G module RM520N-GL, supports 5G NSA and SA networking.

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features At A Glance

• Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
• Options for SIM8202G-M2 / RM520N-GL core module, with multi mode multi band support
• 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
• USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
• SIM card slot, supports 1.8V / 3V SIM card
• 2x LED indicators, easy to monitor the working status
• AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
• Operating system support: Windows/Linux/Android

Specifications

5G Module Comparison

Compatible Hardware Interface

SIM8200EA-M2
6x antennas version

SIM8202G-M2
4x antennas version

RM520N-GL
4x antennas version

Multi Mode Multi Band, Applicable For Most Of The Countries And Regions

Supports 5G/4G/3G, Supports 5G SA And NSA, Multi Mode Multi Band
Applicable For Regions With 5G Sub-6G Signal Coverage

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi System Support

Supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi Host Support

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer

Sub-6G: up to 2.4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET: up to 1 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

High-Precision GNSS Support

Supports GPS, Beidou, Glonass, Galileo, QZSS, LBS

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Application Examples

Appearance & Introduction

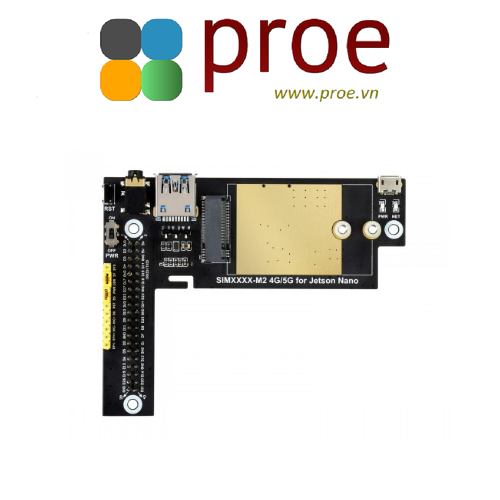

What's On Board

1. M.2 connector
   compatible with SIM8200EA-M2, SIM8202G-M2 and RM520N-GL modules
2. USB3.1 port
   for connecting with computer or Jetson Nano
3. 3.5mm headphone/microphone jack
4. 40PIN GPIO header
   for connecting with Jetson Nano
5. Fan header
   for 5V cooling fan
6. nano SIM card slot
   supports 1.8V / 3V SIM card
7. 5V 3A power input
8. Network indicator
9. Power indicator
10. Reset
11. Power switch

12. Power supply circuit
13. Audio drive circuit
14. Power supply selection jumper
    5V - SYS: powered by Jetson Nano 40PIN GPIO
    5V - USB: powered by external 5V 3A power adapter
15. Module on/off control pin enable jumper
    PWR - D5: enabled by default, Jetson Nano D5 pin can be used to turn on/off the module
16. Module reset pin enable jumper
    RST - D6: enabled by default, Jetson Nano D6 pin can be used to reset the module
17. Audio input/output
    MIC+/MIC-: for external microphone
    SPK+/SPK-: for external speaker

Product Show
