WIKI: www.waveshare.com/wiki/CM5-DUAL-ETH-MINI

Weight: 0.141 kg

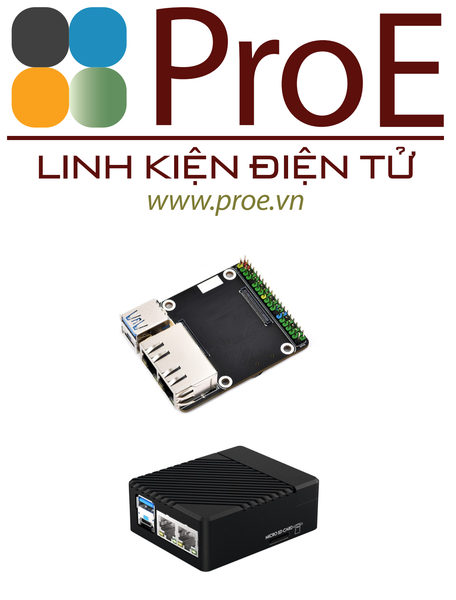

CM5-DUAL-ETH-MINI

CM5-DUAL-ETH-MINI x1

CM5-DUAL-ETH-MINI-BOX

1

2

3

4

5

6

1. CM5-DUAL-ETH-MINI + metal case (assembled) x1
2. Thermal tape 5PCS x1
3. Black thermal tape x1
4. Black anti-slip rubber 4PCS x1
5. OPTIONS 27W power adapter x1
6. Screwdriver x1

Mini Dual Gigabit Ethernet Base Board / Mini-Computer Kit Designed for Raspberry Pi Compute Module 5 (NOT Included), For All Variants Of CM5

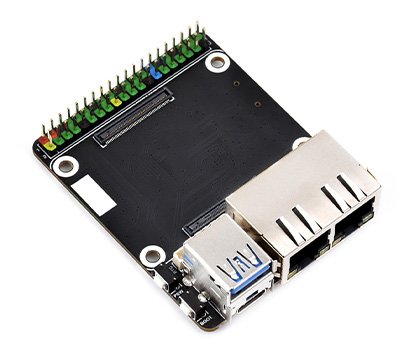

Dual Gigabit Ethernet Base Board For CM5

Mini, Practical And Neat

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Version Options

* Please refer to the Package Content for detailed part list

CM5-DUAL-ETH-MINI
the dual Gigabit Ethernet base board only

CM5-DUAL-ETH-MINI-BOX
In addition to the dual Gigabit Ethernet base board, it is equipped with Aluminum Alloy case and 27W power supply

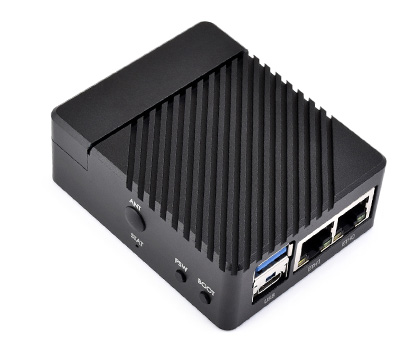

Optional Black Metal Case

Provides better protection for the base board along with efficient heat dissipation

for reference only, CM5 is NOT included.

Specifications

What's the differences

CM5 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	MIPI	HDMI	RTC	Fan Header②	Power Input	Features
NANO A			√		3.0×1	×2		SH1.0	√	5V	CM5 sized
NANO B		×1	√	16PIN PCIe	3.0×1	×2	√	SH1.0	√	5V	CM5 sized
mini Base A		×1	√	16PIN PCIe	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size
mini Base B		×1	√	M.2 M KEY	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	mini size, onboard EEPROM and encryption chip
Mini Dual Gigabit		×2	√		3.0×1			SH1.0	√	5V	dual ETH
PoE Base	√	×1	√	M.2 M	3.0×2 2.0×2	×2	×2	ML/CR1220	√	5V	USB×4
Raspberry Pi official	③	×1	√	M.2 M	3.0×2	×2	×2	ML/CR1220	√	5V	Official IO base board
Note	① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

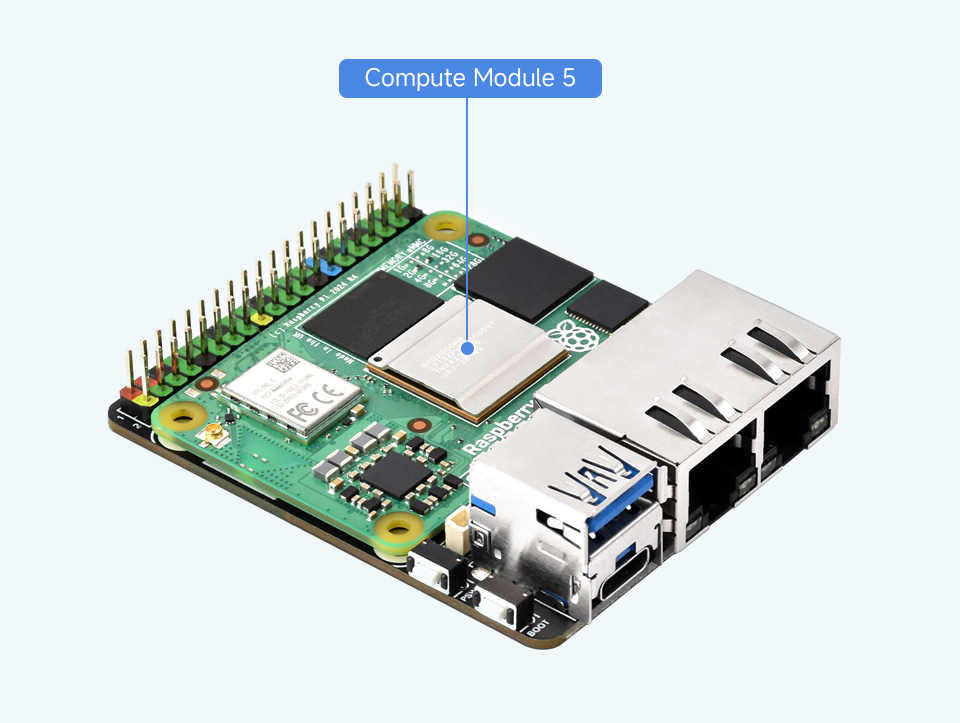

Connecting with Compute Module 5

standard CM5 socket and 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module

for reference only, CM5 is NOT included.

Precise cut-out with clear label

each cut-out is completely aligned with the connector

1. Comes with anti-slip rubber (unassembled)
2. PSW button, for system power ON/OFF control without frequent plugging and unplugging of the power supply
3. Antenna connector, for connecting antenna to build a wireless router

4. BOOT button, for setting the programming mode
5. LED indicator for monitoring the working status of the system

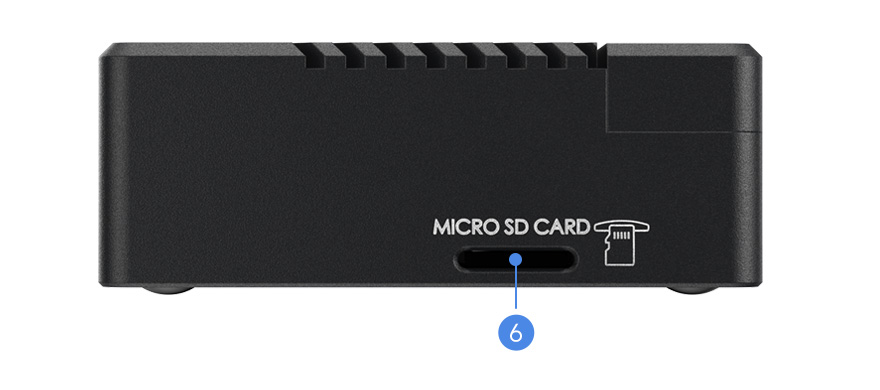

6. TF card slot, precise cut-out with clear label

Magnetic Design

Adopts Magnetic removable top with location columns, easy to fix and
better protection for the GPIO pins

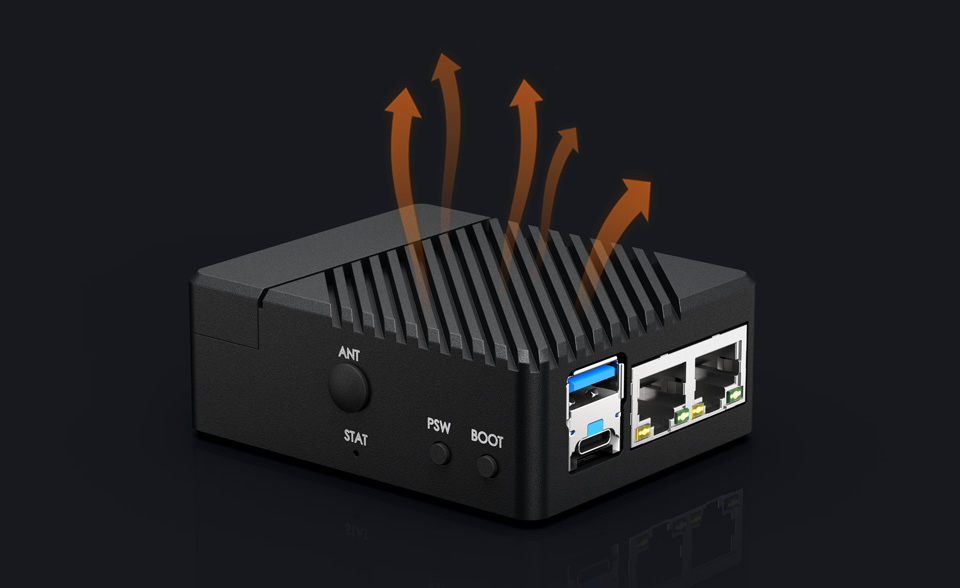

Heat Dissipation Design

Metal case for large area thermal conductivity and heat dissipation
Combined with heatsink fins for more efficient cooling

Application example

Suitable for Raspberry Pi or other industrial occasions with special function requirements

Assembly Guide

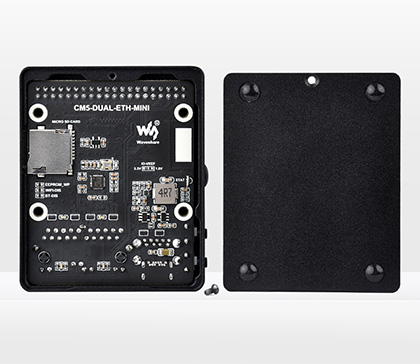

1. Remove the bottom screws then the bottom panel.

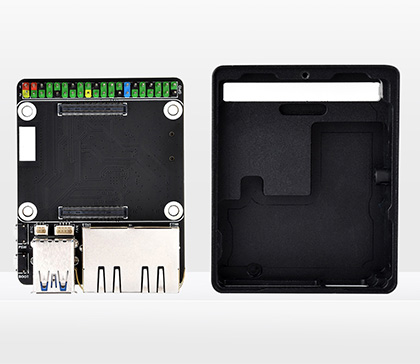

2. Gently push the Ethernet port and take out the CM5 mini base board.

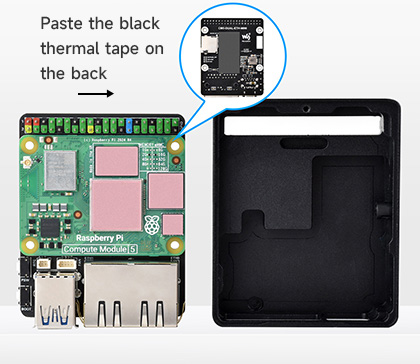

3. Paste the thermal tapes on the front and back sides of the CM5, then install the CM5 to the base board

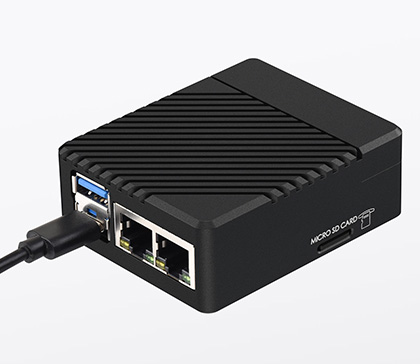

4. Install the base board to the metal case, fix the bottom panel, then insert the TF card and power on.

for reference only, CM5 is NOT included.

What's On Board

1. 40PIN GPIO header
   for connecting sorts of HAT
2. CM5 socket
   suitable for all variants of Compute Module 5
3. PSW button
4. BOOT button
5. RTC battery header
   for connecting rechargeable RTC battery
6. FAN header
   for connecting cooling fan, allows speed adjustment and measurement
7. RJ45 Gigabit Ethernet ports
   Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
   ETHERNET 0: CM5 original network port
   ETHERNET 1: PCIe extended network port

8. USB3.2 Gen1 Type-A port
   for connecting sorts of USB devices
9. Type-C port
   5V power supply, or used for eMMC programming
10. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
11. RTL8111H
    Gigabit NIC chip
12. SYSTEM switch
    EEPROM_WP: Prevent EEPROM from being overwritten
    WiFi_DIS: WiFi disabled, only for CM5 versions with wireless
    BT_DIS: Bluetooth disabled, only for CM5 versions with wireless
13. Indicators
    Red light: indicating the power supply status of Raspberry Pi
    Green light: indicating the working status of Raspberry Pi

Outline dimensions

About Compute Module 5

Newly upgraded, more powerful

• Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
• More options for RAM (2GB / 4GB / 8GB / 16GB)
• More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
• Faster eMMC Flash storage, up to 200 Mbps data rate
• Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, most compatible with Compute Module 4
• Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
