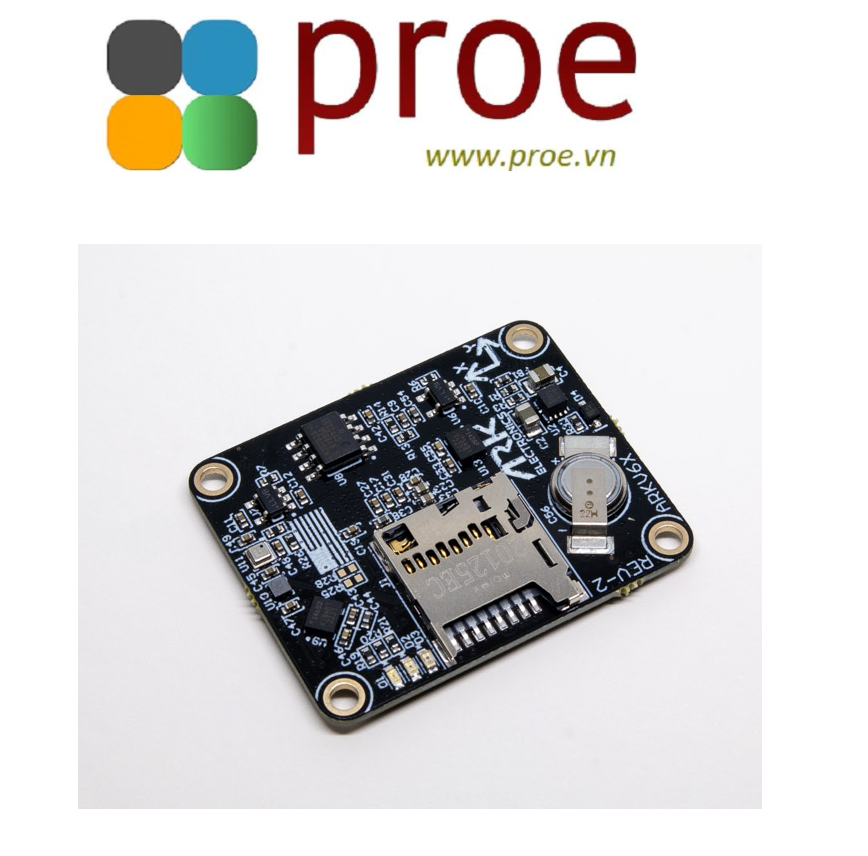

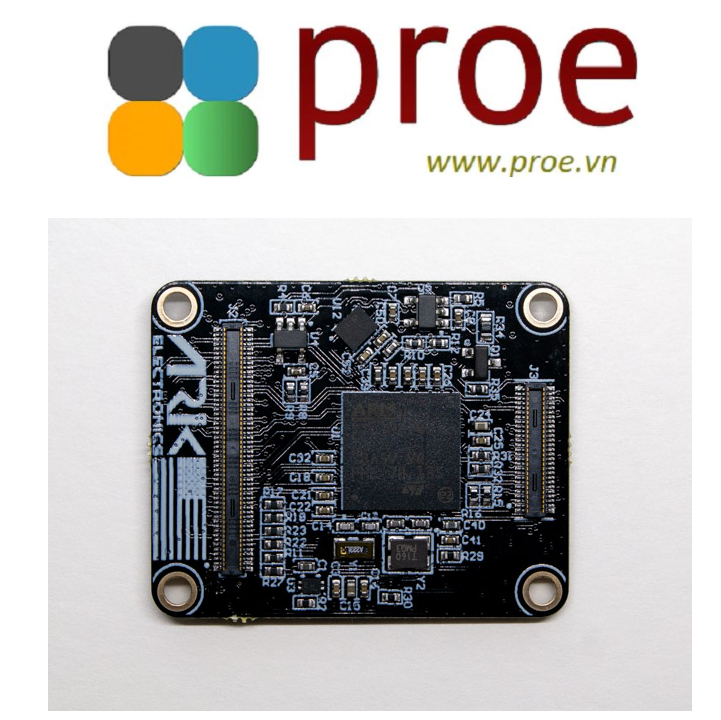

ARKV6X Flight Controller

USA built NDAA compliant flight controller based on the FMUV6X and Pixhawk Autopilot Bus open source standards with triple synced IMUs.

Description

The ARKV6X NDAA compliant flight controller is based on the FMUV6X and Pixhawk Autopilot Bus open source specifications. With triple synced IMUs, data averaging, voting, and filtering is possible. The Pixhawk Autopilot Bus (PAB) form factor enables the ARKV6X to be used on any PAB carrier board.

• Supported Firmware
  • PX4 Autopilot – Ships By Default
  • Ardupilot – Can Be Flashed
• Sensors
  • Dual Invensense ICM-42688-P IMUs
  • Invensense IIM-42652 Industrial IMU
  • Bosch BMP390 Barometer
  • Bosch BMM150 Magnetometer
• STM32H743IIK6 MCU
  • 480MHz
  • 2MB Flash
  • 1MB RAM
• FRAM
• Pixhawk Autopilot Bus (PAB) Form Factor
• Heater
  • 1W for warming sensors in extreme cold
• LED Indicators
• MicroSD Slot
• USA Built
  • NDAA compliant
  • FCC compliant
• Power Requirements
  • 5V
    • 500mA
      • 300mA for main system
      • 200mA for heater
• 3D Model

Includes MicroSD card
