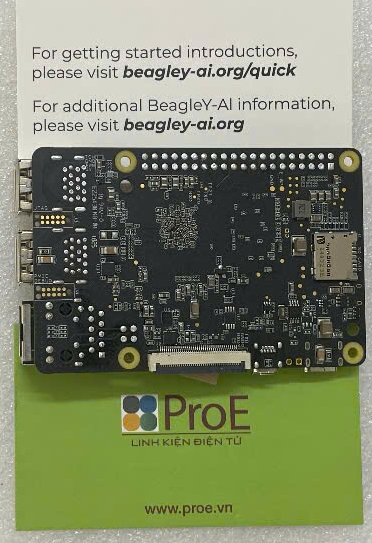

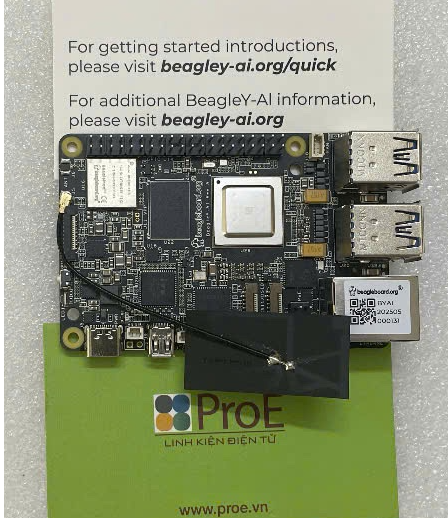

BeagleY®-AI

PRODUCT DETAILS

Description

BeagleY®-AI is a single board computer launched by beagleboard.org® which is fully open source to facilitate the ecosystem of open source community.

BeagleY®-AI is based on the new AM67A AI vision processor from Texas Instruments. The processor features four 64-bit Arm®Cortex®-A53 CPU cores with clock speeds up to 1.4 GHz, two general-purpose C7x DSPs and two Matrix Accelerators (MMAs) that enable up to 4 TOPS of deep learning performance, a vision processing accelerator with ISP,  GPU cores, and multiple Arm Cortex-R5 cores for low power, low-latency GPIO control. Users can maximize this compute via high-speed PCIe , USB3 interfaces and flexible multimedia I/Os to enable cost-effective multi-camera, multi-display system designs.

BeagleY®-AI’s 40-pin expansion header enables breadboard- and solder-free system prototyping with countless compatible sensors, actuators, and connectivity add-ons. And as an open-source design, professional and advanced users are also free to modify the hardware to take control of the supply chain, manufacturing, and build derivatives that are cost-, size-, and use case-optimized.

About BeagleBoard.org® Foundation -

BeagleBoard.org® Foundation founded in 2007 is focused on developing open-source hardware platforms that foster innovation and collaboration. BeagleBoard.org® has a rich history of creating accessible, versatile, and powerful single board computers, enabling developers, hobbyists, and professionals to bring their ideas to life.

Feature

● Texas Instruments AM67A Arm-based vision processor

-Quad-core 64-bit Arm®Cortex®-A53 CPU subsystem at 1.4GHz

-Dual general-purpose C7x DSP with Matrix Multiply Accelerator (MMA) capable of 4 TOPs

-Arm Cortex-R5 subsystem for low-latency I/O and control

-GPU, video and vision accelerators, and other specialized processing capability

● Memory

-4GB LPDDR4

-microSD card socket

-Board identifier EEPROM

● Networking

-BeagleBoard.org BM3301 module

   Wi-Fi 6 (IEEE802.11ax)

   Bluetooth® 5.4 with Bluetooth Low-Energy (BLE)

-Gigabit Ethernet with power-over-Ethernet (PoE+) support via add-on

● 3 Simultaneous Displays

-microHDMI

-OLDI (LVDS) with touchscreen support

-MIPI-DSI with touchscreen support (muxed with MIPI-CSI)

● Other I/O

-PCI-Express® Gen3 x 1 interface (requires external adapter)

-4x USB3 (5Gbps) type-A host ports

-1x USB2 (480Mbps) type-C device port and power input

-40-pin expansion header

-Fan power and control connector

● Debug

-3-pin JST-SH console UART

-10-pin TAG-CONNECT JTAG header

Application

● Robotics

● Factory and Building Automation

● Test & Measurement

● Medical

● Human-Machine Interfaces (HMIs)

● Intelligent Vision

-Image Classification

-Object Detection

-Semantic Segmentation

Specification

Hardware Overview

Part List

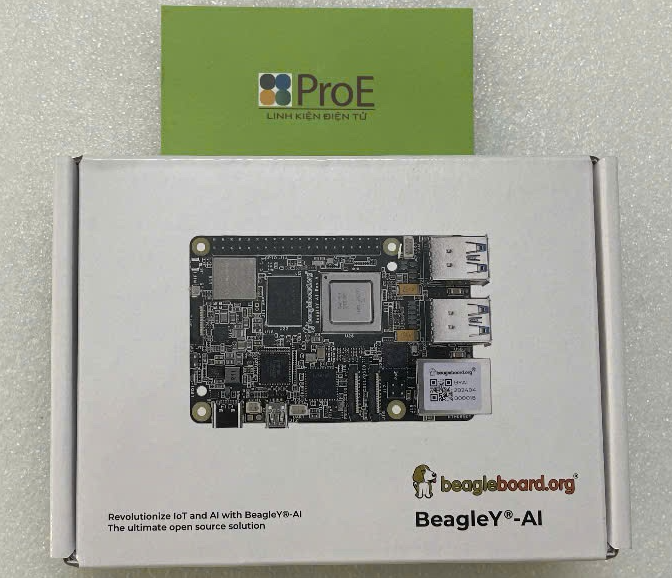

1x BeagleY®-AI  Board

1x Quick start card
