CM4-DUAL-ETH-WIFI6-BOX

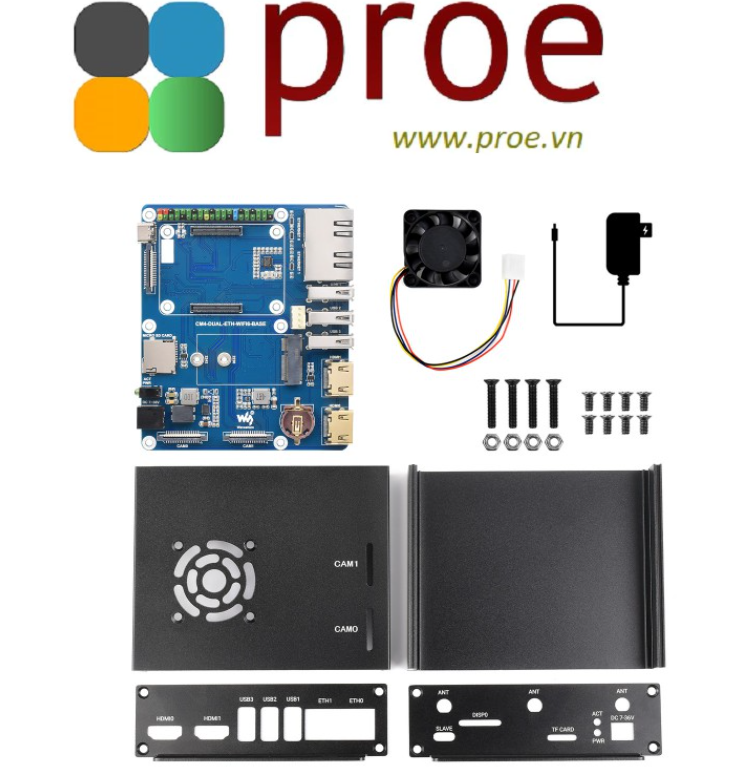

PACKAGE CONTENT

CM4-DUAL-ETH-WIFI6-BOX

1. CM4-DUAL-ETH-WIFI6-BASE x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-5V x1
4. OPTIONS12V 2A Power Supply x1
5. Screwpack x1

WIFI6 Dual ETH Base Board/Mini-Computer Designed For Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot

WIFI6 Dual ETH Base Board For CM4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Powerful Ethernet Capability

Compatible With WIFI Module

Compatible With The Following Types Of WIFI Modules With M.2 A/E KEY Interface

Wireless-AX210
WiFi 6E module

Wireless-AX200
WiFi 6 module

for reference only, AX210/200 WIFI module are NOT included.

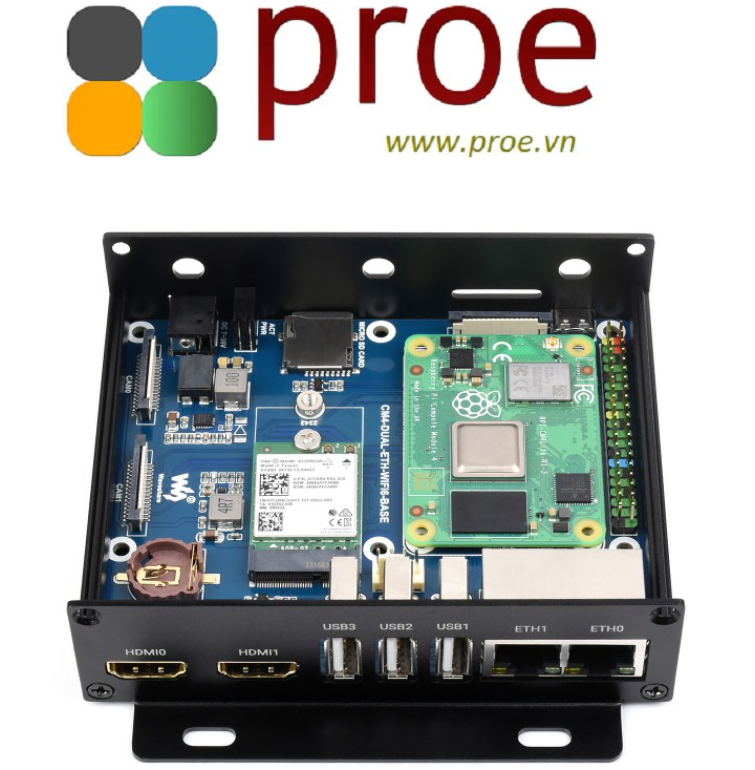

Optional Black Metal Case

Support Access To WIFI6 Module, Make It Easy To Build Raspberry
Pi CM4 Mini PC With WIFI Function

for reference only, CM4 and WIFI module are NOT included.

Specifications

Connecting With Compute Module 4

Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module

* For reference only, CM4 and WIFI module are not included

Onboard M.2 E KEY Slot

Support Access To WIFI Module Such As Wireless NIC AX200, AX210, Etc.

Parameters Comparison

MODEL	AX210			AX200
WI-FI VERSION	Wi-Fi 6E			Wi-Fi 6
WI-FI BAND	2.4GHz	5GHz	6GHz	2.4GHz	5GHz
WI-FI RATE	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps
INTERFACE	NGFF (M.2 A/E Key)
BLUETOOTH VERSION	5.2
TECHNICAL SUPPORT	MU-MIMO
ANTENNA CONNECTOR	IPEX-4 Connector
SYSTEM SUPPORT	Linux, Windows 10/8.1/8/7
DIMENSIONS	22.0 × 30.0 × 2.4mm

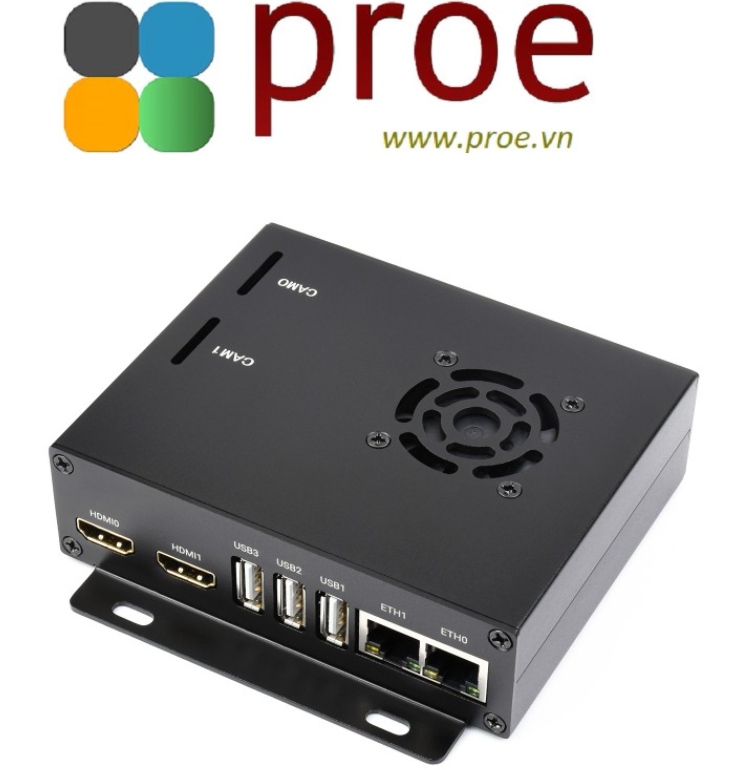

Dual RJ45 Ethernet Connector

1-Ch Gigabit Ethernet Connector & 1-Ch 100M Ethernet Connector

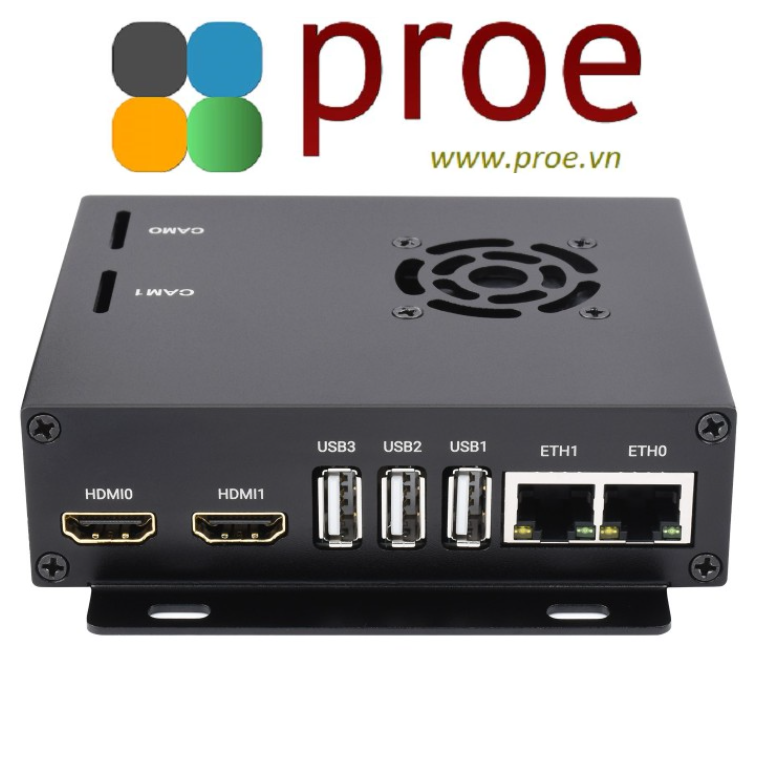

Rich Interfaces

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

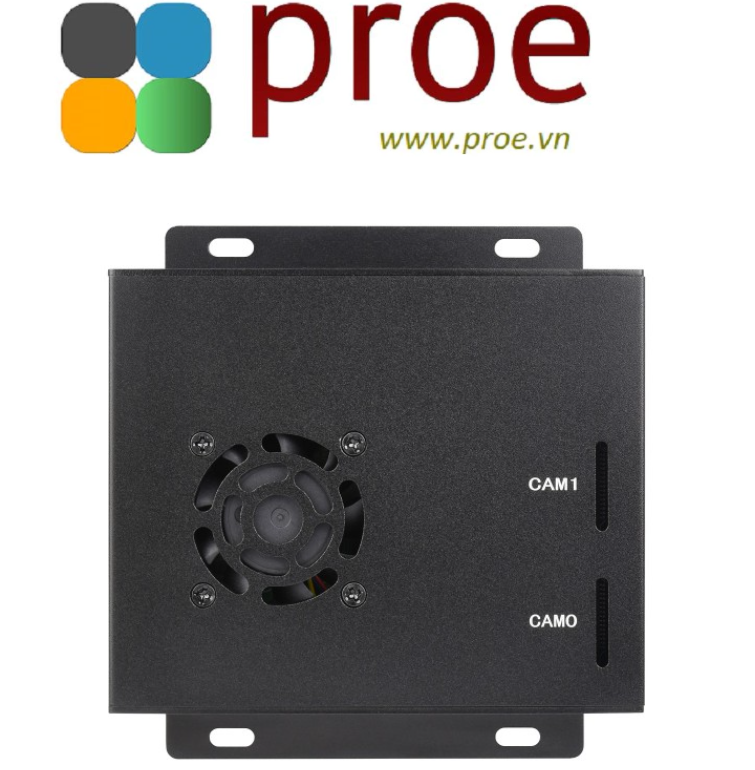

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

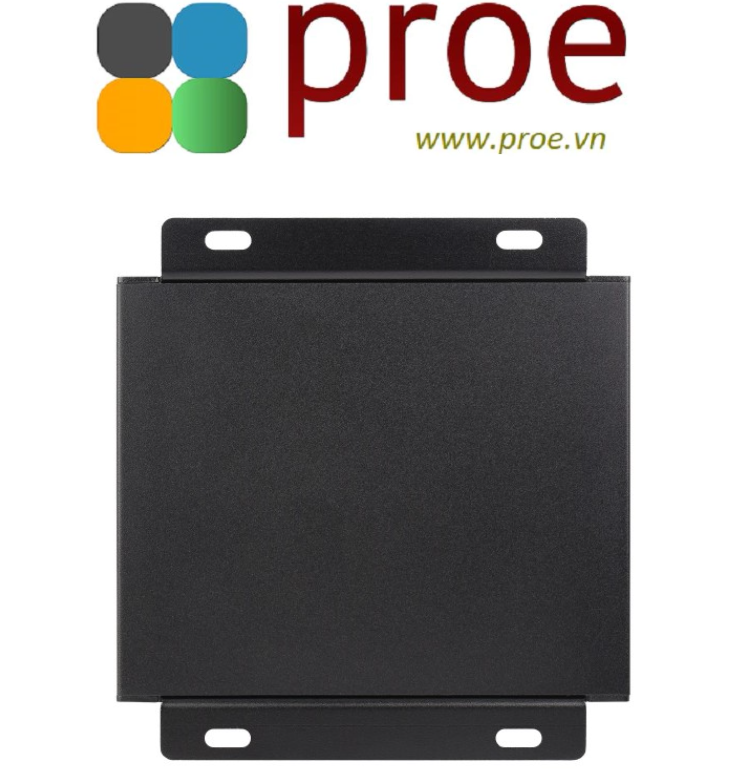

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

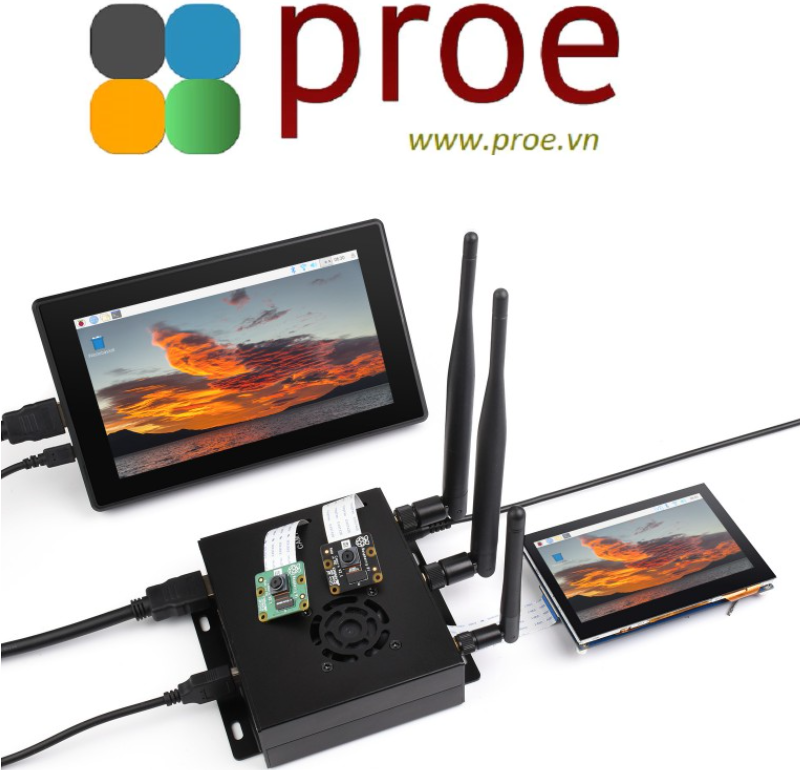

Application Examples

Suitable For Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

for reference only, display, cameras, and antenna are NOT included.

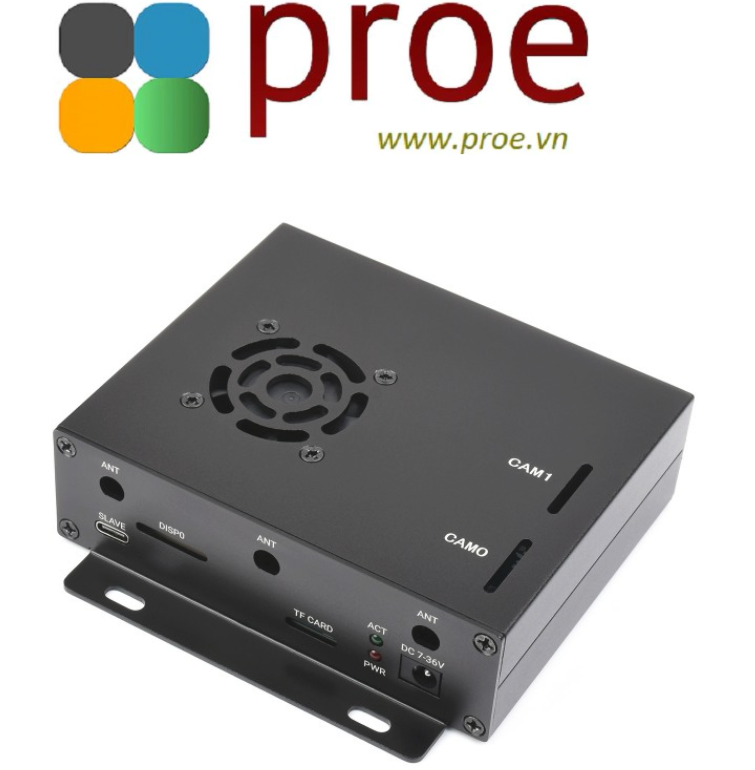

Product Show

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/CM4-DUAL-ETH-WIFI6-BASE
