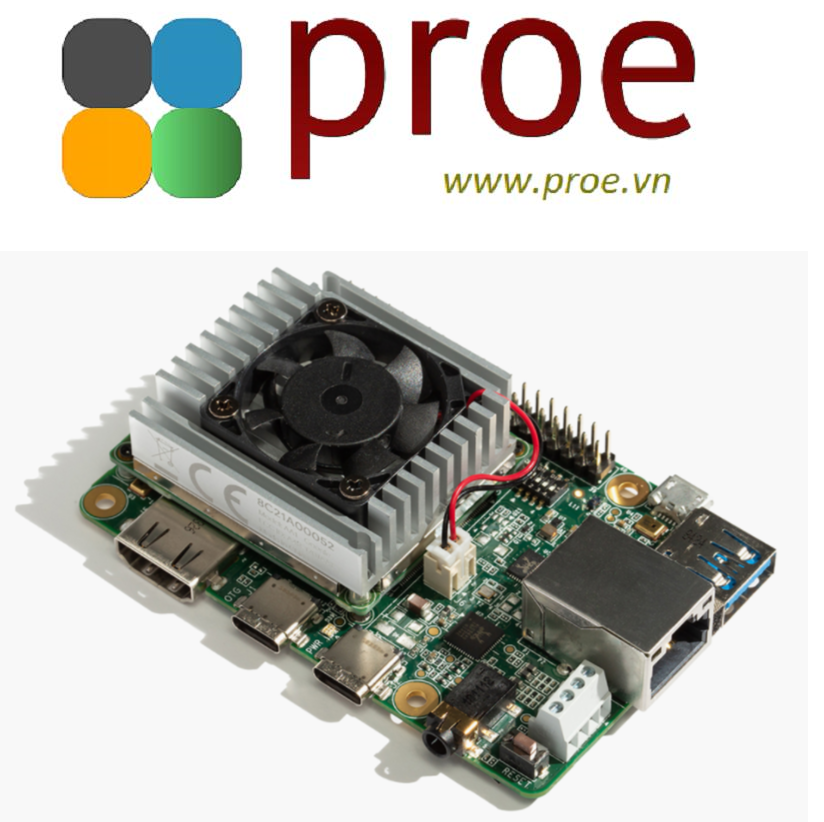

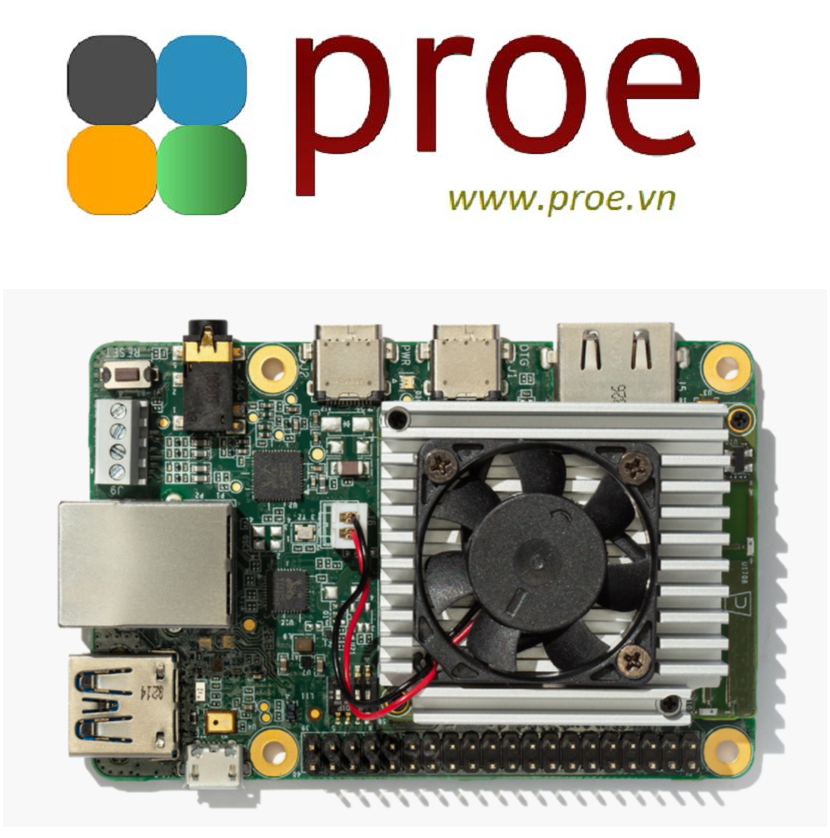

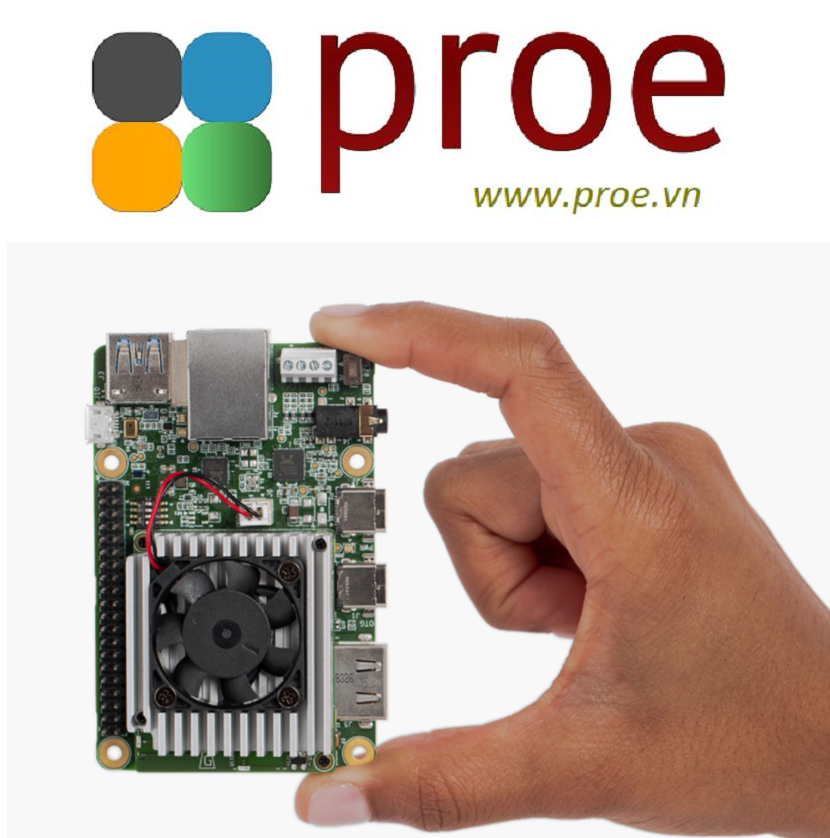

Coral Dev Board - 4GB RAM Version

Features

• Performs high-speed ML inferencing: The onboard Edge TPU coprocessor is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt). For example, it can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 FPS, in a power-efficient manner. See more performance benchmarks.
• Provides a complete system: A single-board computer with SoC + ML + wireless connectivity, all on the board running a derivative of Debian Linux we call Mendel, so you can run your favorite Linux tools with this board.
• Supports TensorFlow Lite: No need to build models from the ground up. TensorFlow Lite models can be compiled to run on the Edge TPU.
• Supports AutoML Vision Edge: Easily build and deploy fast, high-accuracy custom image classification models to your device with AutoML Vision Edge.
• Scale from prototype to production: Considers your manufacturing needs. The SoM can be removed from the baseboard, and integrated into your hardware. You can purchase the SoM separately here.

Description

The Coral Dev Board is a single-board computer that's ideal when you need to perform fast machine learning (ML) inferencing in a small form factor. You can use the Dev Board to prototype your embedded system and then scale to production using the onboard Coral System-on-Module (SoM) combined with your custom PCB hardware.

The SoM provides a fully-integrated system, including NXP's iMX 8M system-on-chip (SoC), eMMC memory, LPDDR4 RAM, Wi-Fi, and Bluetooth, but its unique power comes from Google's Edge TPU coprocessor. The Edge TPU is a small ASIC designed by Google that provides high-performance ML inferencing with a low power cost. For example, it can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 FPS, in a power-efficient manner.

The baseboard provides all the peripheral connections you need to prototype a project, including USB 2.0/3.0 ports, DSI display interface, CSI-2 camera interface, Ethernet port, speaker terminals, and a 40-pin I/O header.

Key benefits of the Dev Board:

• High-speed and low-power ML inferencing (4 TOPS @ 2 W)
• A complete Linux system (running Mendel, a Debian derivative)
• Prototyping and evaluation board for the small Coral SoM (40 x 48 mm)

Specifications

SOM

• NXP i.MX 8M SOC (Quad-core Cortex-A53, plus Cortex-M4F)
• Google Edge TPU ML accelerator coprocessor
• Cryptographic coprocessor
• Wi-Fi 2x2 MIMO (802.11b/g/n/ac 2.4/5GHz)
• Bluetooth 4.1
• 8GB eMMC
• 4GB LPDDR4

USB Connections

• USB Type-C power port (5V DC)
• USB 3.0 Type-C OTG port
• USB 3.0 Type-A host port
• USB 2.0 Micro-B serial console port

Audio connections

• 3.5mm audio jack (CTIA compliant)
• Digital PDM microphone (x2)
• 2.54mm 4-pin terminal for stereo speakers

Video connections

• HDMI 2.0a (full size)
• 39-pin FFC connector for MIPI-DSI display (4-lane)
• 4-pin FFC connector for MIPI-CSI2 camera (4-lane)

MicroSD card slots

Gigabit Ethernet ports

40-pin GPIO expansion headers

Supports Debian Linux

Hardware Overview

Block Diagram

Dimensions
