EC200U-EU C4-P01 Development Board Designed For QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth Communication, GNSS Positioning

  • Mã sản phẩm: EC200U-EU C4-P01
  • Nhà sản xuất: Quectel
  • Website hỗ trợ: https://www.proe.vn
2.900.000₫

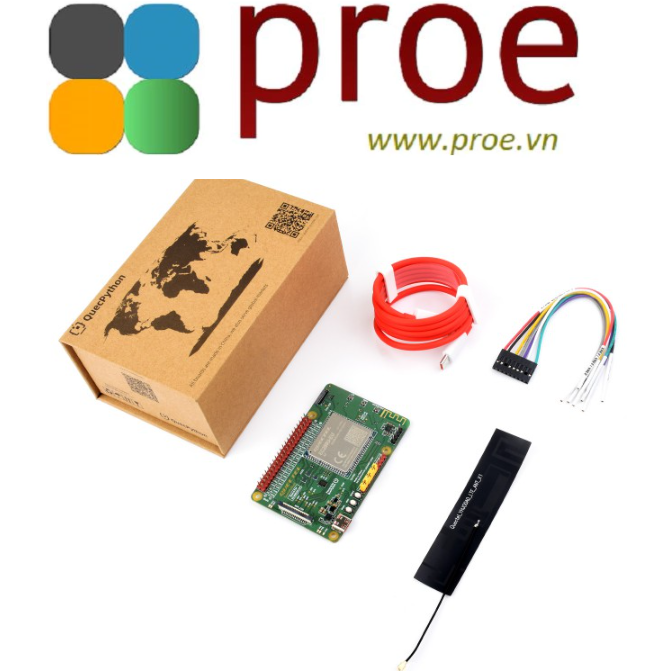

PACKAGE CONTENT

Weight: 0.193 kg

EC200U-EU C4-P01 x1

EC200U-EU C4-P01

EC200U-EU C4-P01 Development Board Designed For QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth Communication, GNSS Positioning, Compact Size & Cost-Effective

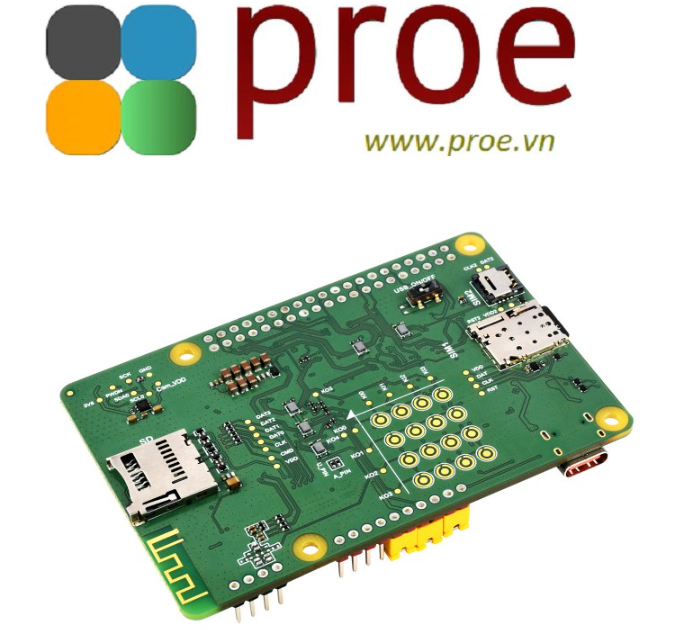

EC200U-EU C4-P01 Development Board

Compact & Portable Development Board Designed for QuecPython

Supports LTE Cat-1 / Bluetooth Communication, GNSS Positioning

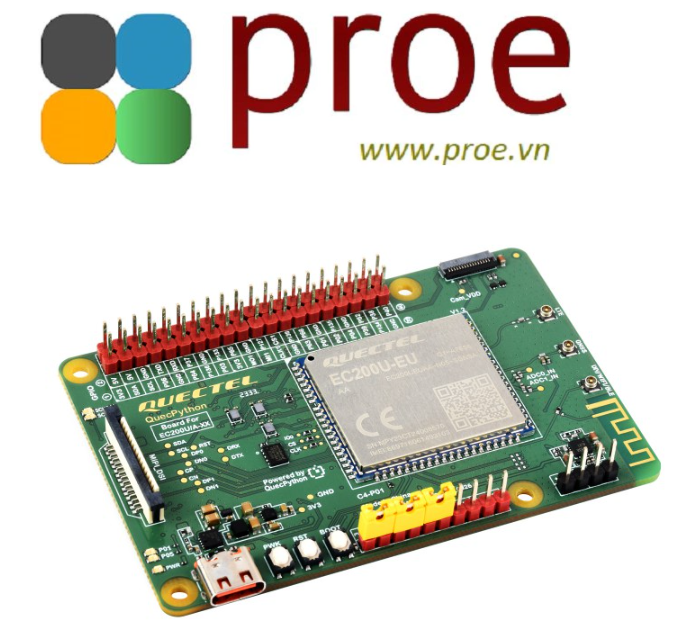

EC200U C4-P01 development board, front view

Features At A Glance

The EC200U-EU C4-P01 development board is equipped with EC200U-EU LTE Cat 1 wireless communication module, with maximum data rate up to 10 Mbps downlink and 5 Mbps uplink, supports multi-mode & multi-band and is cost-effective. Designed in the compact and unified form factor, compatible with Quectel multi-mode LTE Standard EC20-CE. Onboard Type-C port for easy development with just a USB Type-C cable. Onboard 40PIN GPIO pin header which is compatible with most Raspberry Pi HATs.

  • Equipped with EC200U-EU LTE Cat 1 wireless communication module, multi-mode & multi-band support
  • Onboard 40PIN GPIO header, compatible with most Raspberry Pi HATs
  • 5 LEDs for indicating module operating status
  • Supports TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS protocols, etc.
  • Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)
  • Onboard Nano SIM card slot and eSIM card slot, dual card single standby
  • Onboard MIPI connector for connecting MIPI screen and is fully compatible with Raspberry PI peripherals
  • Onboard camera connector, supports customized SPI cameras with a maximum of 300,000 pixels
  • Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development
  • Comes with online development resources and manual (example in QuecPython)



Specifications

MODEL BG95-M3 EC200U-EU EC200U-AU
Product Picture BG95-M3 EC200U-EU EC200U-AU
Applicable Region Global Europe, Middle East, Africa, Australia, New Zealand, Brazil Australia/Latin America
FREQUENCY BAND
LTE-FDD Cat M1:
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85
Cat NB2:
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85
B1, B3, B5, B7, B8, B20, B28 B1, B2, B3, B4, B5, B7, B8, B28, B66
LTE-TDD N/A B38, B40, B41
GSM / GPRS / EDGE 850, 900, 1800, 1900 MHz GSM: B2, B3, B5, B8
GNSS GPS, GLONASS, BDS, Galileo, QZSS
Bluetooth N/A Bluetooth 4.2 (BR/EDR)
Wi-Fi Scan N/A 2.4 GHz 11b (Rx)
DATA TRANSMISSION
CAT 1 N/A LTE-FDD: DL 10 Mbps; UL 5 Mbps
LTE-TDD: DL 8.96 Mbps; UL 3.1 Mbps
NB-IoT Cat NB2:
DL 127 Kbps; UL 158.5 Kbps
Cat NB1:
DL 32 Kbps; UL 70 Kbps
N/A
Cat-M DL 588 Kbps; UL 1119 Kbps N/A
GSM / GPRS / EDGE EDGE: DL 296 Kbps; UL 236.8 Kbps
GPRS: DL 107 Kbps; UL 85.6 Kbps
GSM: DL 85.6 Kbps; UL 85.6 Kbps
OTHERS
Type-C USB Port Supports AT commands testing, GNSS positioning, firmware upgrading, etc.
Communication Protocol PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS
SIM Card Nano SIM card (supports 1.8V only) Nano SIM and eSIM, dual card single standby
Indicator SIM_CHK: lights up when a SIM card is inserted into the card slot
NET: Network indicator
PSM: Sleep indicator
PWM: PWM function indicator
PWR: Power indicator
P01: Module Pin 1, default as EC200A-XX PWM0
P05: Module Pin 5, NET_MODE indicator
SCK1: SIM1 detection indicator, lights up when SIM1 card is inserted
SCK2: SIM2 detection indicator, lights up when SIM2 card is inserted
PWR: Power indicator
Buttons PWK: Power ON/OFF
PON: PSM wake-up
BOOT: Forcing into firmware burning mode
USB ON/OFF: USB power consumption detection switch
PWK: Power ON/OFF
RST: Reset
BOOT: Forcing into firmware burning mode
USB ON/OFF: USB power consumption detection switch
Antenna Connectors LTE main antenna + DIV antenna + GNSS antenna LTE main antenna + DIV / WIFI (scanning only) / Bluetooth antenna + GNSS antenna
Operating Temperature -30 ~ 75°C
Storage Temperature -45 ~ 90°C



Type-C Interface

Easy To Develop With Just A USB Type-C Cable

EC200U C4-P01 development board with Type-C interface

Onboard 40PIN GPIO Header

Compatible With Most Raspberry Pi HATs

EC200U C4-P01 development board with 40PIN GPIO pin header

Supports Various Development Tools

Provides Tools Such As QPYcom, Thonny IDE Plugin, And VSCode Plugin, Etc. For Easy Learning And Development

EC200U C4-P01 development board supports various development tools

What’s Onboard

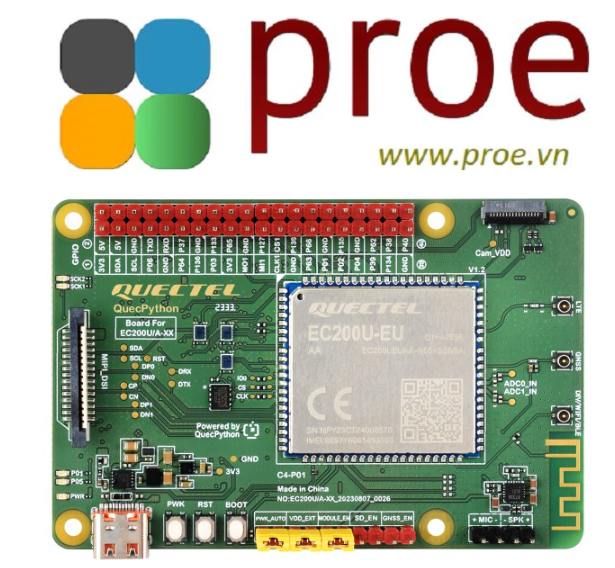

EC200U C4-P01 development board onboard components

Onboard Components

  1. EC200U module
  2. PWR Power indicator
  3. NET Network indicator
  4. PWM function indicator
  5. SIM1 indicator
    lights up when SIM1 card is inserted
  6. SIM2 indicator
    lights up when SIM2 card is inserted
  7. Power ON/OFF button
  8. Reset button
  9. BOOT button
    Press before powering on to force firmware burning mode
  10. USB detection ON/OFF
    Normally closed: USB can be connected normally;
    Normally open: Type-C supplies power only to the evaluation board, used for module power consumption measurement



Interfaces

  1. Raspberry Pi GPIO Header
    Compatible with Raspberry Pi HATs, for more details, please refer to Pinout Definition
  2. Power ON/OFF jumper
    Connect: auto turn on, short press PWK button to restart
    Disconnect: short press PWK button to power on, long press to power off
  3. 1.8V output jumper
    Connect: outputs 1.8V externally
    Disconnect: used to test power consumption
  4. Module power supply jumper
    Connect: DCDC to power the module



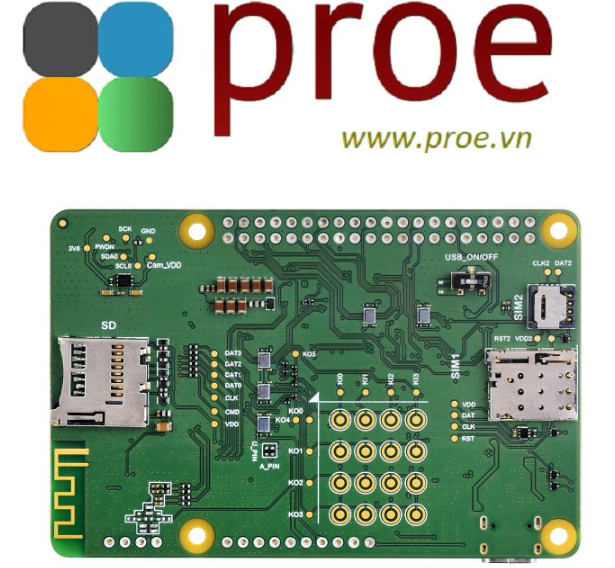

  1. SD power supply selection
    Connect: enable SD power supply
  2. GNSS active power supply selection
    Connect: enable GNSS active power supply
  3. SIM card slot 1
    for Nano SIM card
  4. SIM card slot 2
    for eSIM card
  5. SD card slot
    Before using the SD card, enable SD power supply in the 10-Pin Header
  6. MIPI interface
    Supports MIPI LCD and is fully compatible with Raspberry Pi peripherals
  7. Camera interface
    Supports customized SPI cameras with a maximum of 300,000 pixels
  8. Reserved matrix keyboard pads
    users can customize soldering or connection of the keyboard buttons (Note: the keyboard buttons are not included by default)
  9. USB Type-C port
  10. ADC testing points
    ADC0_IN/ADC1_IN ADC measurement interface
  11. LTE main antenna connector
  12. GNSS antenna connector
  13. DIV/Wi-Fi/Bluetooth antenna connector
  14. MIC & SPK header



Pinout Definition

EC200U C4-P01 development board pinout definition

Outline Dimensions

EC200U C4-P01 development board outline dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/EC200U-EU-C4-P01
Quectel Resources: https://python.quectel.com/doc/Getting_started/en/evb/ec200x-evb.html
