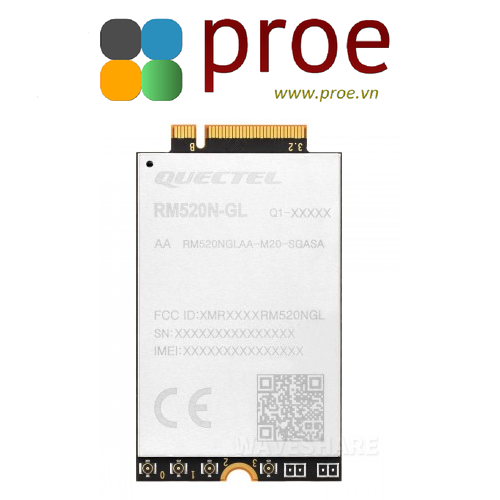

Quectel RM520N-GL
IoT 5G Global Band Module

5G Sub-6G Module, M.2 Form Factor With 3GPP 5G Release 16 Specification

The RM520N-GL is a 5G Sub-6GHz module specially optimized for IoT/EMBB applications. Adopts 3GPP Release 16 specification and supports 5G non-standalone (NSA) and standalone (SA) modes. Designed in an M.2 form factor, RM520N-GL is compatible with Quectel RM50xQ 5G module series, LTE-A Cat 6 module EM06, Cat 12 module EM12/EM12xR/EM120K series, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G. This module is an industrial-grade module for industrial and commercial applications only.

The RM520N-GL series nearly covers all the mainstream carriers worldwide. The integrated multi-constellation high-precision GNSS receiver (supports GPS, GLONASS, BDS and Galileo) greatly simplifies the product design and provides quicker, more accurate positioning capability.

Built in a rich set of network protocols, integrates multiple industry-standard interfaces and supports multiple drivers and software functions (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, and Android), which can be adopted in a wide range of eMBB and IoT applications including industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, video surveillance and digital signage.

• Designed for IoT/eMBB applications, support 5G/4G/3G, M.2 form factor
• Full coverage of multi network standards including 5G and LTE-A
• Supports NSA and SA modes
• Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment
• Supports multi functions: DFOTA and VoLTE (optional)
• Supports 3GPP Release16

Specifications

5G SUB-6		RM500U-CN	RM500Q-GL	RM502Q-AE	RM520N-GL
5G Standard		3GPP R15			3GPP R16
Region / Provider		China	Global (except US)	Global (except China)	Global
Operating temperature		-30 °C ~ +75 °C		-30 °C ~ +70 °C
Extension temperature		-40 °C ~ +85 °C
Dimensions		30.0 × 52.0 × 2.3 (mm)
Weight		8.9 (g)	8.7 (g)
Power supply		3.3~4.4 V, typical 3.7 V	3.135~4.4 V, typical 3.7 V
Power consumption		90 μA @ shutdown 3.7 mA @ hibernate TBD @ USB 2.0, idle TBD @ USB 3.0, idle	70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle	80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle	195 μA @ shutdown 4.7 mA @ hibernate 41 mA @ USB 2.0, idle 60 mA @ USB 3.0, idle
FREQUENCY BAND
5G	5G NR NSA	n41, n78, n79	n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n28, n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79		n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B5, B7, B8, B20, B28	B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41	B34, B38, B39, B40, B41, B42, B43, B48
	LAA	-	B46
UMTS	WCDMA	B1, B2, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19		B1, B2, B4, B5, B8, B19
GNSS		-	GPS / GLONASS / BeiDou (Compass) / Galileo
DATA RATE
5G SA Sub-6		downlink 2 Gbps; uplink 1 Gbps	downlink 2.1 Gbps; uplink 900 Mbps	downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps
5G NSA Sub-6		downlink 2.2 Gbps; uplink 575 Mbps	downlink 2.5 Gbps; uplink 600/650 Mbps	downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps
LTE		downlink 600 Mbps; uplink 150 Mbps	downlink 1.0 Gbps; uplink 200 Mbps	downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps
UMTS		downlink 42.2 Mbps; uplink 11 Mbps	downlink 42 Mbps; uplink 5.76 Mbps

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer
Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

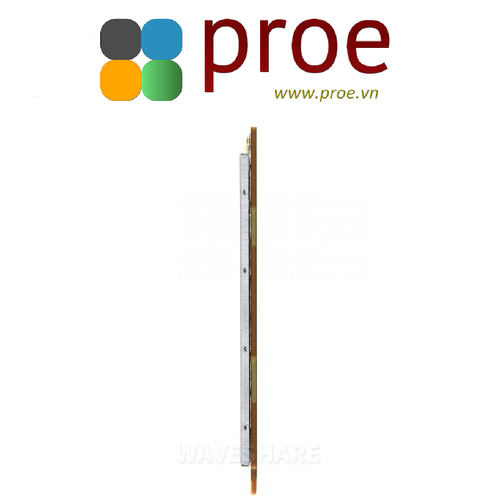

Dimensions

WIKI: www.waveshare.com/wiki/RM520N-GL
