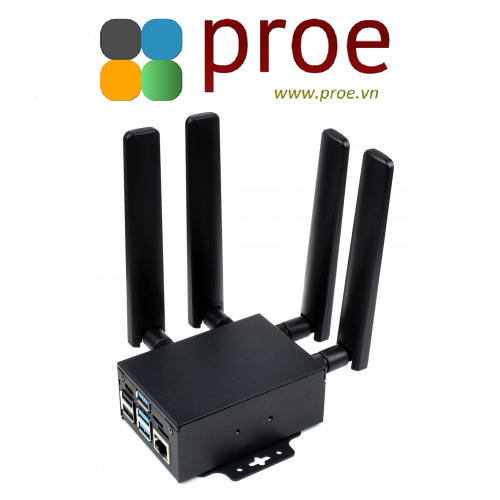

RM520N-GL 5G HAT for Raspberry Pi with Case, Quad Antennas LTE-A, Global Band, GNSS Positioning, Support 3GPP 16, 4G/3G

PACKAGE CONTENT
1. Protection case kit x1
2. M.2 TO 4G/5G HAT x1
3. RM520N-GL x1
4. Antenna 4pcs x1
5. IPEX adapter cable 4pcs x1
6. GNSS antenna x1
7. 2*20PIN pin header x1
8. OPTIONS 5V 3A Type-C power adapter x1
9. Dual plug USB3.0 cable x1
10. USB3.0 adapter x1
11. USB2.0 adapter x1
12. SMA protective cap 4pcs x1
13. Screws pack x1

RM520N-GL 5G HAT For Raspberry Pi With Case, Quad Antennas LTE-A, Global Band, GNSS Positioning, Support 3GPP 16, 4G/3G

Raspberry Pi RM520N-GL 5G HAT

Supports 5G/4G/3G communication and GNSS positioning, Global Band

Based On Quectel RM520N-GL 5G Module, Supports 3GPP 16

* for reference only, Raspberry Pi board is NOT included

Features At A Glance

• Comes with the Quectel RM520N-GL 5G Sub-6GHz module, supports various network standards such as 5G/4G/3G and LTE-A, GNSS positioning support
• Comes with M.2 TO 4G/5G HAT, compatible with the RM500U-CN/RM500Q-GL/RM502Q-AE/RM520N-GL series 5G modules
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano to enable high speed 5G network
• Standard M.2 B KEY slot, compatible with SIM7600X/EM06X/SIM82XX/RM5XX series 4G/5G M.2 modules
• Onboard control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable and flexible power supply
• Onboard power supply switch, reset button and LED indicator, easy to turn on/off the module and monitor the operating status
• 2x SIM card slot, dual card single standby, switchable via AT command
• High efficiency power supply circuit, up to 3A output current
• Comes with metal case, supports wall and rail mounting, more convenient for installation

Quectel RM520N-GL 5G Global Band Module

Supports 3GPP 5G Release 16 Specification, M.2 Form Factor

Supports 5G/4G/3G Networking,
Global Band

Support 5G NSA (4G And 5G Co-Networking) And SA (5G Standalone Networking)
Support 4G/3G Network

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi-Constellation High-Precision GNSS

Supports GPS, Beidou, Glonass, Galileo, QZSS

Comes With M.2 TO 4G/5G HAT

Compatible With RM500U-CN/RM500Q-GL/RM502Q-AE/RM520N-GL Series 5G Modules, Supports Direct Access To Raspberry Pi 4B/3B+ And CM4-IO-BASE-A/B Baseboards, Etc

                           Connecting with Raspberry Pi 4B                                                         Connecting with Raspberry Pi 3B+                                                                 Connecting with CM4 baseboard

What's On Board

1. Raspberry Pi GPIO header
   for connecting with Raspberry Pi
2. DIP switches
   Enables the power control and reset pins
3. M.2 slot
   Compatible with most SIMCom and QUECTEL 4G/5G modules in M.2 form factor
4. SIM card slot 1
   one of the 2x SIM card slots, dual card single standby
5. USB3.1 port
   USB 2.0 compatible, for connecting with different hosts
6. USB Type-C port
   5V 3A input, stable and flexible power supply
7. Audio jack
   SIM7600X/SIM8XXX series supports audio function, but RM5XX/EM06XX series temporarily does not support this function

8. Antenna connector
   Supports quad antennas
9. Reset button
10. Power supply switch
    Switch the power supply mode:
    When set to USB, the module is powered via the "5. USB3.1 port"
    When set to EXT PWR, the module is powered by the external power supply via the "6. USB Type-C port"
11. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
12. Indicator
    Easy to monitor the operating status of module

13. Cooling fan
    Better heat dissipation for both Raspberry Pi and the 5G module
14. SIM card slot 2
    Switchable via AT command
15. Module settings switch
    Switch A to ON for SIM7600X/A7906X/SIM7906X/SIM7912X series 4G M.2 modules;
    Switch B to ON for SIM8202X/SIM8200EA/SIM8262X series 5G M.2 modules;
    Switch C to ON for RM50X/RM520N-GL/EM06X series 5G/LTE-A M.2 modules

16. USB 2.0 interface pads
17. NAU8810X Audio Chip
    For SIM7600X/SIM8XXX series modules, RM5XX and EM06XX series modules temporarily does not support this function
18. Fan Header
    5V cooling fan power supply

Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...Just Plug It Into USB Port, Go Through Some Simple Configuration, The High Speed 5G Network Connection Will Be Ready To Use

Connecting To Raspberry Pi

Metal Case, Rugged And Nice-Looking,
Easy To Install

Supports Wall And Rail Mounting, Convenient For Various Application Scenarios
Such As Industry

Note: The case is only suitable for Raspberry Pi 4B

Application Examples

5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.

5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More Possibilities

Outline Dimensions

Wiki: www.waveshare.com/wiki/RM520N-GL_5G_HAT

Specifications

5G SUB-6		RM500U-CN	RM500Q-GL	RM502Q-AE	RM520N-GL
5G Standard		3GPP R15			3GPP R16
Region / Provider		China	Global (except US)	Global (except China)	Global
Operating temperature		-30 °C ~ +75 °C		-30 °C ~ +70 °C
Extension temperature		-40 °C ~ +85 °C
Dimensions		30.0 × 52.0 × 2.3 (mm)
Weight		8.9 (g)	8.7 (g)
Power supply		3.3~4.4 V, typical 3.7 V	3.135~4.4 V, typical 3.7 V
Power consumption		90 μA @ shutdown 3.7 mA @ hibernate TBD @ USB 2.0, idle TBD @ USB 3.0, idle	70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle	80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle	195 μA @ shutdown 4.7 mA @ hibernate 41 mA @ USB 2.0, idle 60 mA @ USB 3.0, idle
FREQUENCY BAND
5G	5G NR NSA	n41, n78, n79	n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n28, n41, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79		n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B5, B7, B8, B20, B28	B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
	LTE-TDD	B34, B38, B39, B40, B41	B34, B38, B39, B40, B41, B42, B43, B48
	LAA	-	B46
UMTS	WCDMA	B1, B2, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19		B1, B2, B4, B5, B8, B19
GNSS		-	GPS / GLONASS / BeiDou (Compass) / Galileo
DATA RATE
5G SA Sub-6		downlink 2 Gbps; uplink 1 Gbps	downlink 2.1 Gbps; uplink 900 Mbps	downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps
5G NSA Sub-6		downlink 2.2 Gbps; uplink 575 Mbps	downlink 2.5 Gbps; uplink 600/650 Mbps	downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps
LTE		downlink 600 Mbps; uplink 150 Mbps	downlink 1.0 Gbps; uplink 200 Mbps	downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps
UMTS		downlink 42.2 Mbps; uplink 11 Mbps	downlink 42 Mbps; uplink 5.76 Mbps
