PRODUCT DETAILS

EdgeBox-RPI-200 is not only an industrial raspberry pi/linux gateway and IIoT gateway, but also an all-in-one Raspberry Pi-based edge computing controllers that combines multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources, and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.

key Features

• All-in-one IIoT Edge Gateway

More than just a PLC, PAC, also an IoT edge Gateway, edge computing controller and Industry PC.

• Powerful and Flexible Processors

Powered by Raspberry Pi CM4, equipped up to 8GB RAM and 32GB eMMC

• Multiple Communication Capabilities

Support multiple industrial iot protocols and standards on phoenix connector and a RJ45 Gigabit Ethernet; Carry full-eatured wireless interconnectivity with both cecullar and LoRa, supported by AWS, Azure cloud services

• Rugged Industrial-grade Hardware Design

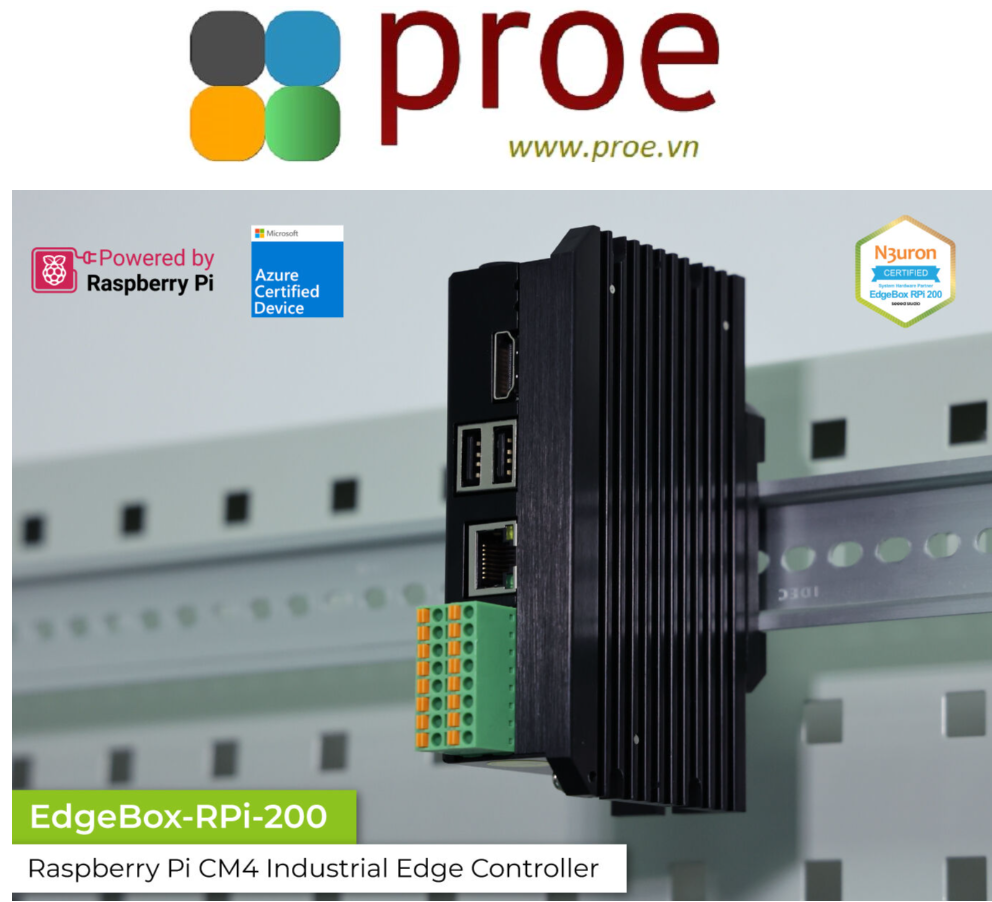

Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN rail and wall mounting

• Supported with Rich Industrial Software Ecosystem

Support rich industrial platforms and also fleet management, including Codesys, N3uron, balena, Node Red,  Ignition and etc.

Description

The EdgeBox-RPI-200 series controllers offer versatile solutions for enhancing edge automation and industrial control. Compact yet powerful, they support real-time operations and multi-process control for various industrial applications, serving as PLC, IIoT Gateway, OPC UA Server, and Industry PC.

For a detailed comparison and to find the best fit for your projects, you can check our EdgeBox Series Comparision Table, or directly email us at edge@seeed.cc.

Powerful and Flexible Processors

EdgeBox-RPI-200-CM4104016 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 1 GB RAM and 8 GB eMMC, compiling in Linux, with Debian Operate System.

Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards

This high-scalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.

Multiple Communication Capabilities, Multiple Cloud Services Support

The EdgeBox-RPI-200 employs high integration of communication, which integrates with wireless capabilities supported by multiple cloud services. It is greatly qualified for IIoT, which you can utilize to build IoT Gateway.

Great Raspberry Pi Industrial Software Ecosystem

With the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox-RPI-200 has plentiful software and autonomous platforms supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.

There are some platforms and brokers EdgeBox-RPI-200 working on, kindly click for detailed instruction and wiki:

Note

The EdgeBox-RPi-200 can't directly flash the OS. An additional carrier board is required to flash the OS.

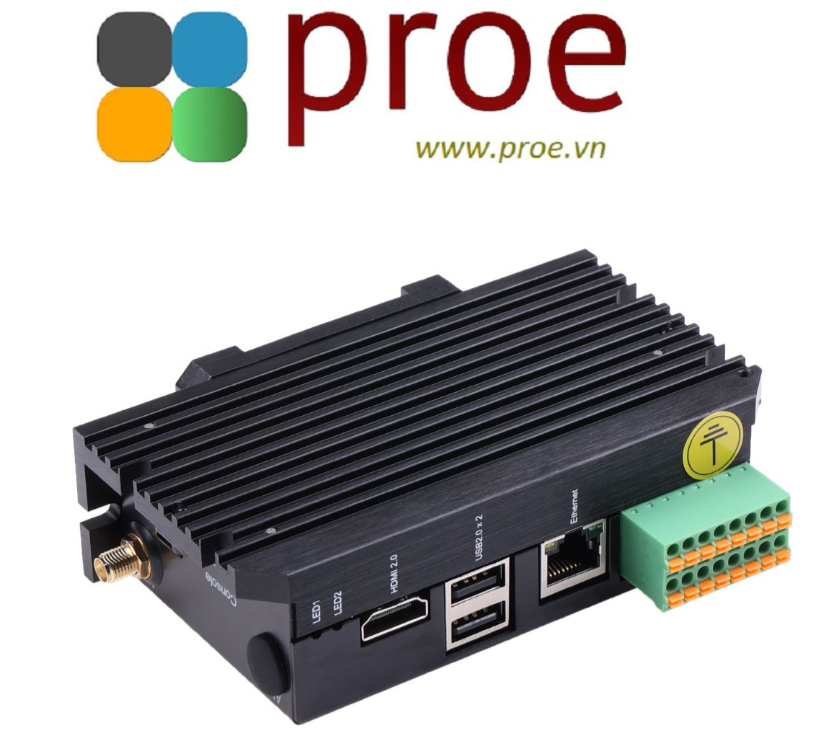

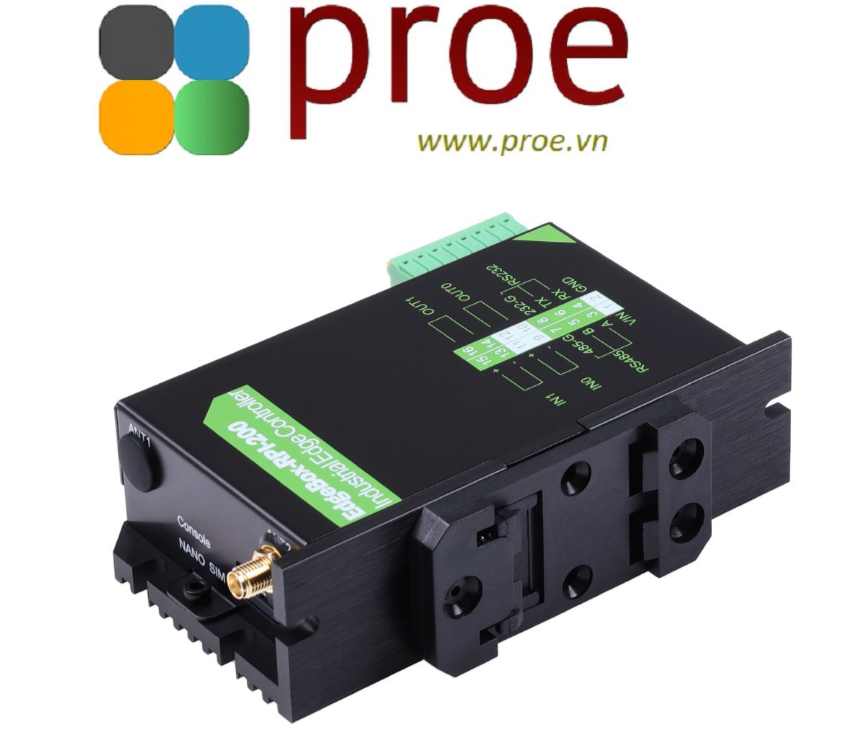

Robust Hardware Design

The overall structure of Edge Box is rugged, maintenance-reducing and fanless, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN rail and wall mounting, all of which make it suitable for limited space and extreme conditions including in-vehicle and in-rack applications.

Application

• Smart Building: Building Management System(BMS), Building Automation System(BAS), Building Automation and Control system(BACS)
• Smart Farming: smart irrigation system, greenhouse conditions adgjustment, localized control and automation
• Energy Management: power management system, home energy management system, microgrid control system
• Manufacturing: defect detection, workplace safety, smart packing
• Industry Automation: water management, forest monitoring, smart packing, fire detection and prevention system

We welcome you to explore and inquire about this product(edge@seeed.cc), unlocking the potential of EdgeBox-RPI-200 across various industries. Embrace the power of digital transformation in your sector with EdgeBox-RPI-200, empowering your business and industry with cutting-edge solutions.

Specification

Note

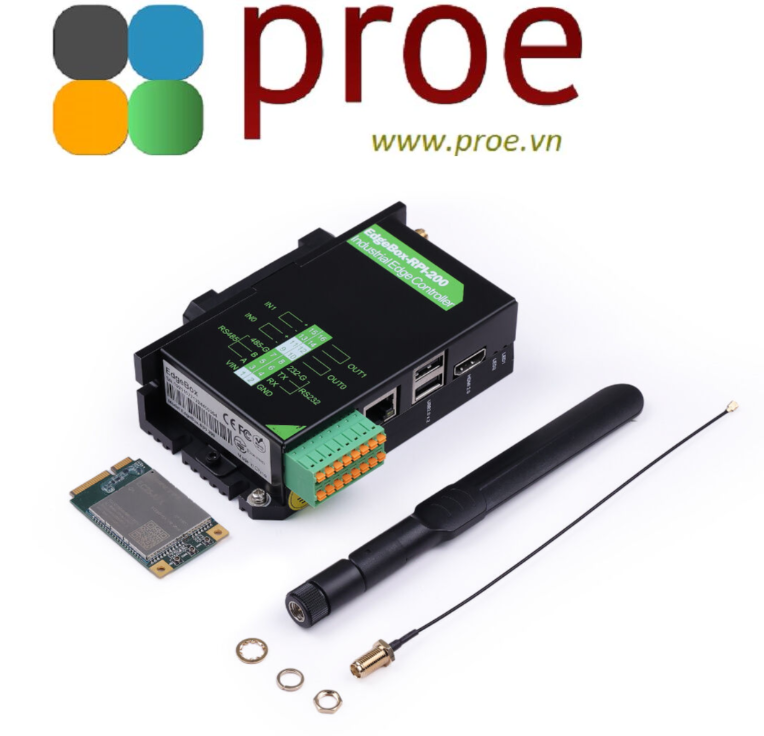

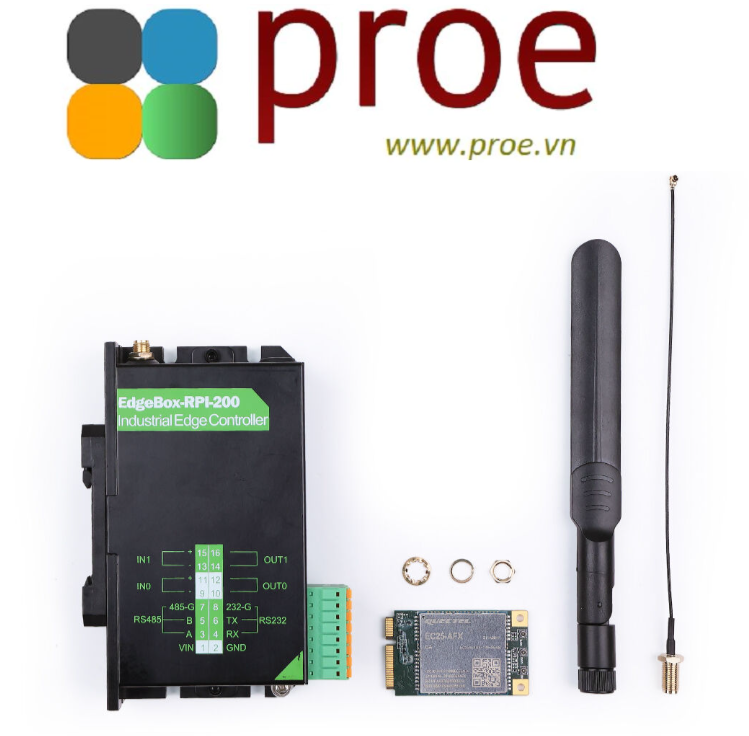

Options marked with * require additional purchase of module or antenna according to accerrories list. If you want to customize features, feel free to email us at edge@seeed.cc.

Note

4G and LoRa® cannot be used at the same time, because EdgeBox have only one Mini-PCIe slot.
