ESP32-P4-Module Development Board

  • Mã sản phẩm: ESP32-P4-Module-DEV-KIT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
790.000₫ Giá thị trường: Tiết kiệm:
Select Kit

Wiki: www.waveshare.com/wiki/ESP32-P4-Module-DEV-KIT

Weight: 0.422 kg

ESP32-P4-Module-DEV-KIT

  1. ESP32-P4-Module-DEV-KIT x1
  2. 8Ω 2W speaker x1

1ESP32-P4-Module-DEV-KIT

2

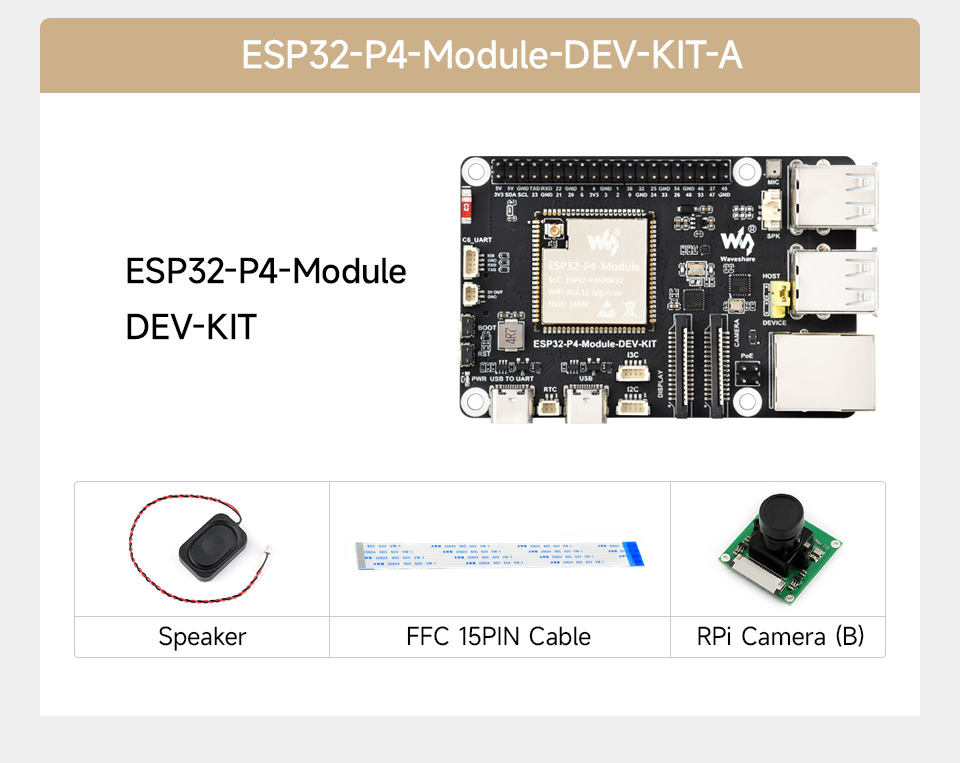

ESP32-P4-Module-DEV-KIT-A

  1. ESP32-P4-Module-DEV-KIT x1
  2. 8Ω 2W speaker x1
  3. FFC 15PIN cable x1
  4. RPi Camera (B) x1

1ESP32-P4-Module-DEV-KIT

2

3

4

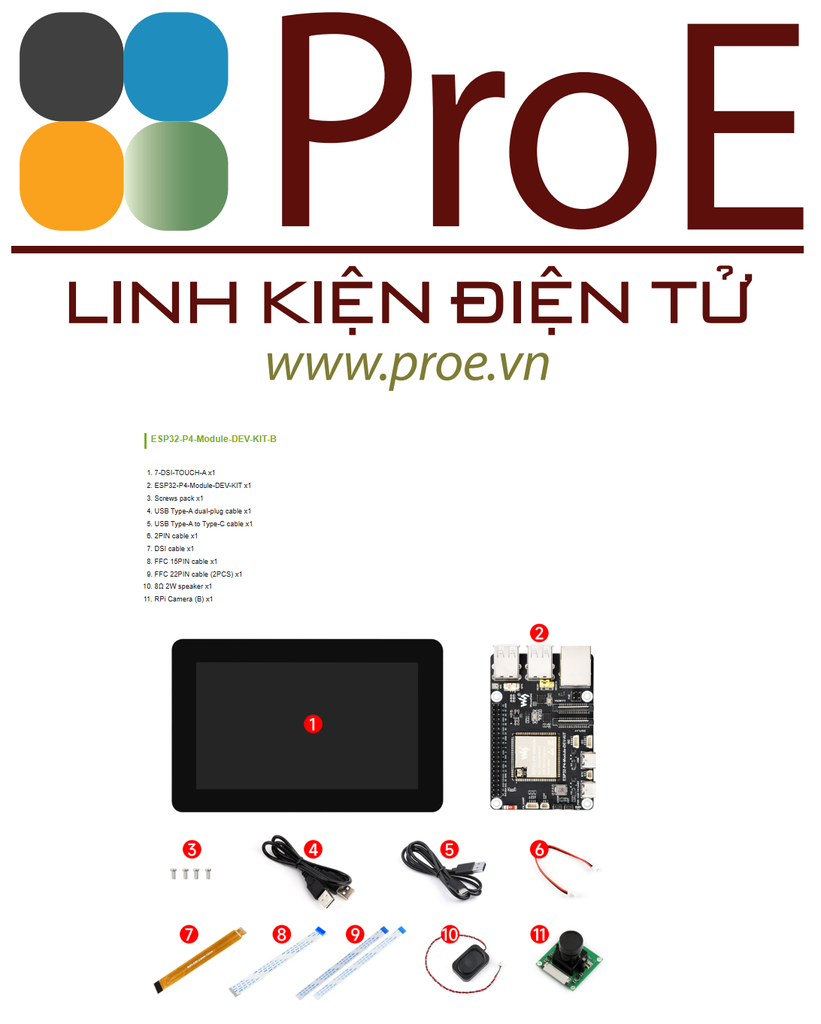

ESP32-P4-Module-DEV-KIT-B

  1. 7-DSI-TOUCH-A x1
  2. ESP32-P4-Module-DEV-KIT x1
  3. Screws pack x1
  4. USB Type-A dual-plug cable x1
  5. USB Type-A to Type-C cable x1
  6. 2PIN cable x1
  7. DSI cable x1
  8. FFC 15PIN cable x1
  9. FFC 22PIN cable (2PCS) x1
  10. 8Ω 2W speaker x1
  11. RPi Camera (B) x1

ESP32-P4-Module-DEV-KIT-B

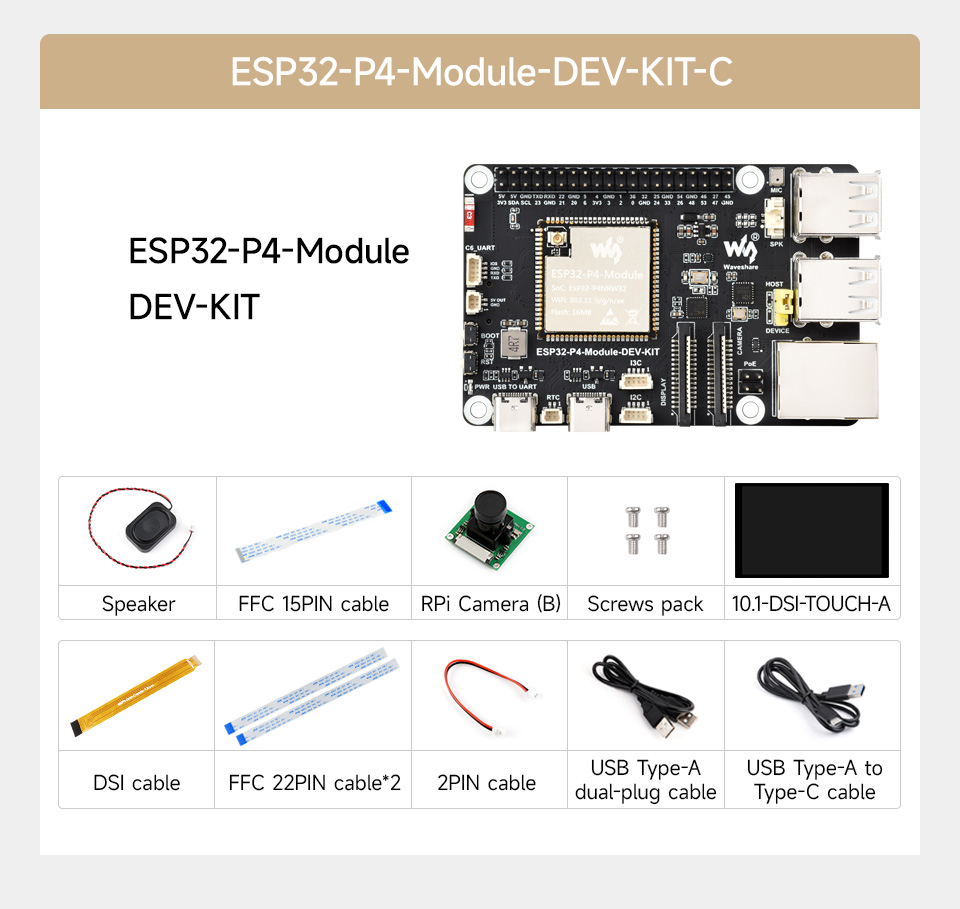

ESP32-P4-Module-DEV-KIT-C

  1. 10.1-DSI-TOUCH-A x1
  2. ESP32-P4-Module-DEV-KIT x1
  3. Screws pack x1
  4. USB Type-A dual-plug cable x1
  5. USB Type-A to Type-C cablex1
  6. 2PIN cable x1
  7. DSI cable x1
  8. FFC 15PIN cable x1
  9. FFC 22PIN cable (2PCS) x1
  10. 8Ω 2W speaker x1
  11. RPi Camera (B) x1

ESP32-P4-Module-DEV-KIT-C

ESP32-P4-Module High-performance Development Board, Based On ESP32-P4 And ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5/BLE

ESP32-P4-Module Development Board

High-performance Development Board Based On ESP32-P4 And ESP32-C6

Rich Human-machine Interfaces

 ESP32-P4-Module-DEV-KIT development board, front view ESP32-P4-Module-DEV-KIT development board, features

Kit Selection

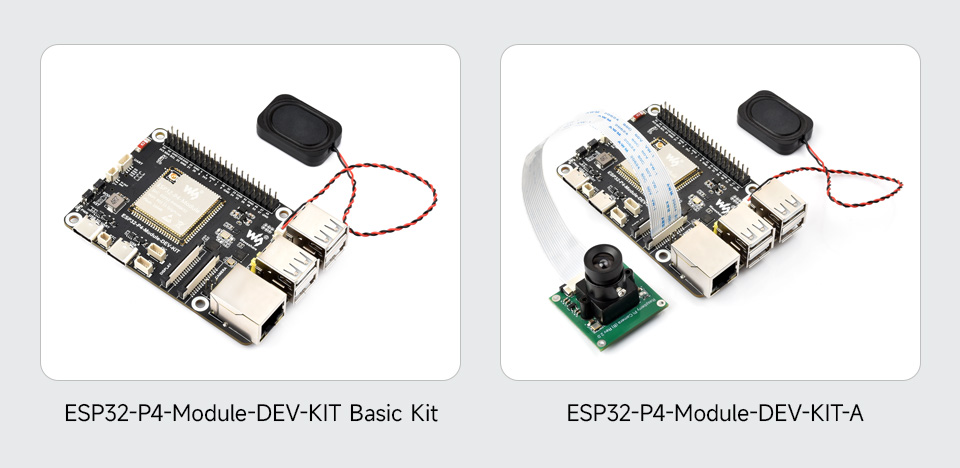

ESP32-P4-Module-DEV-KIT development board, basic kit



ESP32-P4-Module-DEV-KIT development board, kit A



ESP32-P4-Module-DEV-KIT development board, kit B



ESP32-P4-Module-DEV-KIT development board, kit C



Kit Connection Examples

ESP32-P4-Module-DEV-KIT development board, kit connection examples ESP32-P4-Module-DEV-KIT development board, kit connection examples ESP32-P4-Module-DEV-KIT development board, kit connection examples

DSI Capacitive Touch Display Comparison

Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

10.1″ DSI touch display, DSI capacitive touch display comparison

Model 7-DSI-TOUCH-A 10.1-DSI-TOUCH-A
Resolution 720 × 1280 (H×V) 800 × 1280 (H×V)
Communication Interface MIPI 2-lane
Brightness 450cd/m² (supports customization for 1000cd/m² high brightness version) 400cd/m² (supports customization for 1000cd/m² high brightness version)
Touch Chip GT9271
Outline Dimension 120.24mm × 189.32mm 147.0mm × 239.0mm
Display area 88.0mm × 155.0mm 135.96mm × 217.18mm
Pixel pitch 0.12075mm × 0.12075mm 0.1175mm × 0.1088mm
Contrast ratio 800:1
Operation temperature 0℃~60℃

* the DSI LCD is only included in the ESP32-P4-Module-DEV-KIT-B and ESP32-P4-Module-DEV-KIT-C.

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

 Raspberry Pi Camera (B) front view

Sensor OV5647 CMOS size 1/4inch
PIXELS 5MP Aperture F2.0
Focal length 6mm Field of view 60.6°
Night Vision function Not support FOCUSING Manual Focus



Development Board Introduction

This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with reserved PoE function header, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-Module-DEV-KIT meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
  • 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
  • Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
  • Adtaping 2*20 GPIO headers with 28 x remaining programmable GPIOs
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation



Highly integrated and powerful performance

Adopts ESP32-P4-Module, with built-in ESP32-C6 and 16MB Nor Flash

ESP32-P4-Module-DEV-KIT development board, high-performance MCU



Wi-Fi 6 and Bluetooth support

built-in ESP32-C6 module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.

ESP32-P4-Module-DEV-KIT development board, supports WiFi 6 and Bluetooth

Reserved PoE Module Header

More Flexible for Power Supply

ESP32-P4-Module-DEV-KIT development board, onboard reserved PoE module header

* the PoE module is NOT included



Connect to a PoE Module for PoE Power Supply

Provides Both Network Connection And Power Supply for ESP32-P4-Module-DEV-KIT board In Only One Ethernet Cable



ESP32-P4-Module-DEV-KIT development board, supports PoE Power Supply via PoE module

* the PoE HAT (F) and the switch in the picture above are NOT included.



What's On Board

ESP32-P4-Module-DEV-KIT development board, onboard components

  1. ESP32-P4-Module
    Built-in ESP32-P4NRW32, ESP32-C6, 16MB Nor Flash
  2. Display interface
    MIPI 2-lane
  3. Camera interface
    MIPI 2-lane
  4. Type-C UART connector
    for power supply, program burning and debugging
  5. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
  6. Type-C connector
    for power supply and program burning
  7. I2C header
  8. I3C header
  9. PoE module header
    connect to external PoE module for PoE power supply function
  10. Onboard microphone



  1. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  2. Type-A Ports
    USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper
  3. USB OTG function selection
    switching to HOST end for expanding USB ports
  4. RJ45 100M Ethernet port
  5. 40PIN GPIO header
  6. ESP32-C6 SMD Antenna
    SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5
  7. ESP32-C6 UART header
  8. 5V power header
  9. BOOT button
    Press it when powering on or resetting to enter download mode
  10. RST Reset button
  11. Power supply indicator
  12. TF card slot
    SDIO 3.0 interface protocol

Pin definition



ESP32-P4-Module-DEV-KIT development board, pin definition

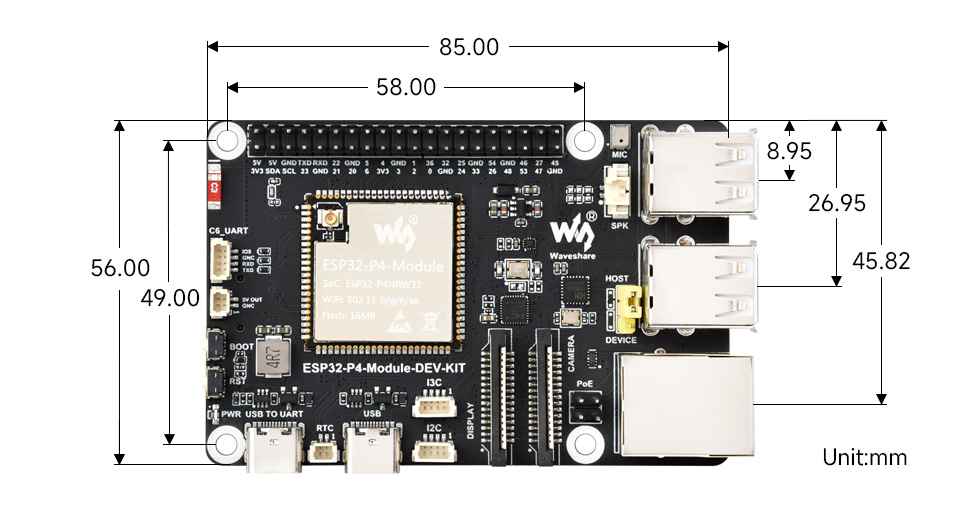

outline dimensions

ESP32-P4-Module-DEV-KIT development board, outline dimensions
