ESP32-S3-DEV-KIT-N16R8-M

Wiki: www.waveshare.com/wiki/ESP32-S3-DEV-KIT-N8R8

ESP32-S3 Microcontroller, 2.4GHz Wi-Fi Development Board, 240MHz Dual Core Processor, ESP32-S3-WROOM-1 Module, Options For 16MB Flash

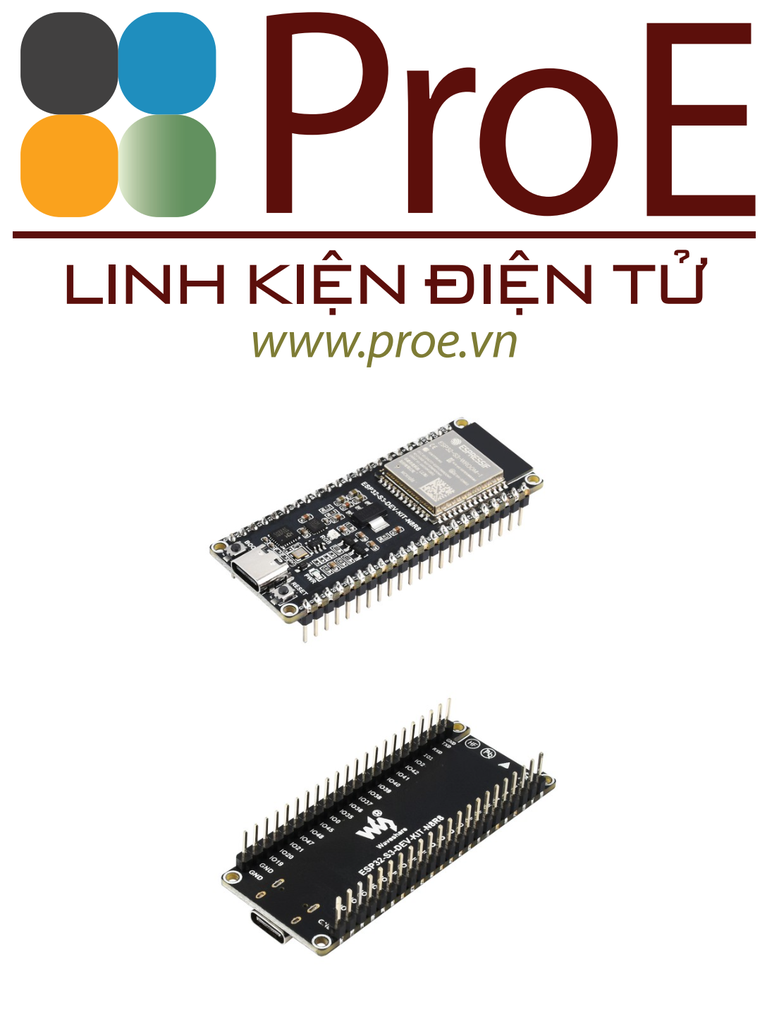

ESP32-S3-DEV-KIT-N16R8-M

1. ESP32-S3-DEV-KIT-N16R8 with pre-soldered header x1

ESP32-S3 Microcontroller
Wi-Fi Development Board

Supports development environments such as ESP-IDF, Arduino, MicroPython,etc

Onboard ESP32-S3-WROOM-1 series module

Version and Pinheader options

ESP32-S3-DEV-KIT-N8R8
8MB Flash

ESP32-S3-DEV-KIT-N8R8-M
8MB Flash, with pre-soldered header

ESP32-S3-DEV-KIT-N16R8
16MB Flash

ESP32-S3-DEV-KIT-N16R8-M
16MB Flash, with pre-soldered header

Features

This product is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3-WROOM-1 series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

• Adopts ESP32-S3-WROOM-1 series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, options For 8MB/16MB memory
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
• Type-C connector, easier to use
• Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
• Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
• Castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

Supports ESP-IDF, Arduino, MicroPython

Comprehensive SDK, dev resources, and tutorials to help you easily get started

ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

WIFI and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Function Block Diagram

Pinout Definition

Compatible with the pinout of ESP32-S3-DevKitC-1 development board

Onboard Resources

Product Show

outline dimensions
