ESP32-P4-NANO

  • Mã sản phẩm: ESP32-P4-NANO
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
600.000₫ Giá thị trường: Tiết kiệm:
Select Kit
Package Content

Weight: 0.575 kg

ESP32-P4-NANO

  1. ESP32-P4-NANO x1
  2. 8Ω 2W speaker x1

1ESP32-P4-NANO

2

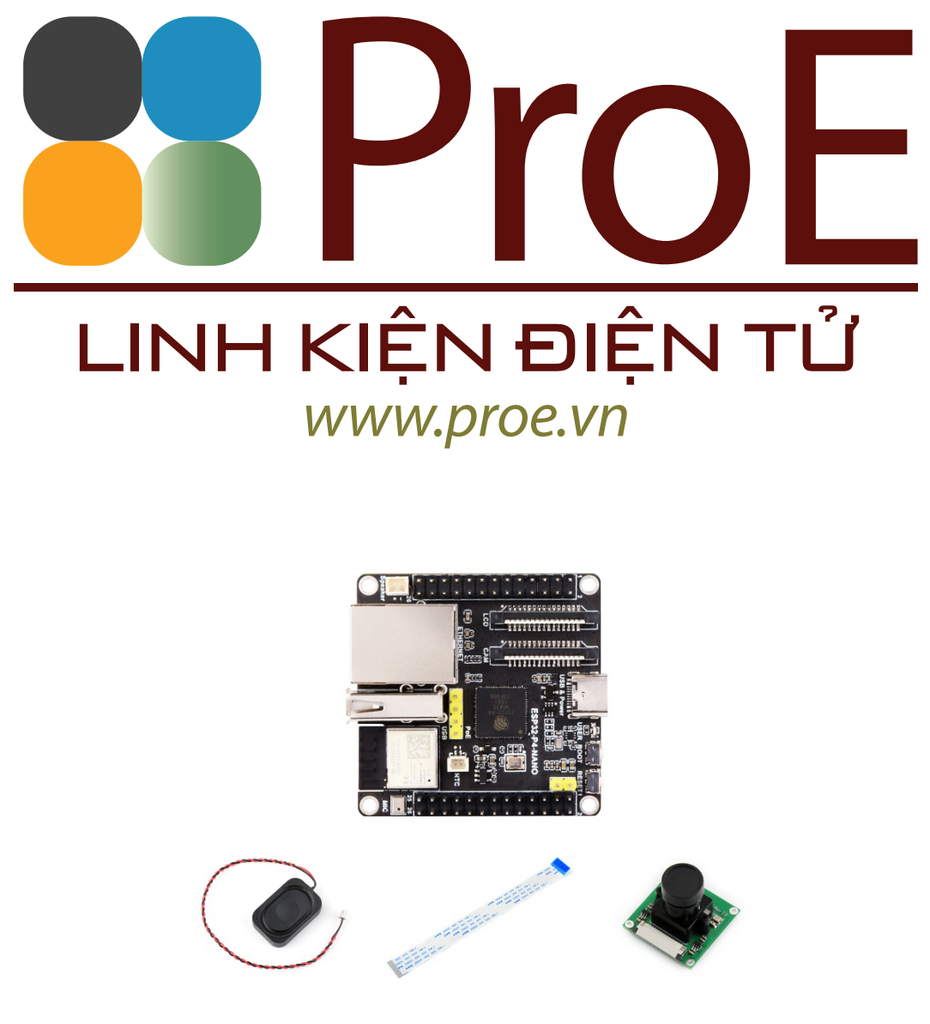

ESP32-P4-NANO-KIT-A

  1. ESP32-P4-NANO x1
  2. RPi Camera (B) x1
  3. 8Ω 2W speaker x1
  4. FFC 15PIN cable x1

1ESP32-P4-NANO

2

3

4

ESP32-P4-NANO-KIT-B

  1. ESP32-P4-NANO x1
  2. PoE module x1
  3. 8Ω 2W speaker x1
  4. Screws pack x1

1ESP32-P4-NANO

2

3

4

ESP32-P4-NANO-KIT-C

  1. ESP32-P4-NANO x1
  2. PoE module x1
  3. 8Ω 2W speaker x1
  4. FFC 15PIN cable x1
  5. RPi Camera (B) x1
  6. Screws pack x1
ESP32-P4-NANO-KIT-C

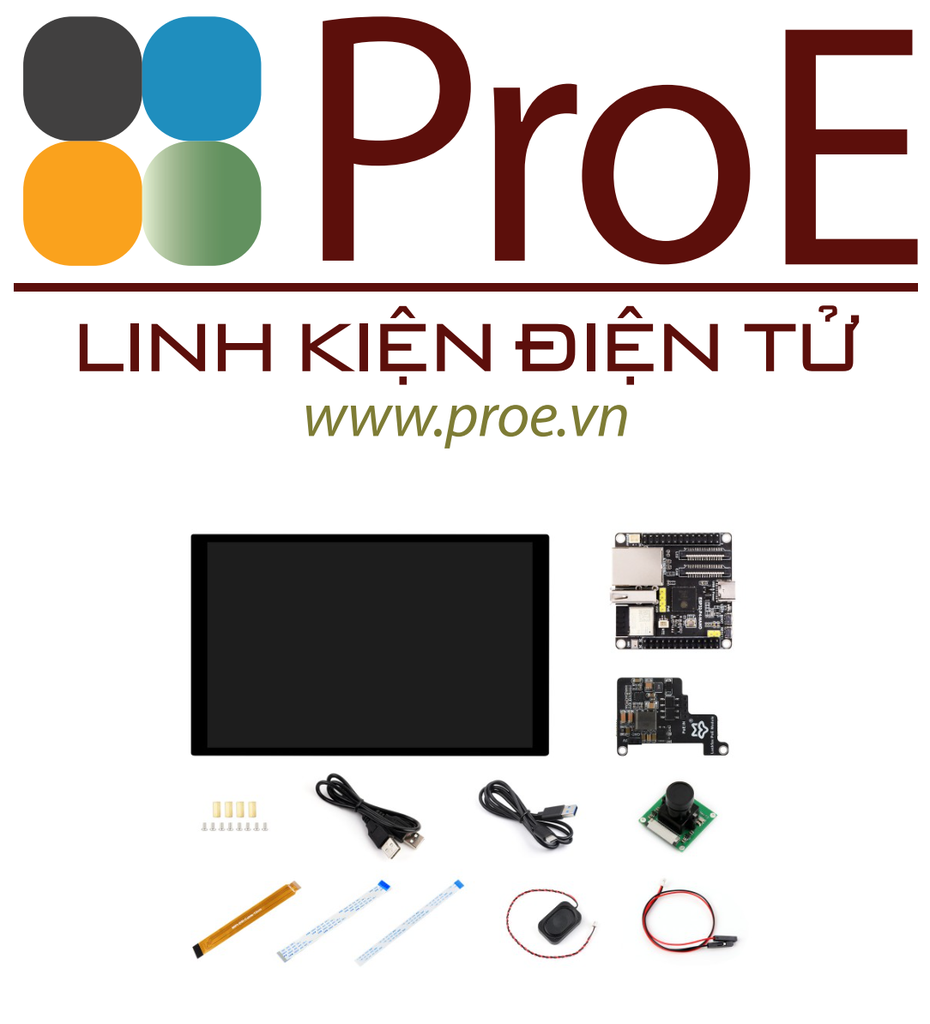

ESP32-P4-NANO-KIT-D

  1. 10.1inch DSI LCD x1
  2. ESP32-P4-NANO x1
  3. PoE module x1
  4. Screws pack x1
  5. USB Type-A dual-plug cable x1
  6. USB Type-A to Type-C cable ~1m x1
  7. RPi Camera (B) x1
  8. MIPI-DSI-Cable x1
  9. FFC 15PIN cable x1
  10. FFC 22PIN cable x1
  11. 8Ω 2W speaker x1
  12. SH1.0 2PIN cable x1
ESP32-P4-NANO-KIT-D

ESP32-P4-NANO High-performance Development Board, Based On ESP32-P4 Chip With RISC-V Dual-core And Single-core Processors, Supports Wi-Fi 6 And Bluetooth 5/BLE

ESP32-P4-NANO Development Board

Based on ESP32-P4 chip with RISC-V dual-core and single-core processors

Rich Human-machine Interfaces

 ESP32-P4-NANO development board, front view ESP32-P4-NANO development board, features

Kit Selection



ESP32-P4-NANO development board, basic kit



ESP32-P4-NANO development board, kit A



ESP32-P4-NANO development board, kit B



ESP32-P4-NANO development board, kit C



ESP32-P4-NANO development board, kit D



Kit Connection Examples

ESP32-P4-NANO development board, kit connection examples ESP32-P4-NANO development board, kit connection examples

10.1″ DSI Capacitive Touch Display

IPS Screen, Optical Bonding Toughened Glass Panel, 800×1280 Resolution, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

10.1″ DSI touch display, capacitive touch

Resolution 800 × 1280 (H×V) Outline Dimension 147.0 × 239.0 (mm)
Communication
Interface
MIPI 2-lane (supports ESP32-P4, RK3576, RK3506) Display area 135.96 × 217.18 (mm)
MIPI 4-lane (only RK3576 can support) Pixel pitch 0.1175 × 0.1088 (mm)
Brightness 500cd/m² (supports customization for 1000cd/m² high brightness version) Contrast ratio 800:1
Touch Chip GT9271 Operation temperature -10℃~50℃

* the 10.1inch DSI LCD is only included in the ESP32-P4-NANO-KIT-D

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

 Raspberry Pi Camera (B) front view

Sensor OV5647 CMOS size 1/4inch
PIXELS 5MP Aperture F2.0
Focal length 6mm Field of view 60.6°
Night Vision function Not support FOCUSING Manual Focus



Development Board Introduction

This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity.

Key features include:

  • High-performance MCU with RISC-V 32-bit dual-core and single-core processors
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
  • 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
  • Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.
  • Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs
  • Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation



Highly integrated and powerful performance

Adopts ESP32-P4 high-performance MCU

ESP32-P4-NANO development board, high-performance MCU

WiFi 6 and Bluetooth module

Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.

ESP32-P4-NANO development board, supports WiFi 6 and Bluetooth

Reserved PoE Module Header

More Flexible for Power Supply

ESP32-P4-NANO development board, onboard reserved PoE module header

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for ESP32-P4-NANO board In Only One Ethernet Cable



ESP32-P4-NANO development board, optional for PoE Module



ESP32-P4-NANO development board, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.



What's On Board

ESP32-P4-NANO development board, onboard components

  1. ESP32-P4NRW32
    ESP32-P4 chip with 32MB PSRAM
  2. ESP32-C6-MINI-1
    SDIO interface protocol, extending Wi-Fi 6 and Bluetooth 5 for ESP32-P4-NANO
  3. Display interface
    MIPI 2-lane
  4. Camera interface
    MIPI 2-lane
  5. USB Type-C connector
    for power supply, program burning and debugging
  6. USER-LED
    Power supply indicator
  7. BOOT button
    Press it when powering on or resetting to enter download mode
  8. RESET button



  1. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
  2. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
  3. Onboard microphone
  4. PoE module header
  5. Type-A Port
    USB OTG 2.0 High Speed port
  6. RJ45 100M Ethernet port
  7. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  8. GPIO header
  9. TF card slot
    SDIO 3.0 interface protocol

Pin definition



ESP32-P4-NANO development board, pin definition

outline dimensions

ESP32-P4-NANO development board, outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-P4-NANO
