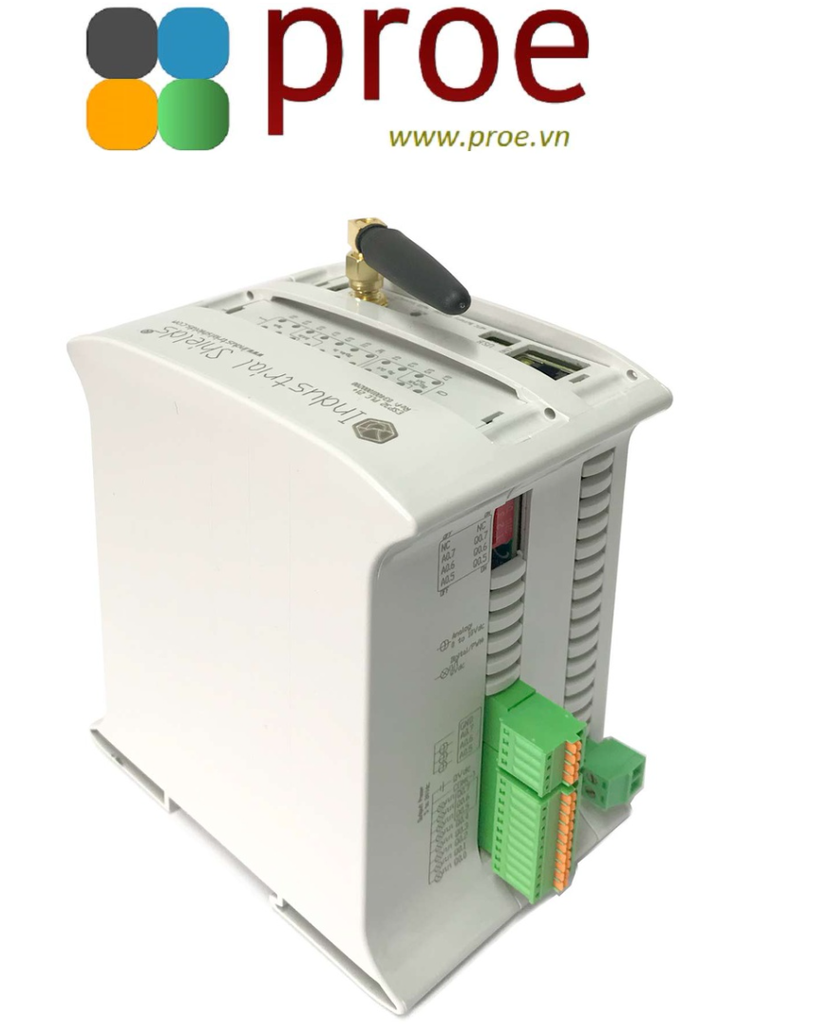

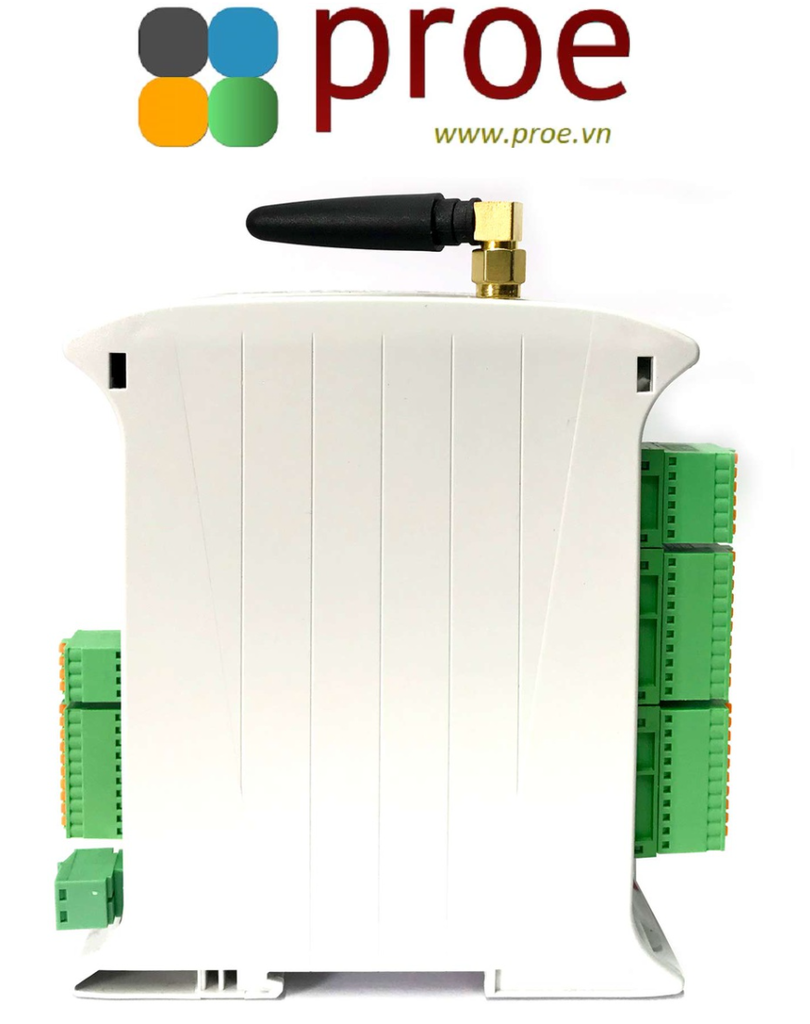

ESP32 PLC 21

  • Mã sản phẩm: ESP32 PLC 21
  • Nhà sản xuất: Industrial Shields
  • Website hỗ trợ: https://www.proe.vn
19.900.000₫

Modular PLC
This is the first equipment based on the ESP32 technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The ESP32 family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.

Instantaneous connection and coding
The ESP32 PLC is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox and the Touchberry Pi with instantaneous connection.

Total Inputs 13
Total Digital Optoisolated Inputs (4-24Vdc) 7
     Digital Optoisolated Inputs (4-24Vdc) 5
     Digital Optoisolated Inputs (4-24Vdc) | can work like interrupt Inputs INT (5-24Vdc) 2
11 bit Analog Inputs (0-10V) | Digital (4-24Vdc) Inputs configurable by software 6

Inputs note - * From the (Xx) Digital, (Yx) can be configured as Analog (Xx = Total Digital In, Yx = Number of Analog In) * From the (Xx) Digital, (Zx) can be configured as Interrupt (Xx = Total Digital In, Zx = Number of Interrupt pins)
