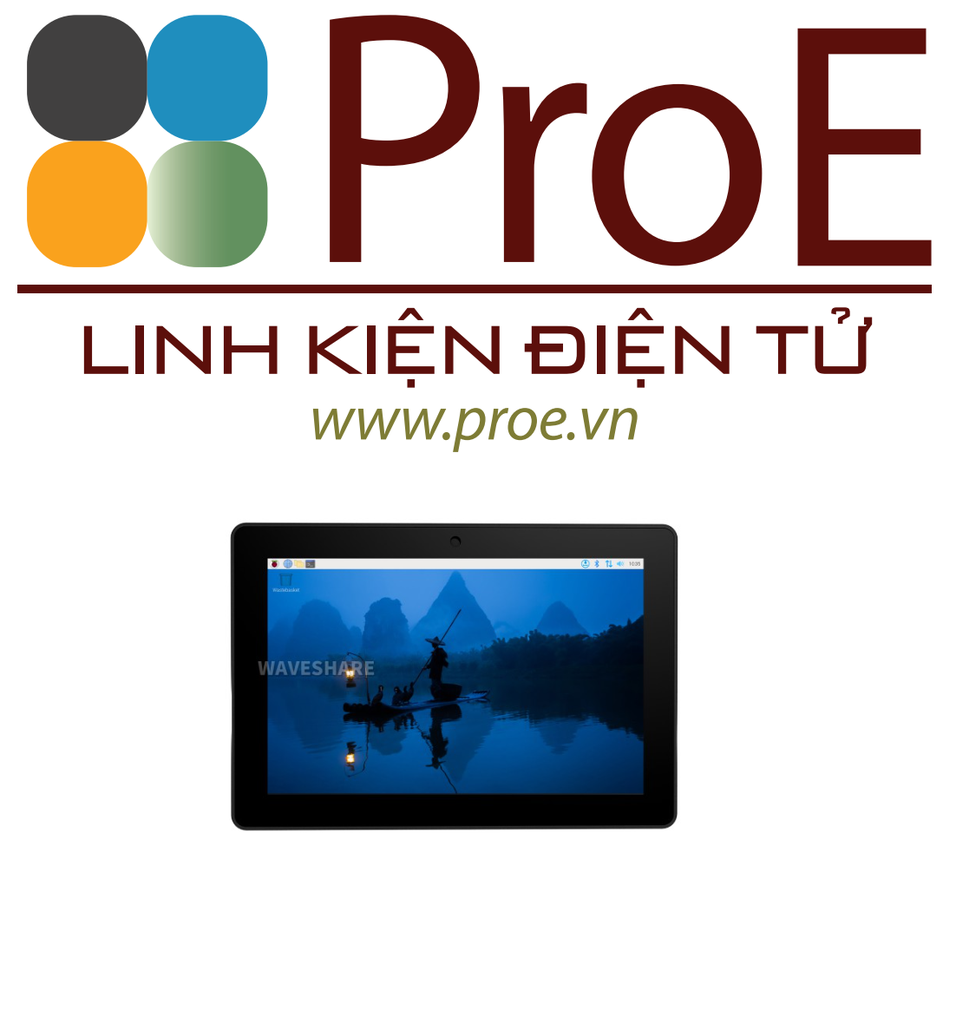

Industrial HMI All-in-one Touch Display For Raspberry Pi 5, Options For 8inch / 10.1inch

Package Content

Weight: 0.124 kg

PI5-HMI-080C

1. 8inch PI5 all-in-one display (Pi5-4GB included) x1
2. OPTIONS PSU-27W-USB-C x1
3. Mounting buckle (4PCS) x1
4. Screws pack x1

PI5-HMI-080C-ACCE

1. 8inch touch display x1
2. Aluminum alloy heatsink x1
3. Pi5-Camera-Cable-200mm x1
4. Pi5-Display-Cable-200mm x1
5. OPTIONS PSU-27W-USB-C x1
6. Thermal pad 16*16*1mm x1
7. TF card 64GB x1
8. Mounting buckle (4PCS) x1
9. Silicon button x1
10. Screws pack x1

PI5-HMI-101C

1. 10.1inch PI5 all-in-one display (Pi5-4GB included) x1
2. OPTIONS PSU-27W-USB-C x1
3. Mounting buckle (4PCS) x1
4. Screws pack x1

PI5-HMI-101C-ACCE

1. 10.1inch touch display x1
2. Aluminum alloy heatsink x1
3. Pi5-Camera-Cable-200mm x1
4. Pi5-Display-Cable-200mm x1
5. OPTIONS PSU-27W-USB-C x1
6. Thermal pad 16*16*1mm x1
7. TF card 64GB x1
8. Mounting buckle (4PCS) x1
9. Silicon button x1
10. Screws pack x1

Industrial HMI All-in-one Touch Display For Raspberry Pi 5, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat Dissipation, Optional For Raspberry Pi 5-4GB

Industrial HMI All-in-one touch Display
for Raspberry pi 5

High Resolution | 10-point Touch | Aluminum alloy case

• SizeOptions For 8″/10.1″
• Resolution1280×800
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Front Camera5MP
• Display InterfaceDual Standard HDMI
  4K Output
• Power PortType-C/Screw Terminal
• EnclosureAluminum Alloy

Size Options

8″

10.1″

Version Options

Pi5 All-in-one Display
(Raspberry Pi 5-4GB is included, assembled before shippment)

Touch Display + Accessories Only
(the Raspberry Pi 5 is NOT included)

Toughened Glass Panel

Sensitive touch control with High Resolution display, durable design

Built-in Raspberry Pi 5 (4GB)

Based On Raspberry Pi 5 with Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU

* the Raspberry Pi 5-4GB is optional.

5MP front camera

For Accurate face recognition, ensuring safety every moment

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding, display well and dustproof

Adjustable brightness via software

Excellent heat dissipation

Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries

Two power supply methods

Supports power supply via screw terminal or USB Type-C Port

VESA Mounting Support

Easily adaptable to various monitor arms, enjoy a flexible installation experience

* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

Interface Introduction

1. 5V Type-C power port
2. Standard HDMI Interface x 2
3. Gigabit Ethernet connector
4. USB3.0 port x 2
5. USB2.0 port x 2

6. TF card slot
7. Power button
8. Power indicator
9. 5V Power supply screw terminal (3.81mm pitch)
10. Debugging serial port

Dimensions

8inch version

10.1inch version

Resources & Services

Wiki: www.waveshare.com/wiki/PI5-HMI-080C
