JETSON-XAVIER-NX-8G-DEV-KIT-US

Wiki: www.waveshare.com/wiki/JETSON-XAVIER-NX-DEV-KIT

Jetson Xavier NX Module

• AI Perf: 21 TOPS

• GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores

• CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3

• Memory: 8 GB 128-bit LPDDR4x 59.7GB/s

• Storage: 16 GB eMMC 5.1

 PACKAGE CONTENT

Weight: 0.084 kg

JETSON-XAVIER-NX-8G-DEV-KIT

Waveshare NX development kit:
Jetson Xavier NX 8GB Module
JETSON-IO-BASE-B
Cooling Fan 128GB NVMe SSD Wireless network card OPTIONSPower adapter



2

3

4

1

Jetson Xavier NX AI Development Board, Waveshare NX Development Board Based On Jetson Xavier NX

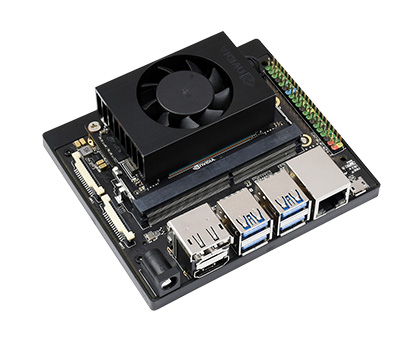

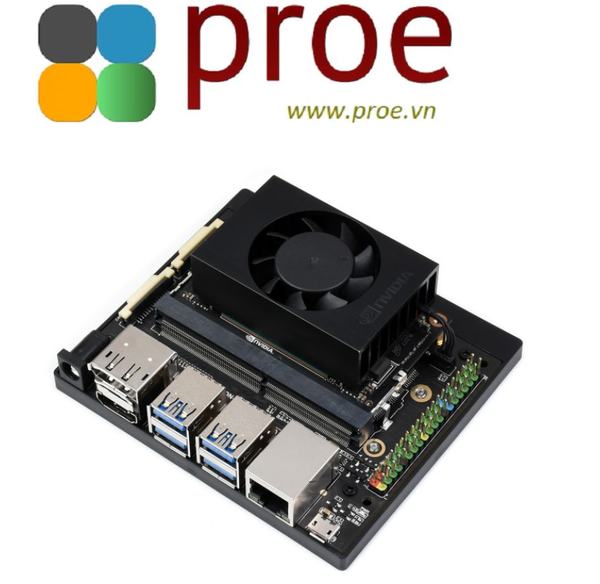

Waveshare Jetson Xavier NX Dev Kit

Alternative Solution For Jetson Xavier NX Developer Kit

Based On Jetson Xavier NX Module
AI Edge Computing Development Kit

This Is Not The NVIDIA Official Developer Kit

Based on Jetson Xavier NX Module, providing almost the same peripheral interfaces, size and thickness as the Jetson Xavier NX Developer Kit.

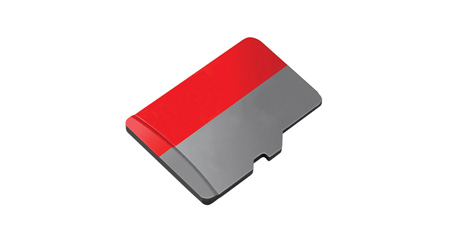

This kit includes a Xavier NX Module with onboard 16GB eMMC, does not support Micro SD card. Free 128 GB NVMe SSD, high-speed reading/writing, meet the needs of large AI project development.

Version Option

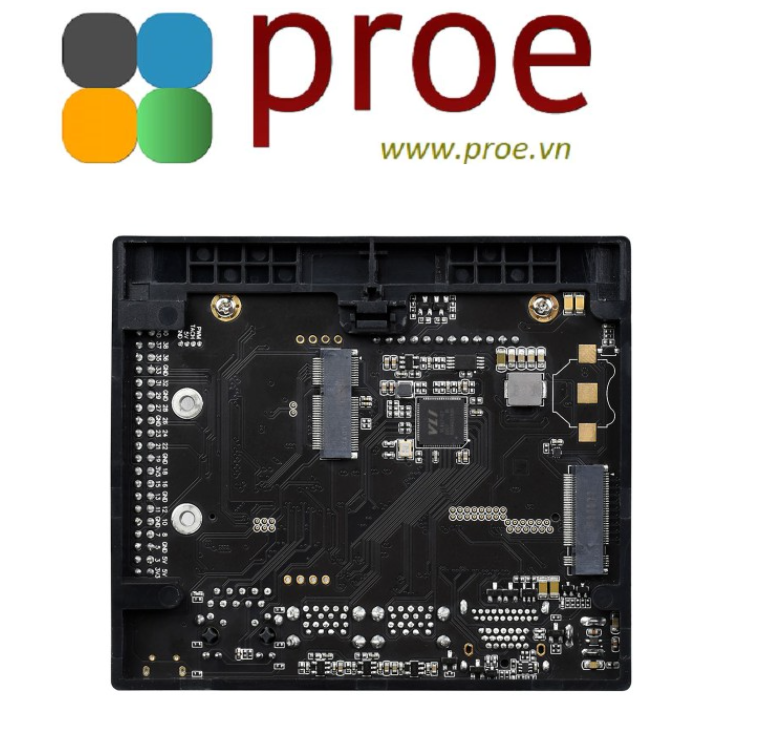

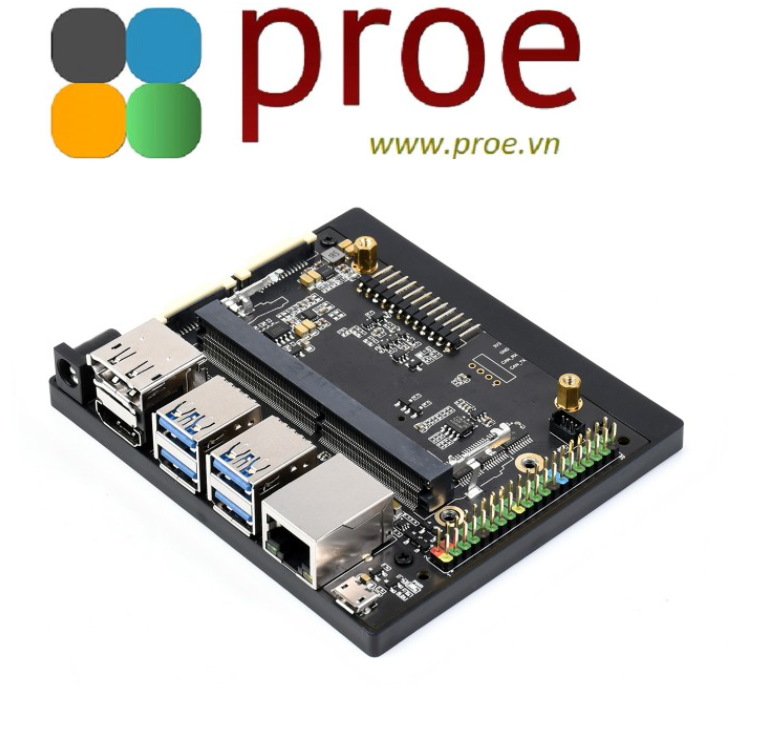

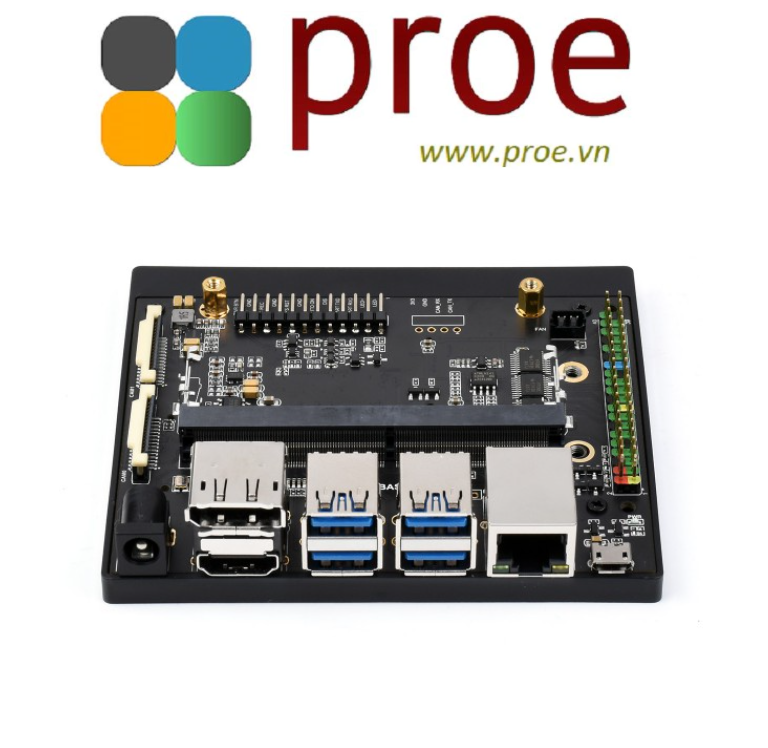

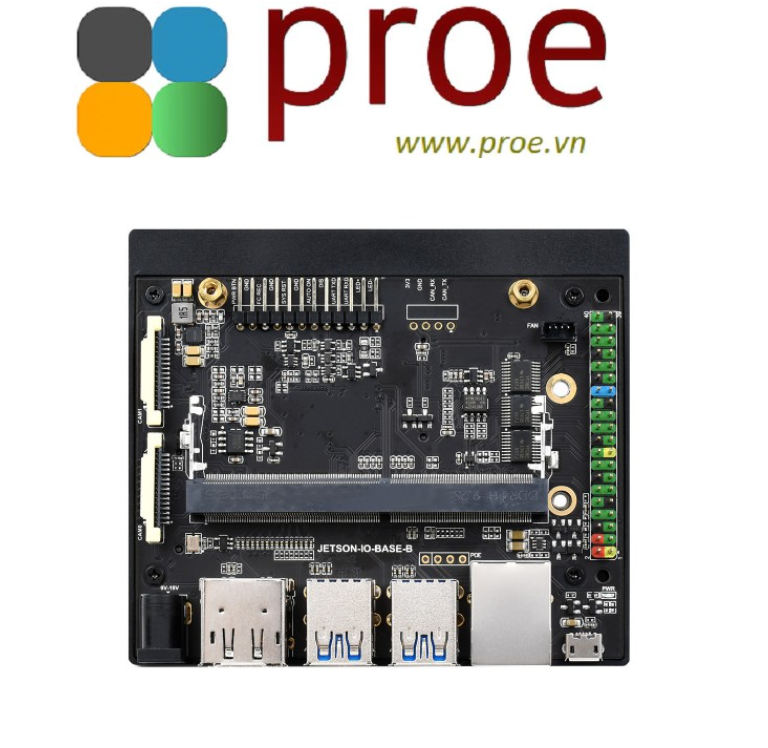

JETSON-IO-BASE-B
Carrier board, can directly insert into Jetson Xavier NX Module.

Waveshare NX development kit 8/16 GB
Includes Jetson Xavier NX 8/16 GB Module, JETSON-IO-BASE-B, 128GB NVMe SSD, power adapter and cooling fan.

Comparing The Specifications

Jetson Xavier NX Module Specification

*Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

Compact, Powerful Performance At The Edge

21 TOPS AI Performance

Up To 21 TOPS Of Accelerated Computing Delivers The Horsepower To Run Modern Neural Networks In Parallel And Process Data From Multiple High-Resolution Sensors, That Is A Requirement For Full AI Systems

With Cloud-Native Support

Jetson Xavier NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.

Ideal For Critical Embedded Applications

Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.

Image Recognition

Object Recognition

Semantic Segmentation

Pose Estimation

Monocular Depth

Position Tracking

AI Computing Neural Networks SDK

Jetson Development Pack (JetPack) Is An On-Demand All-In-One Package That Bundles And Installs All Development Software Tools For The NVIDIA Jetson Embedded Platform.

Onboard Resources

Outline Dimensions

Resources & Services
