PCAN-USB CAN Interface for USB

DESCRIPTION

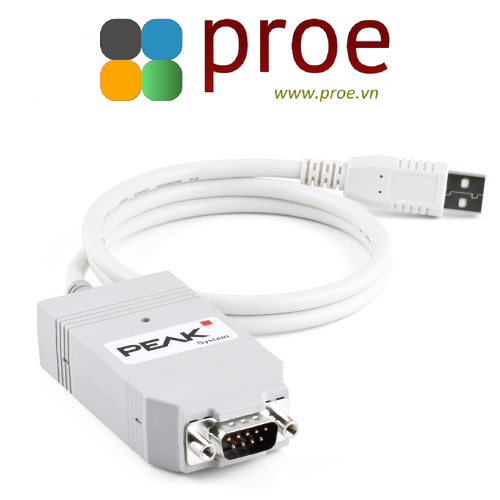

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.

The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Technical Specifications

   • Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)

   • High-speed CAN connection (ISO 11898-2)

   • Bit rates from 5 kbit/s up to 1 Mbit/s

   • Time stamp resolution approx. 42 µs

   • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

   • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)

   • NXP SJA1000 CAN controller, 16 MHz clock frequency

   • NXP PCA82C251 CAN transceiver

   • Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)

   • CAN termination can be activated through a solder jumper

   • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter

   • Voltage supply via USB

   • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Scope of Supply

   • PCAN-USB in plastic casing

   • Device drivers for Windows® 11 (x64/ARM64), 10 (x64), and Linux

   • CAN monitor PCAN-View for Windows® Details ...

   • Programming interface PCAN-Basic for developing applications with CAN connection Details ...

   • Programming interfaces for standardized protocols from the automotive sector

   • Manual in PDF format
