RP2350-ETH

Package Content

Weight: 0.008 kg

RP2350-ETH x1

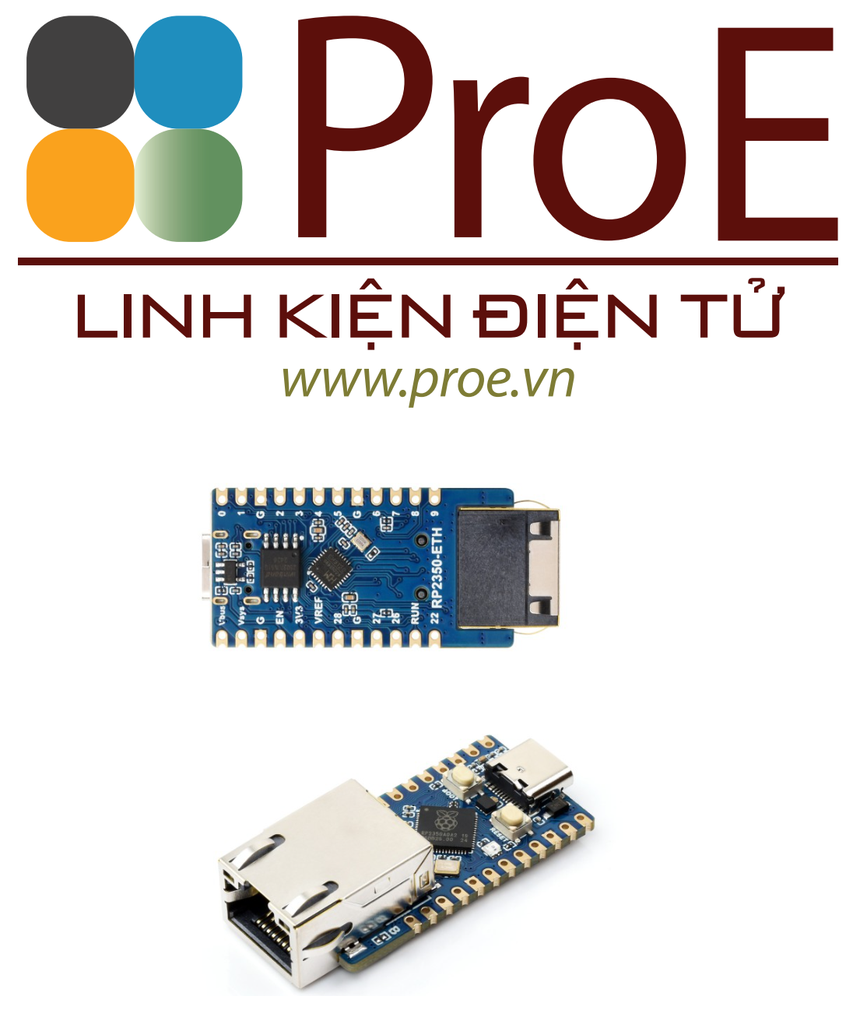

Waveshare RP2350-ETH Mini Development Board, RP2350 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based on Official RP2350 Dual-core & Dual-architecture Microcontroller

RP2350-ETH

Based On RP2350, Onboard ETH Port

Board specifications

• RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of onboard Flash memory
• Onboard CH9120 with integrated TCP/IP protocol stack
• 14 × multi-function GPIO pins, compatible with some Pico HATs
• Castellated module allows soldering direct to carrier boards
• Drag-and-drop programming using mass storage over USB
• Temperature sensor
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Tiny Size and easy integration

Castellated holes with immersion gold design, highly integrated packaging
Supports multiple ways to be embedded into various product applications

This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.

Support multiple communication modes

Supports TCP Server / TCP Client / UDP Server / UDP

controllable via network

* for reference only, please check the Package Content for the detailed part list.

Support C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

14 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

1. USB Type-C connector
   for program downloading, supports USB1.1 hosts and slave devices
2. BOOT button
   Press it when resetting to enter download mode
3. RESET button
4. RP2350
   Dual-core and dual-architecture design, up to 150 MHz operating frequency

5. RJ45 Ethernet port
6. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
7. W25Q32JVSSIQ
   4MB NOR-Flash
8. CH9120
   Ethernet serial port transmission IC

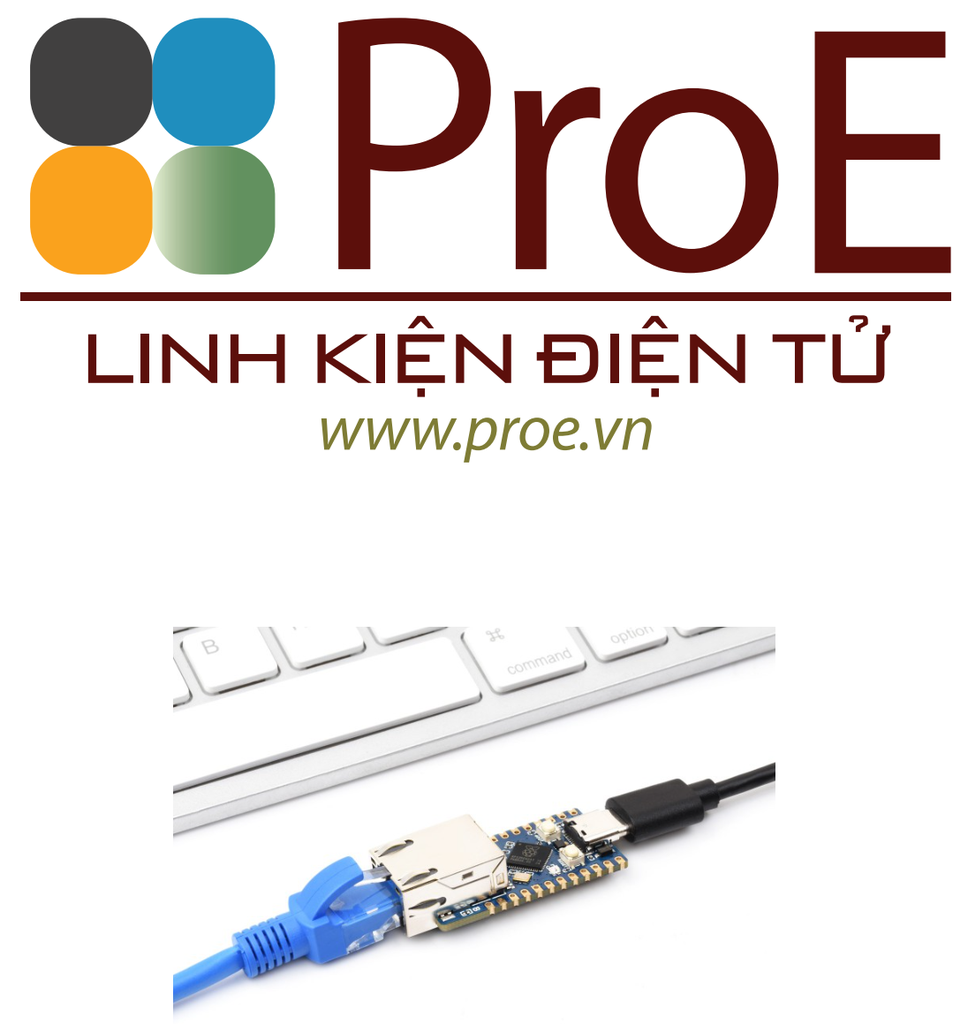

Product Show

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2350-ETH
