USB 3.2 Gen1 HUB HAT USB 3.2 Gen1 HUB HAT for Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

USB 3.2 Gen1 HUB HAT For Raspberry Pi, 4x USB 3.2 Gen1 Ports, Driver-Free

This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide 5 Gbps data rate, which means 10 times faster than USB 2.0.

Features At A Glance

• 4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
• Onboard external micro USB 5V DC power port, ensures more stable power supply
• 1x power indicator and 4x USB port indicators, easy to check the operating status
• Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
• Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
• Comes with development resources and manual

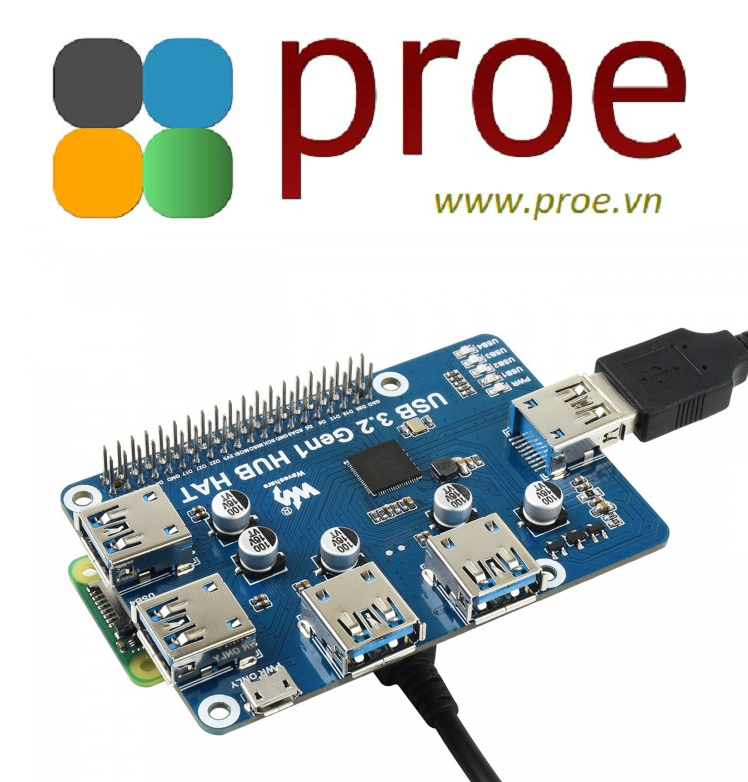

Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

Only Raspberry Pi 4B supports USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.

External Power Supply Support

Onboard External Micro USB 5V DC Power Port

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

Multiple Indicators

Easy To Check The Operating Status Of Power And USB Ports

Various USB Devices Support

Driver Free, Plug & Play

Compatible With OS Including Windows, Mac OS, Linux And Android

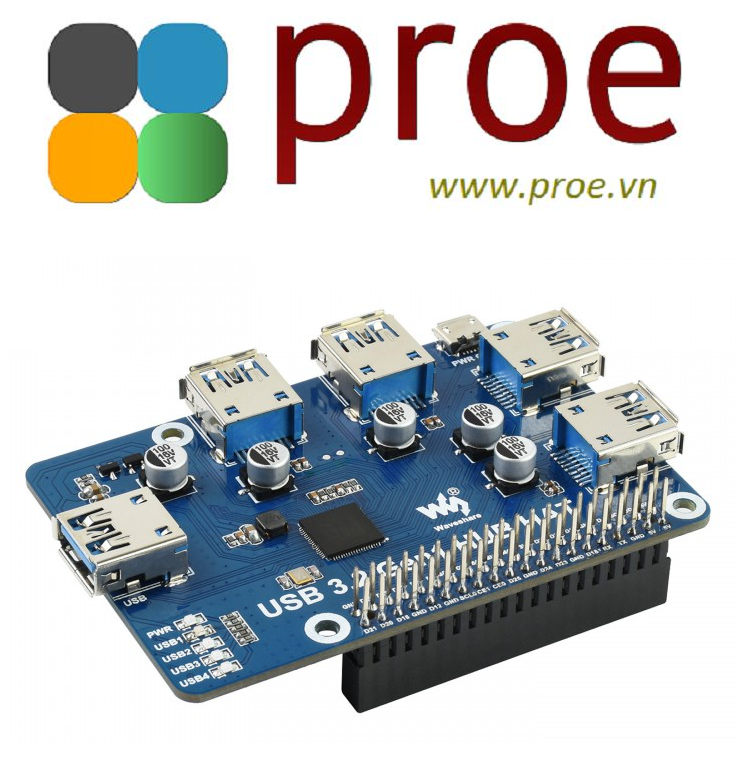

What's On Board

1. Raspberry Pi GPIO header
   for connecting Raspberry Pi
2. USB 3.2 Gen1 HUB input
   connects to Raspberry Pi USB port
3. USB 3.2 Gen1 extended ports
   USB1~USB4
4. PWR ONLY port
   for external 5V DC power input

14. VL817-Q7
    USB HUB chip
15. MX25L512COI-10G
    FLASH chip
16. PWR
    power indicator
17. USB1~USB4
    USB1~USB4 indicators

Outline Dimensions

Resources & Services

WIKI: USB_3.2_Gen1_HUB_HAT

Weight: 0.089 kg

1. USB 3.2 Gen1 HUB HAT x1
2. USB 3.0 Adapter x1
3. USB 2.0 Adapter x1
4. USB 3.0 dual plug cable x1
5. RPi screws pack (2PCS) x1
