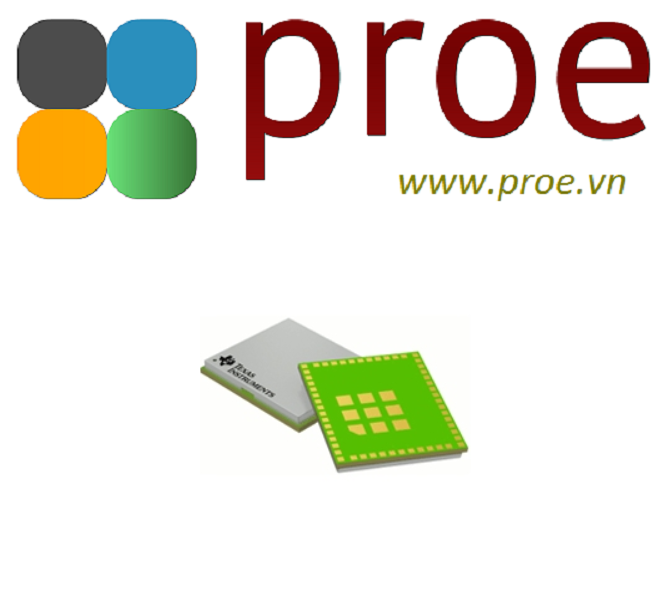

CC3235MODSF SimpleLink™ Wi-Fi CERTIFIED™ dual-band wireless module solution

Features

• Fully integrated and green/RoHS modules includes all required clocks, SPI Flash, and passives
• 802.11 a/b/g/n: 2.4 GHz and 5 GHz
• FCC, IC/ISED, ETSI/CE, and MIC Certified
• FIPS 140-2 Level 1 Validated IC Inside
• Multilayered security features, help developers protect identities, data, and software IP
• Low-power modes for battery powered application
• Coexistence with 2.4 GHz radios
• Industrial temperature: –40°C to +85°C
• CC3235MODx multiple-core architecture, system-on-chip (SoC)
• 1.27-mm pitch QFM package for easy assembly and low-cost PCB design
• Transferrable Wi-Fi Alliance^® Certification
• Application microcontroller subsystem:
  • Arm^® Cortex^®-M4 core at 80 MHz
  • User-dedicated memory
    • 256 KB RAM
    • Optional 1 MB executable Flash
  • Rich set of peripherals and timers
    • McASP Supports Two I2S Channels
    • SD, SPI, I²C, UART
    • 8-Bit Synchronous Imager Interface
    • 4-Channel 12-Bit ADCs
    • 4 General-Purpose Timers (GPT) with 16-Bit PWM Mode
    • Watchdog Timer
    • Up to 27 GPIO Pins
    • Debug Interfaces: JTAG, cJTAG, SWD
• Wi-Fi network processor subsystem:
  • Wi-Fi^® core:
    • 802.11 a/b/g/n 2.4 GHz and 5 GHz
    • Modes:
      • Access Point (AP)
      • Station (STA)
      • Wi-Fi Direct^® (only supported on 2.4 GHz)
    • Security:
      • WEP
      • WPA™/WPA2™ PSK
      • WPA2 Enterprise
  • Internet and application protocols:
    • HTTPs server, mDNS, DNS-SD, DHCP
    • IPv4 and IPv6 TCP/IP stack
    • 16 BSD sockets (fully secured TLS v1.2 and SSL 3.0)
  • Built-in power management subsystem:
    • Configurable low-power profiles (always on, intermittently connected, tag)
    • Advanced low-power modes
    • Integrated DC/DC regulators
• Multilayered security features:
  • Separate execution environments
  • Networking security
  • Device identity and key
  • Hardware accelerator cryptographic engines (AES, DES, SHA/MD5, CRC)
  • File system security (encryption, authentication, access control)
  • Initial secure programming
  • Software tamper detection
  • Secure boot
  • Certificate signing request (CSR)
  • Unique per device key pair
• Application throughput
  • UDP: 16 Mbps
  • TCP: 13 Mbps
• Power-Management Subsystem:
  • Integrated DC/DC converters support a wide range of supply voltage:
    • Single wide-voltage supply, VBAT: 2.3 V to 3.6 V
  • Advanced low-power modes:
    • Shutdown: 1 µA, Hibernate: 5.5 µA
    • Low-power deep sleep (LPDS): 120 µA
    • Idle connected (MCU in LPDS): 710 µA
    • RX traffic (MCU active): 59 mA
    • TX traffic (MCU active): 223 mA
  • Wi-Fi TX power
    • 2.4 GHz: 16 dBm at 1 DSSS
    • 5 GHz: 15.1 dBm at 6 OFDM
  • Wi-Fi RX sensitivity
    • 2.4 GHz: –94.5 dBm at 1 DSSS
    • 5 GHz: –89 dBm at 6 OFDM
• Additional integrated components
  • 40.0 MHz crystal
  • 32.768 kHz crystal (RTC)
  • 32 Mbit SPI Serial Flash
  • RF filters, diplexer and passive components
• Footprint compatible QFM package
  • CC3235MODx: 1.27-mm pitch,
    63-pin, 20.5-mm × 17.5-mm
• Module Supports SimpleLink Developer’s Ecosystem
