Combo Jetson NANO 16GB EMMC

Bảo  hành  chu đáo  tận  tình, nhanh chóng trong vòng  12  tháng   theo tiêu  chuẩn  Nhà  sản  xuất

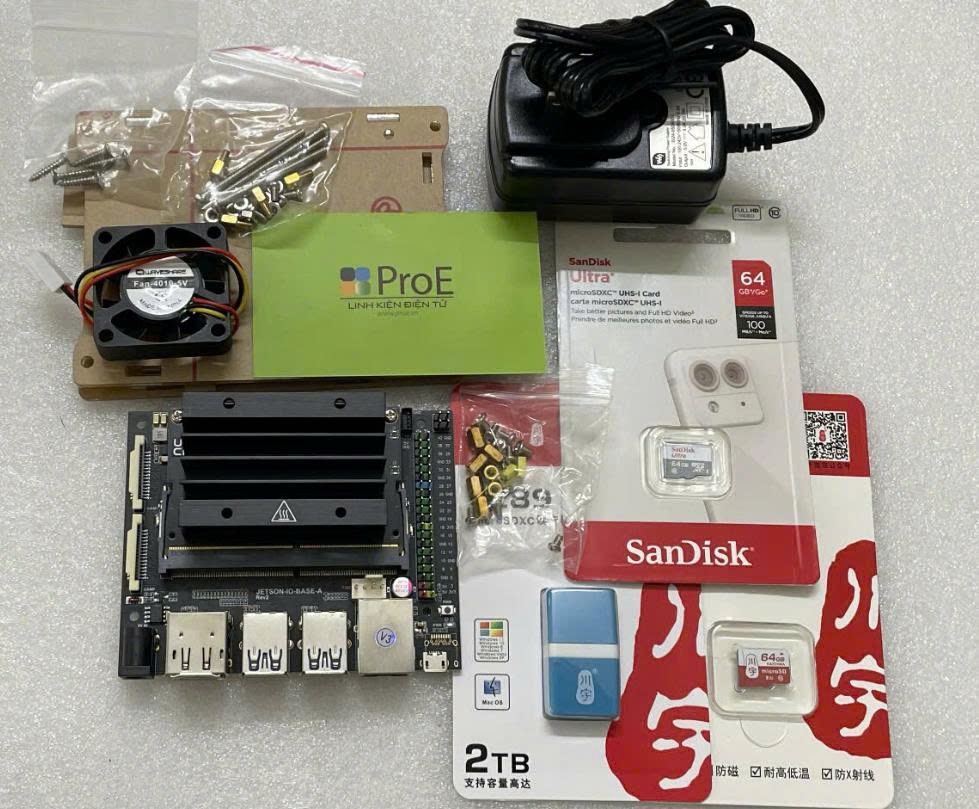

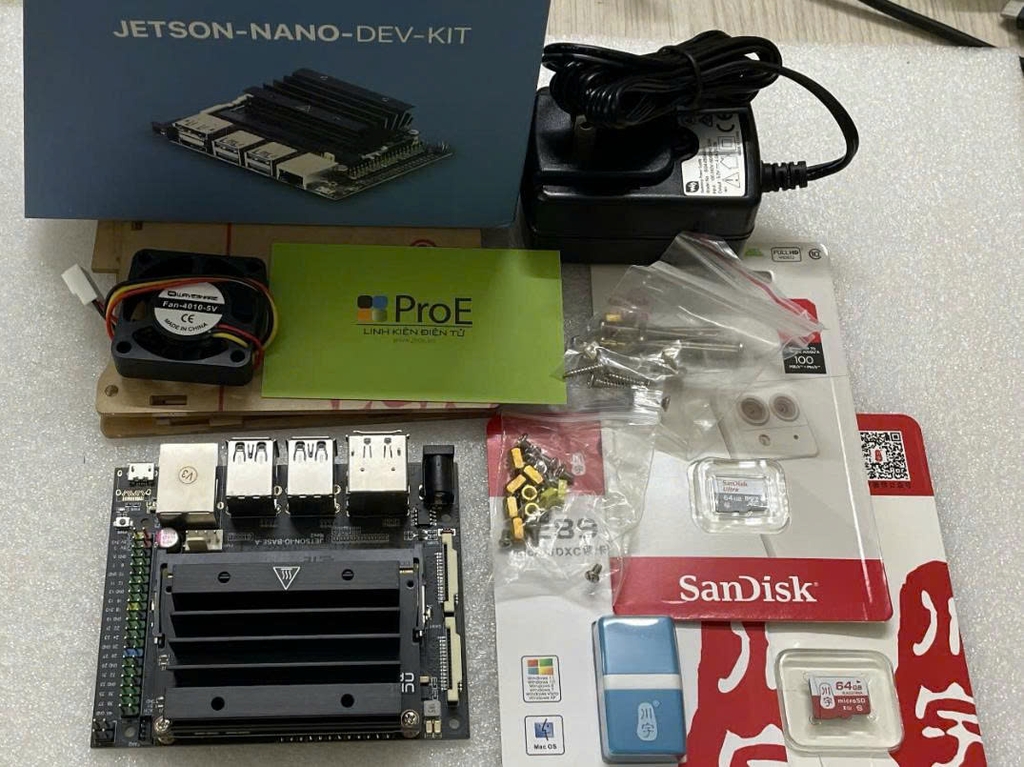

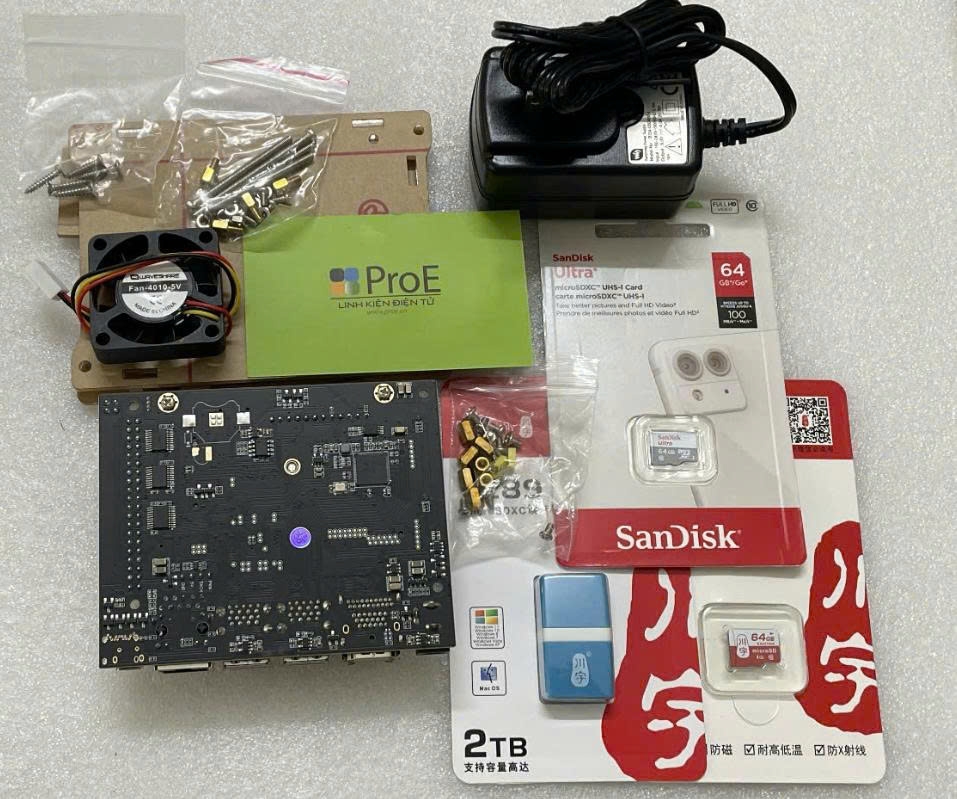

Combo máy tính nhúng Jetson Nano Dev Kit 4GB RAM 16GB EMMC  bao gồm

Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, Optional Jetson Nano Core Module

Jetson Nano Development / Expansion Kit

Compatible With Both Jetson Nano And Jetson Xavier NX

Alternative solution of B01 kit

Based on AI computers Jetson Nano and Jetson Xavier NX, providing almost the same peripheral interfaces, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.

Comparing The Appearance

Compatible With Expansion Modules And Cases Of The Jetson Nano Developer Kit (B01)

Jetson Nano Developer Kit (B01)

JETSON-NANO-DEV-KIT

Comparing The Storage Solution

Default Storage

Jetson Nano Developer Kit (B01)
The Nano module included in the B01 kit has no storage onboard, external micro SD card is required to be used as the system startup disk

JETSON-NANO-DEV-KIT
Includes a Nano module with onboard 16GB eMMC, more stable reading/writing, no extra micro SD card required for startup disk, providing adequate space for installing system image and development/study requirement in most cases

External Storage Option

Jetson Nano Developer Kit (B01)
The B01 kit requires an external micro SD card to be used as the system startup disk

JETSON-NANO-DEV-KIT
Comes with a 32GB USB drive, USB 3.2 Gen 1 200MB/s reading speed, competent for complicate development projects

Comparing The Specifications

Compatible With Two Core Modules

The Carrier Board Is Compatible With Jetson Nano And Jetson Xavier NX
Convenient For Hardware Upgrading

Play Around With Binocular Vision

Supports 2-Lanes CSI Camera, Suitable For Binocular Vision Applications Such As Parallax Algorithm Ranging, Facial Recognition, Organism Detection, VR Video Recording...

Dual 4K Outputs

Supports DisplayPort And HDMI High Definition Ports

4x High Speed USB3.0

USB3.0 High Speed Data Transmission, Allows More USB Peripherals

Color-Coded 40PIN GPIO Header

Color-Coded Header Pins With Clear Labels, Handy For Use

Introduction

1. Core module socket
2. M.2 Key E connector
3. PoE pins: PoE module is not included
4. 40PIN GPIO header
5. Micro USB port: for 5V power input or for USB data transmission
6. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
7. 4x USB 3.0 port
8. HDMI output port
9. DisplayPort connector
10. DC jack: for 5V power input
11. 2x MIPI CSI camera connector

Outline Dimensions

Ordering Options

JETSON-IO-BASE-A
The carrier board ONLY, compatible with both Jetson Nano and Jetson Xavier NX

JETSON-NANO-DEV-KIT
The carrier board, along with Jetson Nano module, 32GB USB drive, and official heatsink

More Available Kits

JETSON-NANO-DEV-KIT-A: wireless NIC kit
With drive-free 5G (867 Mbps) / 2.4 G (300 Mbps) wireless NIC, it supports Bluetooth and WiFi dual modes, and 6DB high-gain dual antennas effectively improve penetration, and make data transmission wider and smoother, which is suitable for mobile networking scenarios. Note that only the Jetson Nano system is drive-free.

JETSON-NANO-DEV-KIT-B: single camera vision kit
If you want to play AI intelligent applications such as face recognition, road sign recognition and license plate recognition, this package is very suitable for you. With an 8 megapixel (3280 x 2464) high-definition camera, it can be used easily in various application scenarios.

JETSON-NANO-DEV-KIT-C: touch display kit
If the single camera vision package can't meet the requirements, this package with 7-inch IPS touch screen is undoubtedly a better choice. The 1024 x 600 pixel screen can display the images taken by the camera in real time. If you are a beginner, you can also benefit from the graphical operating system, killing two birds with one stone.

JETSON-NANO-DEV-KIT-D: binocular vision kit
In addition to realizing AI applications such as face recognition, road marking line recognition and license plate recognition of conventional single camera, Binocular cameras can achieve effects that single camera can't, For example, binocular parallax algorithm ranging, stereo vision, depth vision, and VR video recording. This package is equipped with an 8 megapixel (3280 x 2464, each channel) IMX219 camera. On the basis of basic camera functions, it also has additional functions such as gyroscope, accelerometer and magnetometer. Sounds not bad?!

JETSON-NANO-DEV-KIT-E: binocular all-in-one kit
It is a good idea to add an aluminum alloy case on the basis of binocular vision package, and all accessories into the mini box. The camera bracket rotating at 180 degrees is one of its major features. The whole case is firm, dustproof and beautiful, and it also has good performance in heat dissipation capability.

JETSON-NANO-DEV-KIT-F: acrylic case kit
Give the lovely host an acrylic case. Compared with the bulkiness of aluminum alloy case, acrylic is light and concise, which can play a basic protective role.

Resources & Services

Wiki: JETSON-NANO-DEV-KIT
