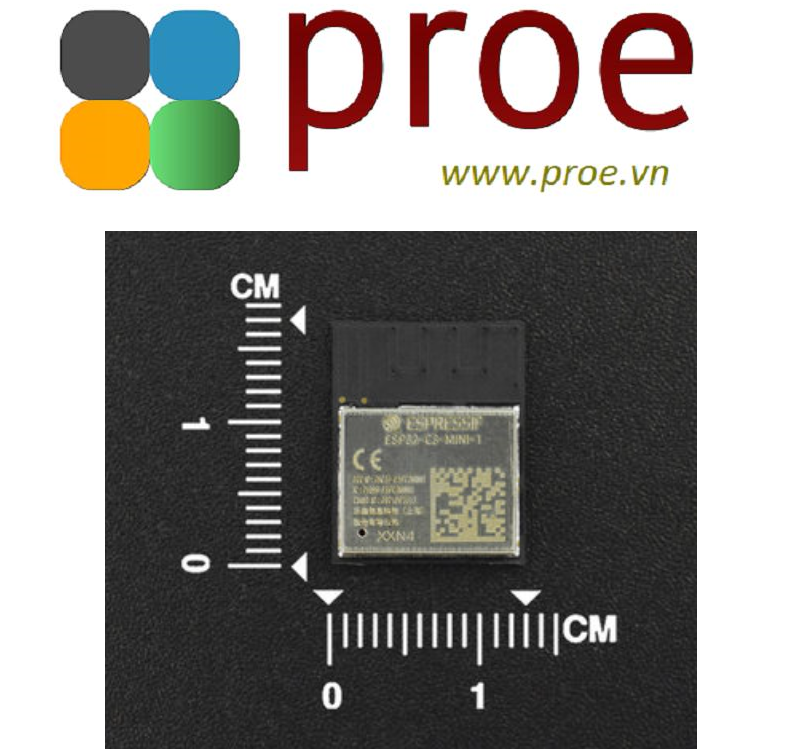

ESP32-C3-MINI-1-N4 Module (PCB antenna)

INTRODUCTION

ESP32-C3-Mini-1 is a universal Wi-Fi and low power Bluetooth LE module. The rich set of peripherals and a small size make the two modules an ideal choice for smart homes, industrial automation,health care, consumer electronics, etc.

ESP32-C3-MINI-1-N4 is equipped with ESP32-C3FN4 chip and equipped with 4 MB embedded flash, belonging to esp32-C3 series chip. ESP32-C3 series of chips have a 32-bit RISC-V single-core processor. They integrate a rich set of peripherals, ranging from UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller, USB Serial/JTAG controller, temperature sensor, and ADC. It also includes SPI, Dual SPI and Quad SPI interfaces.

Pin Layout

Pin Description

SPECIFICATION

• ESP32-C3FN4 embedded,32-bit RISC-V single-core processor, up to 160 MHz
• 384 KB ROM
• 400 KB SRAM
• 8 KB RTC SRAM
• 4 MB SPI flash
• Operating Voltage/Power Supply: 3.0~3.6V
• Operating Temperature Range: –40~85°C

DOCUMENTS

• Datasheet
