Long-wave IR Thermal Imaging Camera Module, Raspberry Pi IR Camera, 80×62 Pixels, Options for FOV and Connector

  • Mã sản phẩm: Thermal Camera HAT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
4.000.000₫ Giá thị trường: Tiết kiệm:
Connector Options
FOV Options

Wiki: www.waveshare.com/wiki/Thermal_Camera_HAT

PACKAGE CONTENT

Weight: 0.021 kg

Thermal Camera HAT

  1. Thermal Camera HAT x1
  2. 40PIN female header x1
  3. FPC 15 PIN cable 0.3mm pitch ~100mm x1
  4. Screws pack x1

Thermal Camera HAT package contains

Thermal USB Camera

  1. Thermal USB Camera x1
  2. Dual Type-C cable ~1m x1

Thermal USB Camera package contains

Thermal-90 Camera HAT

  1. Thermal-90 Camera HAT x1
  2. 40PIN female header x1
  3. FPC 15 PIN cable 0.3mm pitch ~100mm x1
  4. Screws pack x1

Thermal-90 Camera HAT package contains

Thermal-90 USB Camera

  1. Thermal-90 USB Camera x1
  2. Dual Type-C cable ~1m x1

Thermal-90 USB Camera package contains

DESCRIPTION

Long-Wave IR Thermal Imaging Camera Module, 80×62 Pixels, 45°FOV, Available With 40PIN GPIO Header Or Type-C Port

Long-Wave IR Thermal Imaging
Camera Module

80×62 Pixels IR Array

Small Size | Non-contact | Motion Detection



Features At A Glance

This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.

Provides two version options: Thermal Camera HAT with Raspberry Pi 40PIN GPIO header and Thermal USB Camera with Type-C port.

Key features include:

  • Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels
  • Continuous operation and thermal imaging video stream due to shutterless design
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Main applications:

  • High precision long-term non-contact temperature online monitoring
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security & safety, intrude/motion detection
  • Small Target Thermal Analysis, Heat Trend Analysis and Solutions

Version Options

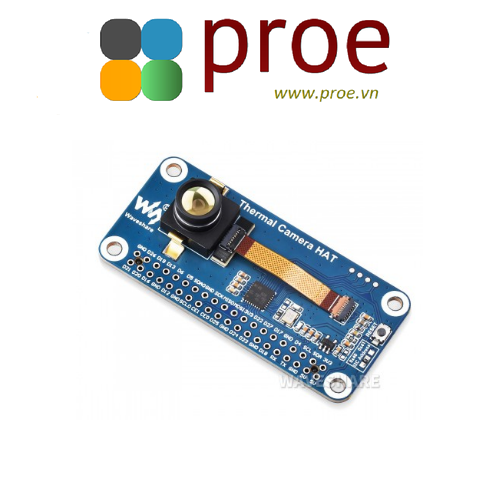

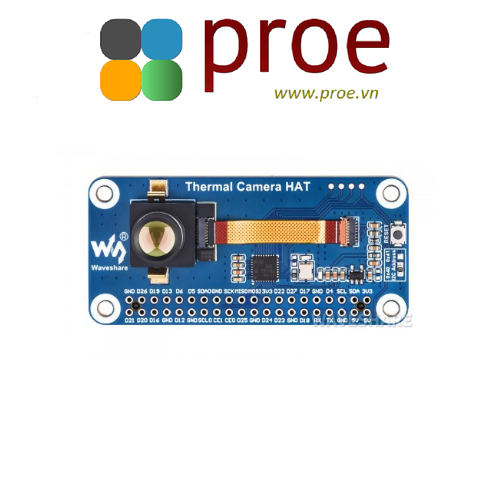

Thermal Camera HAT
Onboard 40PIN GPIO header



Thermal USB Camera
Onboard Type-C connector

Specifications

POWER SUPPLY 5V
OPERATING CURRENT 61mA@5V
WAVELENGTH RANGE 8~14μm
OPERATING TEMPERATURE -20~85℃
TARGET TEMPERATURE -20~400℃
REFRESH RATE 25 FPS (Max)
FOV 45°(H)×45°(V)
NOISE EQUIVALENT
TEMPERATURE DIFFERENCE
150mK
MEASURING ACCTRACY ±2℃ (ambient temp. 10~70℃)
DIMENSIONS Thermal Camera HAT: 65.0×30.5mm
Thermal USB Camera: 62.0×13.0mm



Thermal Camera HAT
With Onboard 40PIN GPIO Header

Compatible With Raspberry Pi Boards

Connect to Raspberry Pi 4B, extending the camera with the FPC cable



Directly connect to Raspberry Pi ZERO

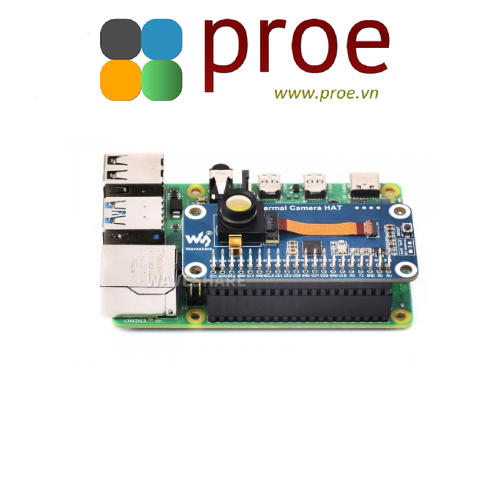

Directly connect to Raspberry Pi 4B

Thermal USB Camera
With Onboard Type-C Connector

Compatible With Windows PC, Android Phone, Etc

Connect to PC



Connect to Android phone

* for reference only, the Raspberry Pi boards and hosts above are NOT included



Application Scenarios

Product Show



Outline Dimensions
