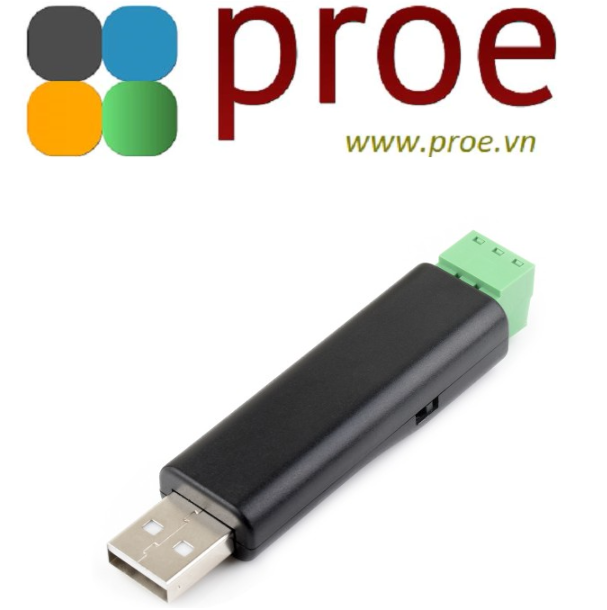

USB TO RS232/485
- Mã sản phẩm: USB TO RS232/485
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
320.000₫
- PACKAGE CONTENT
-
Weight: 0.065 kg
- USB TO RS232/485 x1
- USB-A male to female cable x1
- Screwdriver x1
1
2
3
USB To RS232/485 Serial Converter, Onboard Original FT232RNL Chip, Multiple Devices Applicable, Multi-OS Compatible
USB TO RS232/485 Serial Converter
USB To RS232 or USB To RS485
FT4232HL | Stable Transmission | Multiple Devices Applicable
Multi-OS Compatible | Compact Size
Features At A Glance
- Adopts original FT232RNL chip, fast communicating, stable and reliable, better compatibility
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
- Onboard RS232/485 communication switching circuit, configured by switch
- Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via switch
- 3 LEDs for indicating the power and transceiver status
- Adopts ABS protection case, compact size, portable and easy to use, cost-effective
Specifications
| PRODUCT TYPE | USB to RS232/485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS232/485 | |
| USB | Operating voltage | 5V |
| Connector | Type-A male | |
| Protection | 200mA self-recovery fuse | |
| Transmission distance | About 5m | |
| RS232 | Connector | Screw terminal |
| Transmission distance | About 15m | |
| Transmission mode | Point-to-point | |
| Baud rate | 300bps ~ 921600bps | |
| RS485 | Connector | Screw terminal |
| Direction control | Hardware automatic control | |
| Protection | TVS diode, surge protection & ESD protection (onboard 120R balancing resistor) | |
| Transmission distance | About 1.2km(low rate) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Baud rate | 300bps ~ 921600bps | |
| LED INDICATORS | PWR | Red power indicator, lights up when there is USB connection and voltage is detected |
| TXD | Green TX indicator, lights up when the USB port sends data | |
| RXD | Blue RX indicator, lights up when the device port sends data back | |
| OPERATING ENVIRONMENT | Temperature | -15℃ ~ 70℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 | |
Onboard Original Chip
Onboard Original FT232RNL Chip, Providing Better Stability And Compatibility
Onboard Interface
| ① 120Ω resistor switch | enable or disable RS485 terminal 120Ω resistor |
| ② RS232/485 switch | for switching RS232 for RS485 communication |
| ③ RX_ B: | RS232 receive data / RS485 differential signal negative B- |
| ④ TX_ A: | RS232 transmit data / RS485 differential signal positive A+ |
| ⑤ GND: | RS232/485 signal ground |
Multi System Support
Supports Mac, Linux, Android, Win11/10/8.1/8/7, Etc.
Outline Dimensions
Resources & Services
WIKI: www.waveshare.com/wiki/USB_TO_RS232/485
