USB to RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-mount and Rail-Mount Support
- Mã sản phẩm: USB TO RS232/485 (B)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
650.000₫
WIKI: www.waveshare.com/wiki/USB_TO_RS232/485_(B)
PACKAGE CONTENT
Weight: 0.063 kg
- USB TO RS232/485 (B) x1
- USB-A male to USB-B male cable ~1.2m x1
- Screwdriver x1
1
2
3
DESCRIPTION
USB To RS232/485 Industrial Grade Isolated Converter, Onboard Original FT232RNL Chip, Multiple Protection, Wall-Mount And Rail-Mount Support
USB TO RS232/485
Industrial Grade Isolated Converter
FT232RNL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible
Features At A Glance
- Onboard original FT232RNL chip. Fast communication, stable and reliable, better compatibility
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard 120R terminal resistor on the RS485 interface, enabled/disabled via jumper
- 3 LEDs for indicating the power and transceiver status
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Specifications
| PRODUCT TYPE | Industrial grade isolated USB to RS232/485 converter | |
|---|---|---|
| HOST PORT | USB | |
| DEVICE PORT | RS232/485 | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 200mA self-recovery fuse, output isolation | |
| Transmission distance | About 5m | |
| ISOLATED RS232 | Connector | Screw terminal |
| Transmission distance | About 15m | |
| Transmission mode | Point-to-point | |
| Baud rate | 300bps ~ 921600bps | |
| ISOLATED RS485 | Connector | Screw terminal |
| Direction control | Hardware automatic control | |
| Protection | 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor) | |
| Transmission distance | About 1.2km (low rate) | |
| Transmission mode | Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Baud rate | 300bps ~ 921600bps | |
| LED INDICATORS | PWR | Red power indicator, lights up when there is USB connection and voltage is detected |
| TXD | Green TX indicator, lights up when the USB port sends data | |
| RXD | Blue RX indicator, lights up when the device ports send data back | |
| OPERATING ENVIRONMENT | Temperature | -15℃ ~ 70℃ |
| Humidity | 5%RH ~ 95%RH | |
| OPERATING SYSTEM | Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 | |
| APPEARANCE | Enclosure | Rail-mount ABS case, suitable for 35mm DIN rail |
| Dimensions | 81.9 × 54.0 × 32.0mm | |
Onboard Original Chips
Onboard Original FT232RNL Chips, Providing Better Stability And Compatibility
Galvanic Isolated Design
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

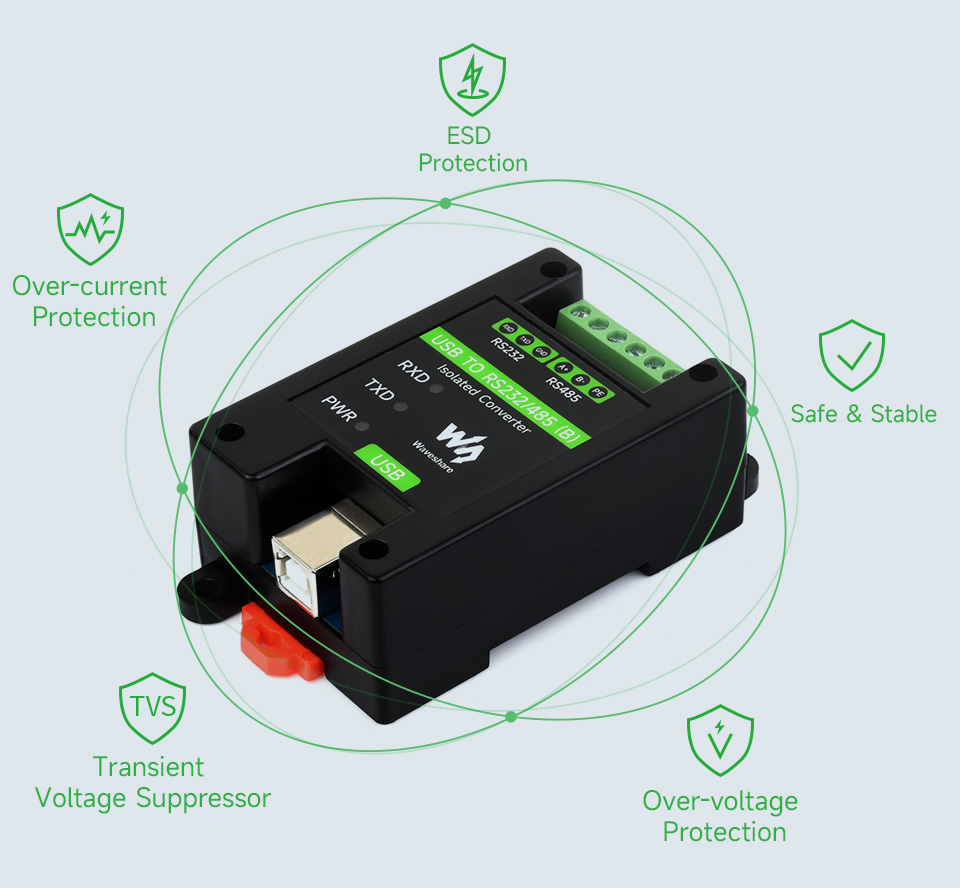

Multiple Protection, Safe And Stable
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Multi System Support
Supports Mac, Linux, Android, Win11/10/8.1/8/7, Etc.
Interface Introduction

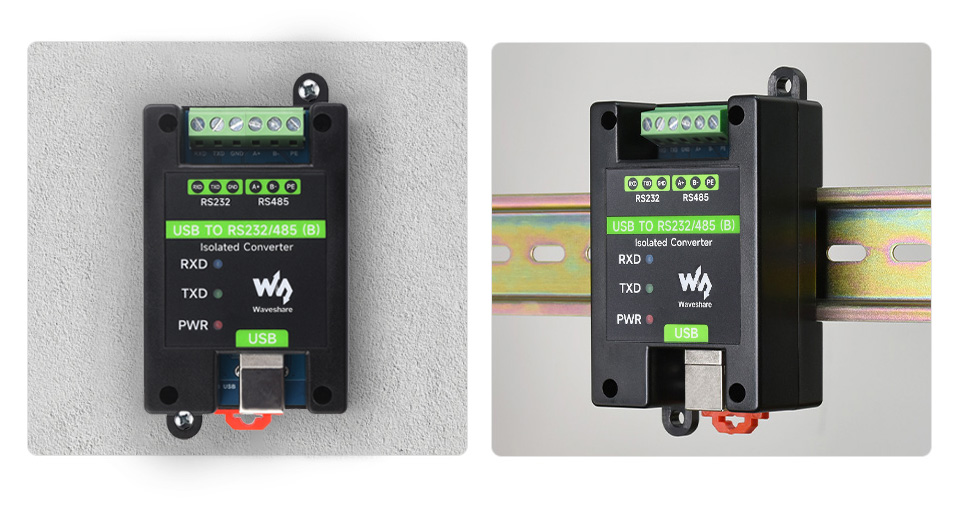

Wall-Mount And Rail-Mount Support
Outline Dimensions
