PCIe TO 4G/5G M.2 USB3.2 HAT+

PACKAGE CONTENT

Weight: 0.073 kg

• The 4G/5G module is NOT included, please purchase separately according to your needs.
• Comes with 5G-4IN1-PCB antenna by default, if you need an external 5G antenna for outdoor testing, you can choose 5G/4G/3G/2G External Antenna or 5G/4G/3G/GNSS External Antenna.

1. PCIe TO 4G/5G M.2 USB3.2 HAT+ x1
2. 5G-4IN1-PCB Antenna x1
3. 16P-Cable-40mm cable x1
4. IPEX1 to IPEX4 cable ~13cm 4PCS x1
5. Screws pack x1

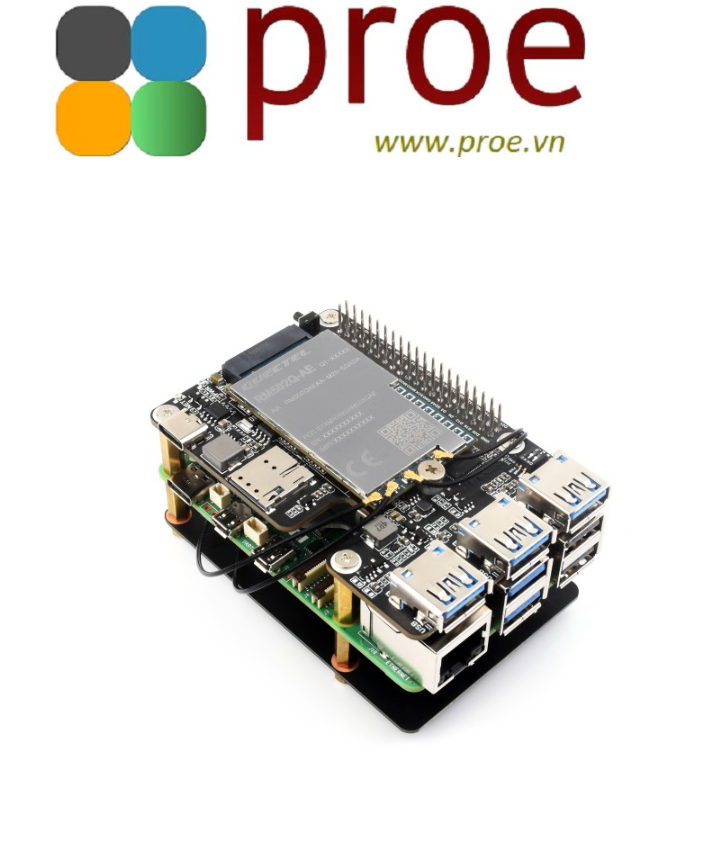

PCIe To M.2 4G/5G And USB 3.2 HAT For Raspberry Pi 5, Compatible With SIMCom/Quectel 4G/5G Modules, Comes With 5G-4IN1-PCB Antenna, Raspberry Pi 5 HAT, High-Speed Networking

PCIe TO M.2 4G/5G And USB3.2 HAT

Suitable For Raspberry Pi 5

Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface

* for reference only, the Raspberry Pi 5 and 5G module are NOT included.

Features At A Glance

• Designed for Raspberry Pi 5, HAT+ standard design with onboard I2C EEPROM, and supports Raspberry Pi 40PIN GPIO stackable expansion
• Extends 3x high-speed USB 3.2 Gen1 ports for connecting more peripherals
• Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
• Onboard Type-C port for connecting to a PC for 4G/5G networking, debugging and firmware updating, or external power supply input
• Onboard power monitoring chip for real-time measurement of voltage, current and power
• Onboard SIM card slot for NANO-SIM card
• Onboard Reset button, Power and Network indicators for easy debugging and monitoring the operating status
• Comes with customized 5G-4IN1-PCB Antenna for neat wiring management, supports top or bottom installation
• Reserved airflow vent and mounting holes for cooling fan to increase airflow and provide better heat dissipation

Designed For Raspberry Pi 5, HAT+ Standard

Onboard PCIe Interface For Directly Connecting To Raspberry Pi 5 Via 16PIN Cable

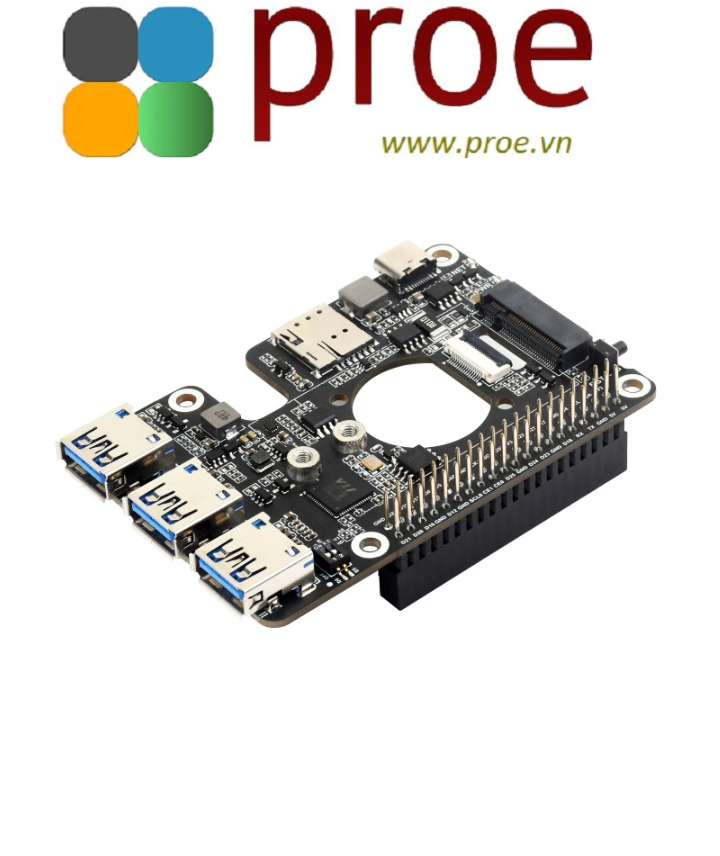

More USB Capability For Raspberry Pi 5

Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

Compatible With Multiple SIMCom/Quectel 4G/5G Modules With M.2 Key B Interface

Onboard M.2(NGFF) Key B Slot, Tested To Support SIM7600XX-M.2, SIM82XX And RM5XX Series Modules, Compatible With 3042/3052 Packages

5G MODULE		RM502Q-AE	RM520N-GL	RM530N-GL	SIM8262E-M2	SIM8262A-M2	SIM7600G-H-M.2
5G Standard		3GPP R15	3GPP R16				-
5G		Sub-6 GHz		Sub-6G & mmWave	Sub-6 GHz		-
Applicable Region		Global (except China)	Global		except Americas	Americas	Global
Dimensions		30.0 × 52.0 × 2.3 (mm)			30.0 × 42.0 × 2.3 (mm)		42.0 × 31.4 × 3.8 (mm)
FREQUENCY BAND
5G	5G NR	-		n257, n258, n260, n261	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	-
	5G NR NSA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
	5G NR SA	n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
LTE	LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71			B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
	LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48			B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41
	LAA	B46			-
UMTS	WCDMA	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19		B1, B5, B8	B2, B4, B5	B1, B2, B4, B5, B6, B8, B19
GNSS		GPS / GLONASS / BeiDou (Compass) / Galileo / QZSS (QZSS is not supported on RM502Q-AE)			GPS / GLONASS / BeiDou / Galileo / QZSS
DATA RATE
5G mmWave		-		downlink 4 Gbps; uplink 1.4 Gbps	-
5G SA Sub-6		downlink 4.2 Gbps; uplink 450 Mbps	downlink 2.4 Gbps; uplink 900 Mbps		downlink 2.4 Gbps; uplink 500 Mbps		-
5G NSA Sub-6		downlink 5 Gbps; uplink 650 Mbps	downlink 3.4 Gbps; uplink 550 Mbps
LTE		downlink 2 Gbps; uplink 200 Mbps	downlink 1.6 Gbps; uplink 200 Mbps		downlink 1.0 Gbps; uplink 200 Mbps		downlink 150 Mbps; uplink 50 Mbps
UMTS		downlink 42 Mbps; uplink 5.76 Mbps
Note: The 4G/5G module is NOT included, please purchase separately. The above are the supported modules after testing; If you need to use with other modules, please confirm with the module manufacturer for interface compatibility.

Multi-System Support

Supports Systems Such As Raspberry Pi OS, Ubuntu, OpenWRT, Etc.

Raspberry Pi OS

OpenWRT

Ubuntu

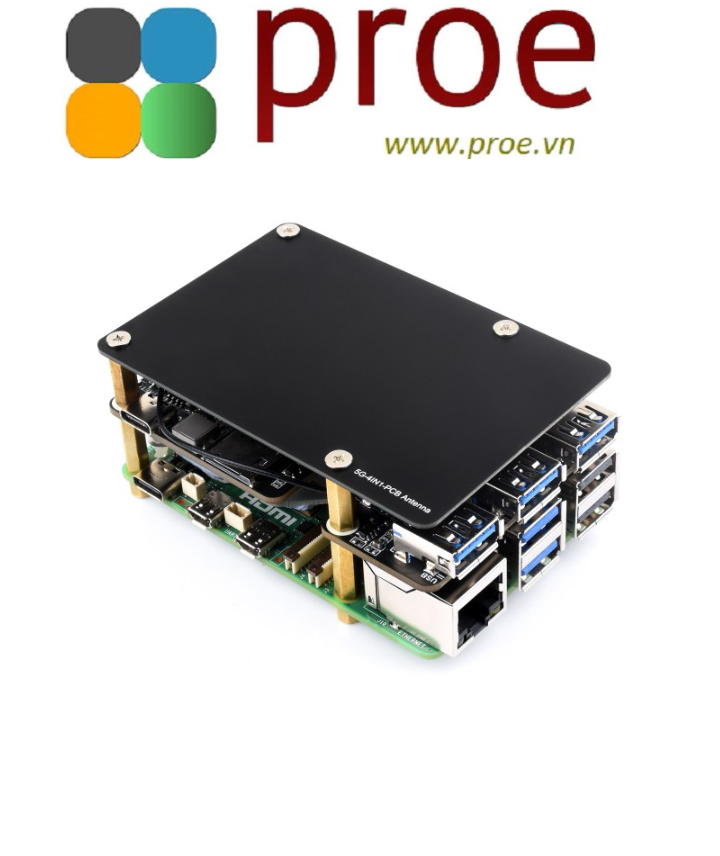

Comes With 5G-4IN1-PCB Antenna

Supports Top And Bottom Mounting, Easy To Install, Good Communication Effect

Install on the Bottom

Install on the Top

* for reference only, please refer to the Package Content for detailed part list

Onboard Power Monitoring Chip And EEPROM

For Real-Time Monitoring Voltage, Current And Power Of Module Via I2C
Supports Saving HAT+ ID And Product Information, Compatible With HAT+ Standard

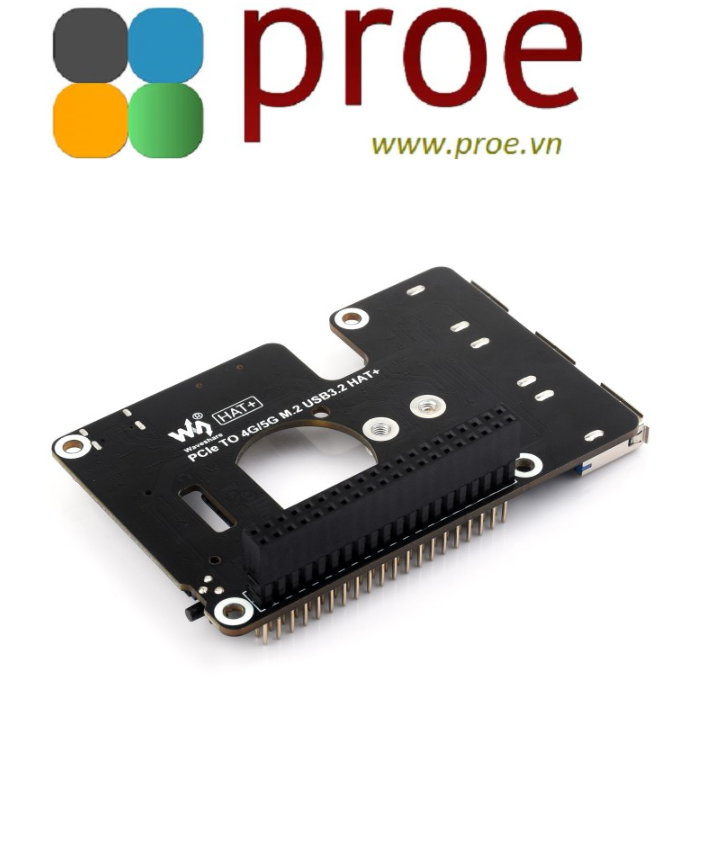

Reserved Airflow Vent For Cooling Fan

More Airflow For Pi5, Faster Cooling Effect, More Stable Operation

How To Install

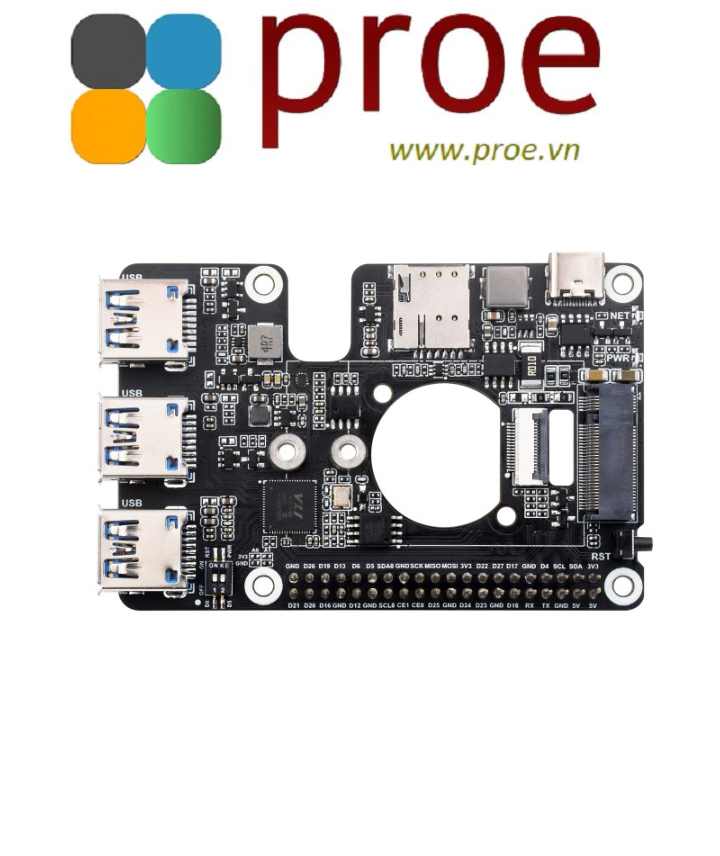

What's On Board

1. VL805
   PCIe to USB 3.2 Gen1 HUB chip
2. EEPROM
   for saving HAT ID and product information
3. INA219
   Power monitoring chip
4. 16PIN PCIe interface
   for connecting to the PCIe interface of Raspberry Pi 5
5. M.2(NGFF) Key B slot
   Compatible with 3042/3052 packages M.2 4G/5G modules
6. Raspberry Pi GPIO header
   for connecting Raspberry Pi 5
7. USB 3.2 Gen1 expanded ports
   USB1~USB3

8. Nano SIM card slot
   for installing Nano-SIM card
9. Type-C interface
   for 4G/5G networking of Raspberry Pi or PC via USB cable, firmware updating, or external power supply input
10. DIP switch
    for switching to use GPIO pins to control power on/off and reset of the module
11. Reset button
    Press it to reset the module
12. PWR indicator
    Power indicator
13. NET indicator
    Module Network status indicator

Pinout Definition

Application Scenarios

Industrial Routers, Home Gateways, Set Top Boxes, Industrial Laptops, Consumer Laptops, Industrial PDAs, Rugged Industrial PCs, And Digital Signage...

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_4G/5G_M.2_USB3.2_HAT+
