USB TO 4CH RS485/422

Industrial Isolated USB To RS485/422 Converter, Original FT4232HL Chip, Supports USB To 2-Ch RS485 + 2-Ch RS485/422, Wall-Mount & Rail-Mount Support

PACKAGE CONTENT

Weight: 0.23 kg

1. USB TO 4CH Serial Converter x1
2. Rail-mount buckle x1
3. USB Cable ~1.2m x1
4. Screwdriver x1

Industrial USB To 4-Ch RS485/422 Converter

USB To 4-Ch RS485 or USB To 2-Ch RS422 + 2-Ch RS485

FT4232HL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible

Features At A Glance

• Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
• Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices
• Supports USB to 2-ch isolated RS485/422 + 2-ch isolated RS485
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
• Fully automatic transceiver circuit with no delay, ensures fast and stable communication between the USB port and different interfaces, without interfering with each other
• 9 LEDs for indicating the power and transceiver status
• High quality USB-B connectors, smoothly plug/pull
• Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install

Specifications

Basic Function

Supports USB To 4-Ch Multi-Functional Serial Port, Convenient For Expanding Or Debugging Various Industrial Serial Port Devices; Supports USB To 2-Ch Isolated RS485/422 + 2-Ch Isolated RS485

Original Industrial Grade Chip

Onboard Original FT232RNL Chip,
Fast Communication, Stable & Reliable, Better Compatibility

Safer Isolated Design

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.

Multi System Support

Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

Aluminium Alloy Enclosure

Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation,
Solid And Durable; Wall-Mount & Rail-Mount Support, More Flexible For Industrial Installation

Pin Definition

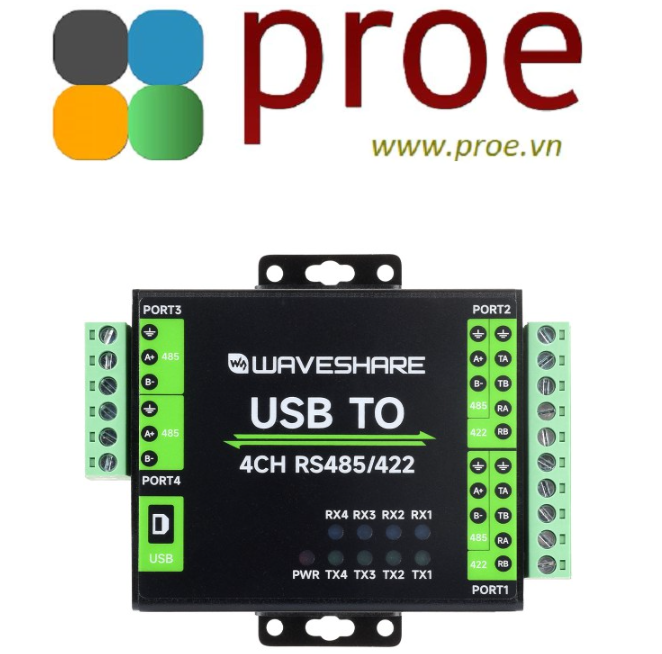

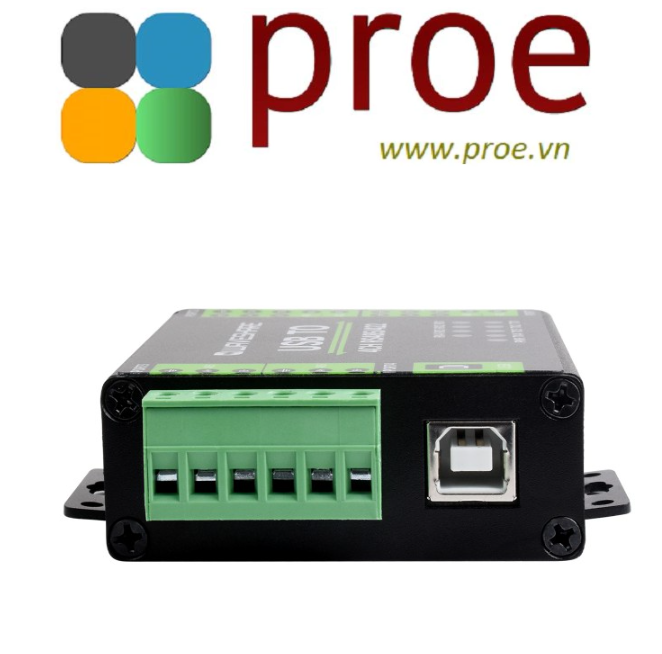

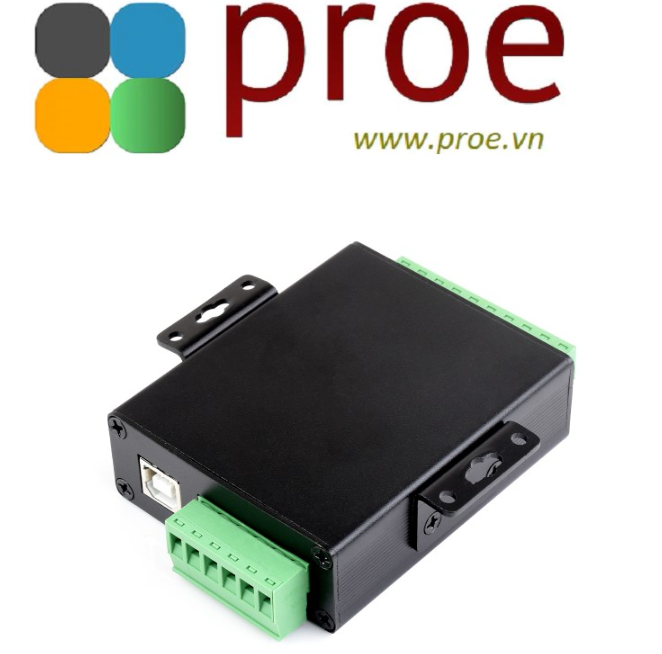

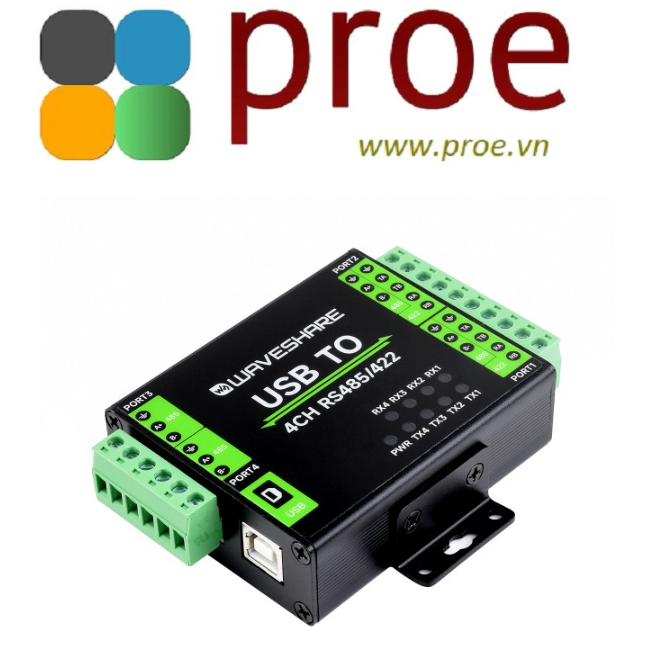

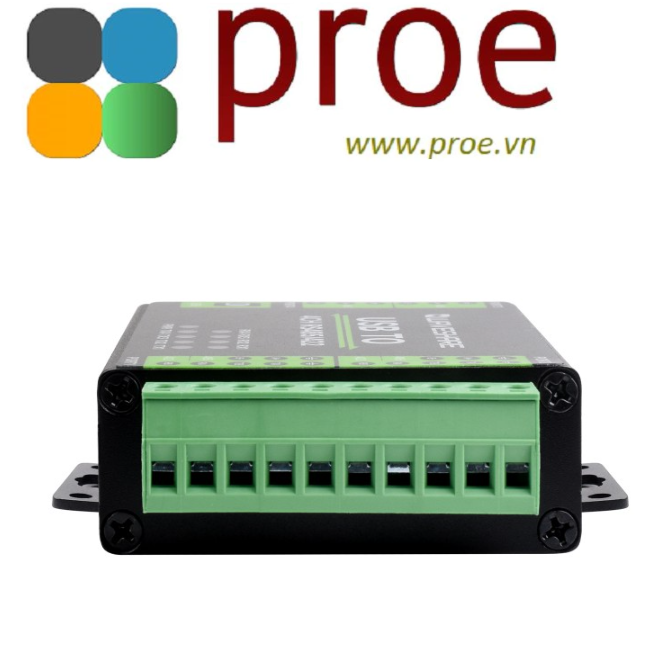

Product Show

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/USB_TO_4CH_RS485/422
