USB To UART/I2C/SPI/JTAG Converter, Supports Multiple Interfaces, Compatible with 3.3V and 5V

PACKAGE CONTENT

Weight: 0.17 kg

1. USB TO UART/I2C/SPI/JTAG x1
2. USB type A to type B cable ~1.2m x1
3. 12PIN cable ~20cm x1
4. 6PIN cable ~20cm (2PCS) x1

DESCRIPTION

USB To UART/I2C/SPI/JTAG Converter, Supports Multiple Interfaces, Compatible With 3.3V And 5V, Multiple Protection Circuits, Multiple Systems Support, Aluminum Alloy Case, Wall-Mount & Rail-Mount Support

USB TO UART/I2C/SPI/JTAG

Supports Multiple Interfaces | Compatible With 3.3V And 5V

Features At A Glance

• Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG
• Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control
• Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor
• Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times
• Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)
• Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility
• Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication
• Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
• High-quality USB-B and DC connectors, smooth plug & pull, durable and reliable, with anti-reverse protection

Specifications

Primary Function

Easy To Control And Debug Various Interface Devices Via PC, Supports USB To 2-Ch UART, Or USB To 1-Ch UART + 1-Ch I2C + 1-Ch SPI, Or USB To 1-Ch UART + 1-Ch JTAG

Multi System Support

Supports Win7/8/8.1/10/11, Linux, Etc.

Application Environments

Suitable For College Students, Technical Engineers, Electronic Enthusiasts, Or DIY Makers For Learning And Debugging

Supports Various Interfaces
Supports multiple communication debugging interfaces, most of which can be used at the same time

Small and compact, easy to install
Flexible installation, suitable for various devices

Reserved screw holes
Easy to mount, industrial metal case, rugged & durable

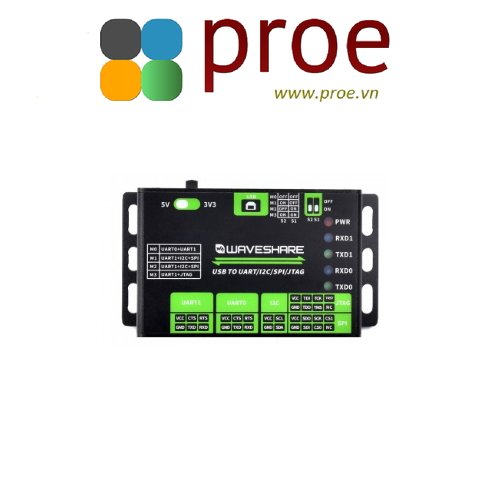

Interface And Mode Description

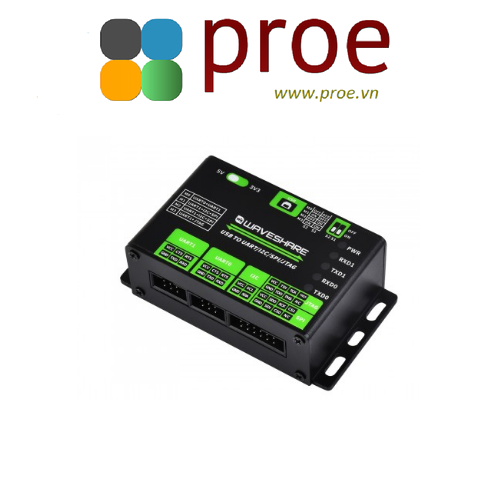

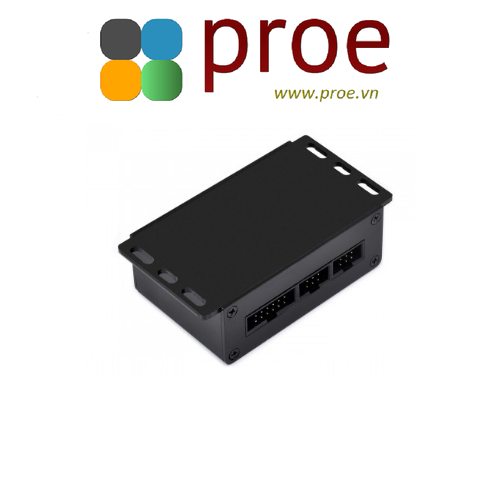

Product Show

Outline Dimensions

* The above dimensions are measured manually. there is about 1mm error.

WIKI: www.waveshare.com/wiki/USB_TO_RS232/485/422/TTL
